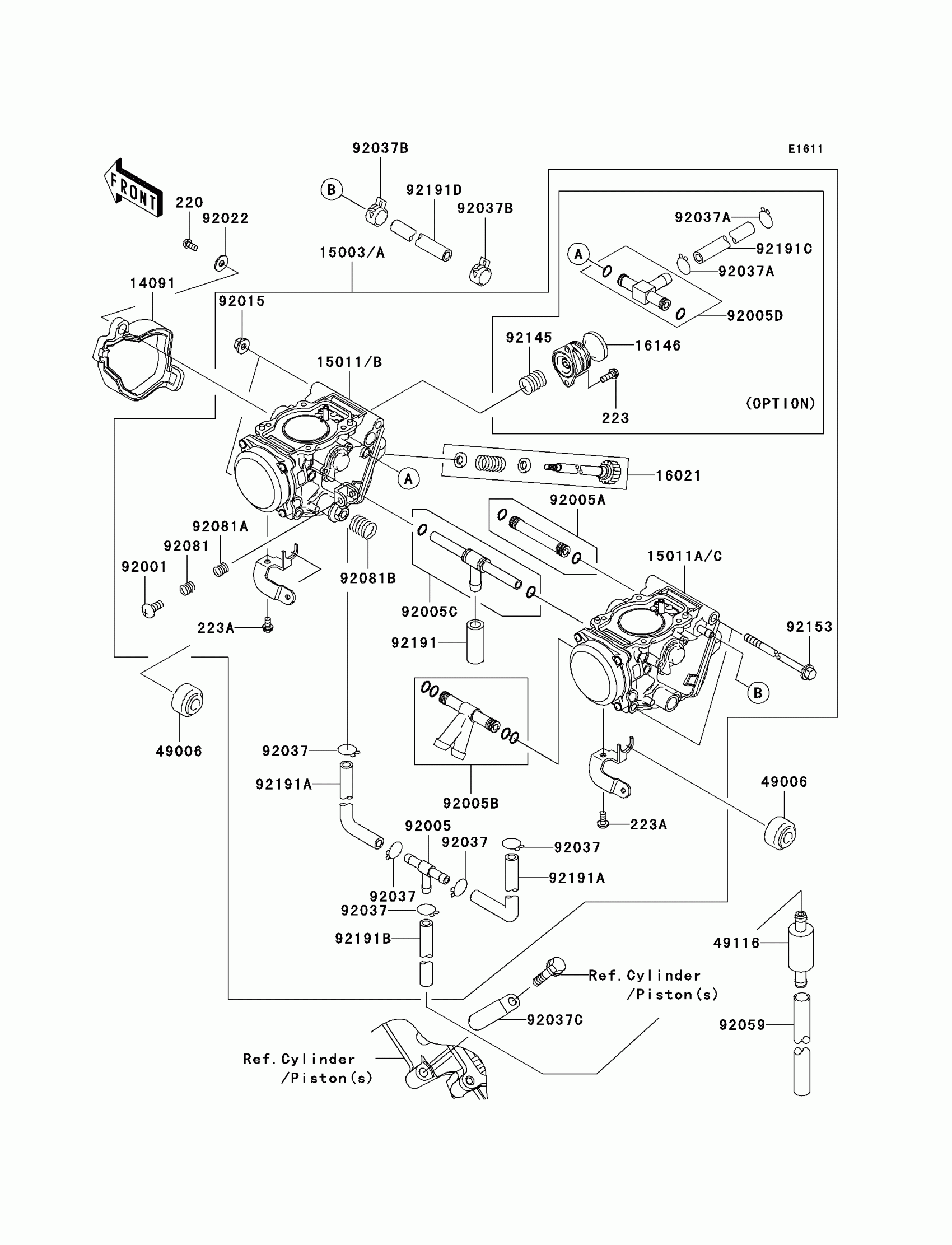

Kawasaki Prairie 700 4x4 Team Green Special Edition Carburetor(US) Diagram
#
92037A
CLAMP,TUBE
92037-1201
$4.60
14091
COVER,THROTTLE CABLE
14091-1196
$9.78
15003
CARBURETOR-ASSY,PRIMARY PUMP
15003-0007
$1,404.76
15003A
CARBURETOR-ASSY
15003-0092
$1,460.55
15011
CARBURETOR,FR
15011-0019
$724.68
15011A
CARBURETOR,RR
15011-0020
$724.68
15011B
CARBURETOR,FR
15011-0098
$830.37
15011C
CARBURETOR,RR
15011-0099
$727.51
16021
SCREW-THROTTLE STOP
16021-1238
$69.16
16146
COVER-ASSY,PRIMING
16146-1225
$51.90
49006
BOOT,STARTER CABLE
49006-1353
$3.97
49116
VALVE-ASSY
49116-1126
$20.77
92001
BOLT,THROTTLE ADJUST
92001-1998
$16.94
92005
FITTING,FUEL,T-TYPE
92005-1112
$14.10
92005A
FITTING
92005-1375
$24.28
92005B
FITTING
92005-1376
$22.70
92005C
FITTING
92005-1385
$35.49
92005D
FITTING
92005-1393
$9.78
92015
NUT,FLANGED,5MM
92015-1259
$3.92
92022
WASHER,5.2X13X1
92022-1380
$4.31
220
SCREW PAN HEAD 4X8
220B0408
$0.67
223
SCREW-PAN-WS-CROS
223C0412
$4.32
223A
SCREW-PAN-WS-CROS,4X8
223D0408
$1.28
92037
CLAMP,TUBE
92037-1201
$4.60
92037B
CLAMP,TUBE
92037-1505
$4.76
92037C
CLAMP,L=45
92037-1539
$5.00
92059
TUBE,7X10X100
92059-1736
$4.46
92081
SPRING
92081-1620
$4.96
92081A
SPRING,THROTTLE ADJUST LWR
92081-1621
$5.18
92081B
SPRING,THROTTLE ADJUST CNT
92081-1622
$10.67
92145
SPRING,PRIMING
92145-1451
$7.91
92153
BOLT,5X143
92153-1068
$8.01
92191
TUBE,7X11X25
92191-1672
$4.34
92191A
TUBE,4.5X8X65
92191-1673
$5.18
92191B
TUBE,4.5X8X420
92191-1674
$11.59
92191C
TUBE,4.5X8.5X35
92191-1676
$4.22
92191D
TUBE,5.3X10.3X200
92191-1694
$12.37
