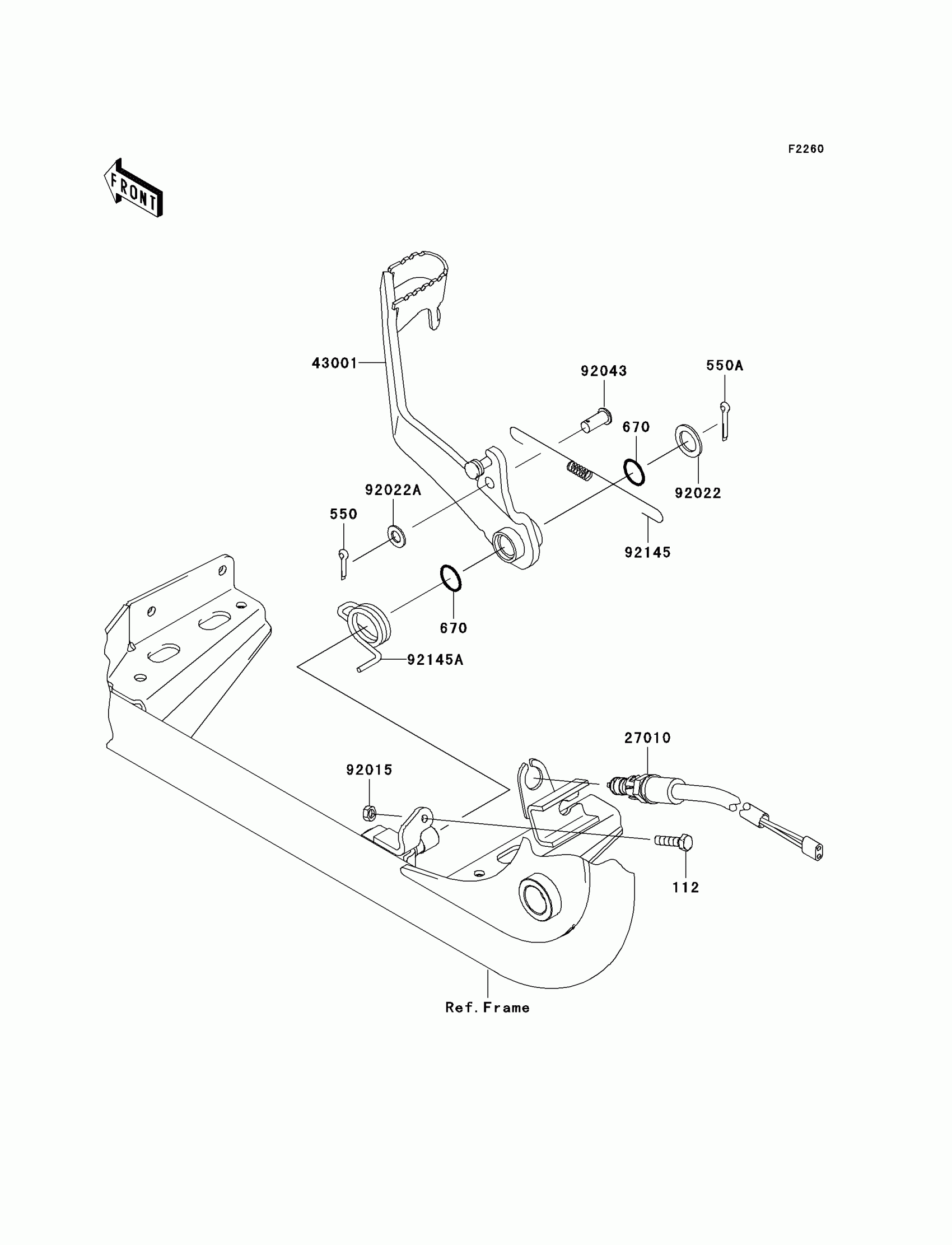

Kawasaki Prairie 700 4x4 Team Green Special Edition Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112D0622

$4.30

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,2.0X22

550D2022

$2.51

670

O RING,15MM

670B2015

$1.42

27010

SWITCH,BRAKE

27010-1494

$50.49

43001

LEVER-BRAKE,PEDAL

43001-0036

$64.10

92015

NUT,6MM

92015-1410

$3.92

92022

WASHER,15.5X24X1.6

92022-1049

$6.57

92022A

WASHER,8.5X16X1.2

92022-1582

$0.96

92043

PIN,8X16

92043-1013

$9.91

92145

SPRING,BRAKE SWITCH

92145-0056

$3.96

92145A

SPRING,BRAKE PEDAL RETURN

92145-1421

$5.43
