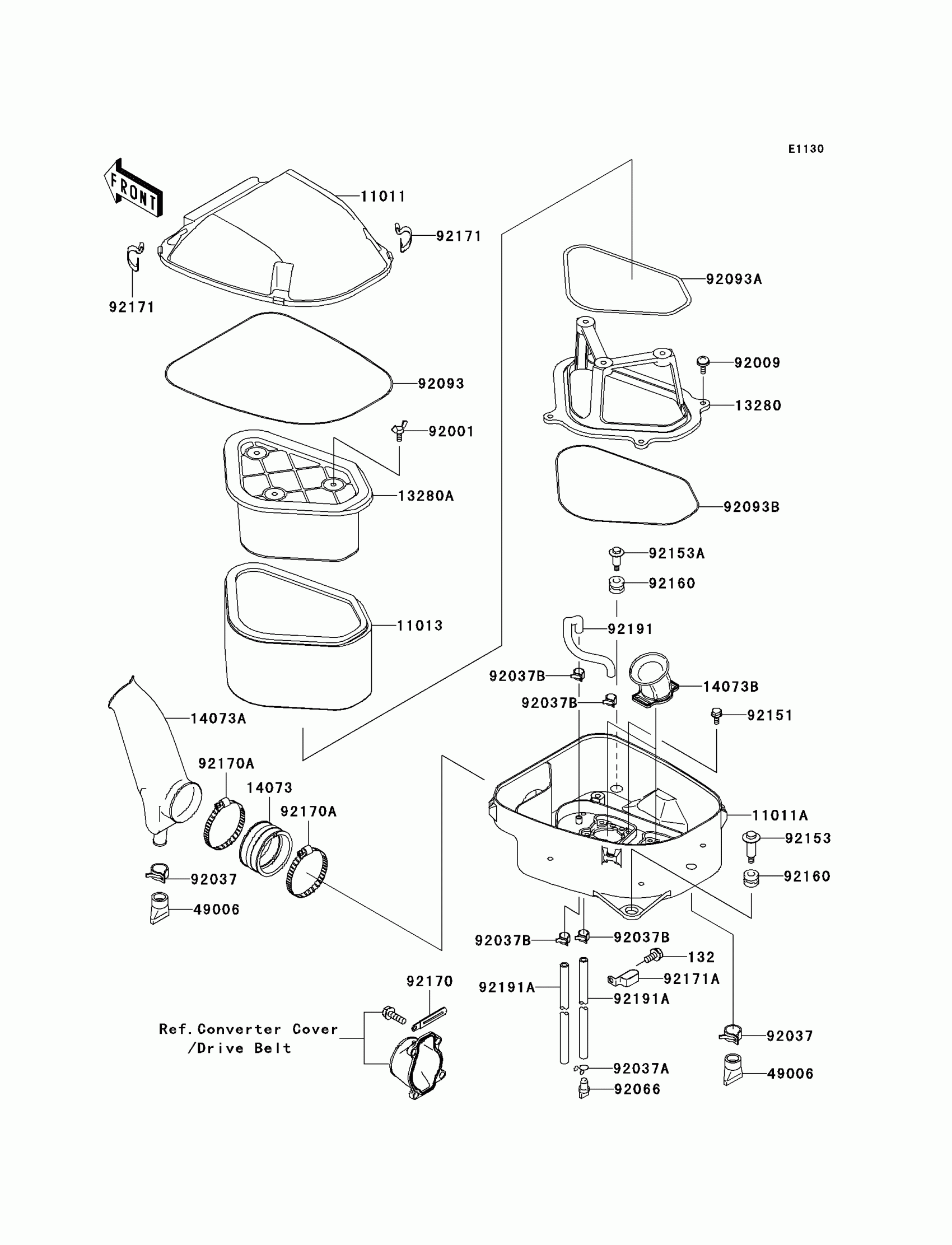

Kawasaki Prairie 700 4x4 Team Green Special Edition Air Cleaner Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X12
132Y0612
$1.92
11011
CASE-AIR FILTER,UPP
11011-0046
$31.68
11011A
CASE-AIR FILTER,LWR
11011-0047
$37.28
11013
ELEMENT-AIR FILTER
11013-0001
$56.37
13280
HOLDER
13280-0111
$17.71
13280A
HOLDER
13280-1272
$40.01
14073
DUCT,JOINT
14073-1775
$4.36
14073A
DUCT,INTAKE
14073-1778
$23.76
14073B
DUCT,AIR FANNEL
14073-1830
$10.09
49006
BOOT
49006-1292
$7.77
92001
BOLT,WING,6X15
92001-1703
$3.44
92009
SCREW,6X16
92009-1621
Unavailable
92037
CLAMP,HOSE CLIP
92037-1460
$10.81
92037A
CLAMP,TUBE
92037-147
$7.34
92037B
CLAMP,TUBE
92037-1505
$4.76
92066
PLUG,DRAIN
92066-1211
$8.51
92093
SEAL,AIR FILTER CASE
92093-1522
$8.24
92093A
SEAL,HOLDER-HOLDER
92093-1569
$10.15
92093B
SEAL
92093-1570
$8.24
92151
BOLT,FLANGED,5X12
92151-1305
$1.59
92153
BOLT,AIR FILTER,LH
92153-1051
$6.88
92153A
BOLT,FLANGED,6X28.7
92153-1052
$6.88
92160
DAMPER
92160-1594
$4.69
92170
CLAMP
92170-1514
$4.31
92170A
CLAMP
92170-1764
$11.48
92171
CLAMP,AIR FILTER CASE
92171-1394
$4.38
92171A
CLAMP,AIR VENT
92171-1522
$6.88
92191
TUBE,7X11X210
92191-1494
$4.34
92191A
TUBE,7X11X470
92191-1531
$7.22
