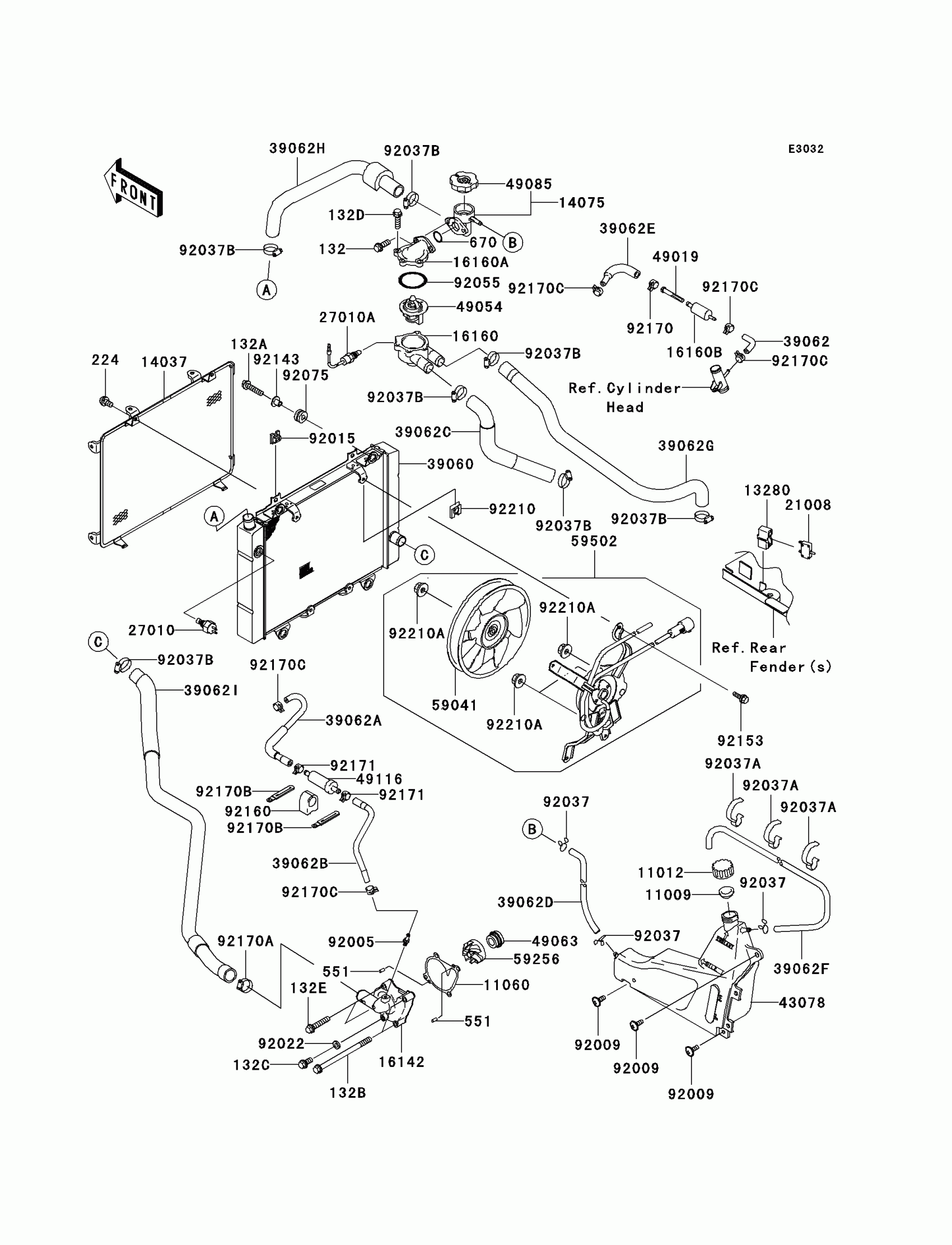

Kawasaki Prairie 700 4x4 Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,WATER PUMP
11060-1964
$7.58
13280
HOLDER,BREAKER
13280-0082
$5.60
14037
SCREEN,RADIATOR
14037-1283
$79.64
14075
CAP-ASSY,PRESSURE
14075-1105
$168.92
16142
COVER-PUMP,WATER
16142-0002
$83.83
16160
BODY,THERMOSTAT,LWR
16160-1112
$74.17
16160A
BODY,THERMOSTAT,UPP
16160-1113
$63.84
16160B
BODY
16160-1359
$9.43
21008
BREAKER,FAN MOTOR
21008-0001
$26.03
27010
SWITCH,FAN
27010-1202
$98.81
27010A
SWITCH,SENSOR WATER
27010-1346
$120.07
39060
RADIATOR
39060-0011
$899.84
39062
HOSE-COOLING,HEAD-FILTER
39062-1816
$5.47
39062A
HOSE-COOLING,CARB-VALVE
39062-1817
Unavailable
39062B
HOSE-COOLING,VALVE-WATER PUMP
39062-1818
Unavailable
39062C
HOSE-COOLING,HEAD,FR-THERMO
39062-1820
$17.26
39062D
HOSE-COOLING,THERMO-RESERV
39062-1823
$8.77
39062E
HOSE-COOLING,FILTER-CARB
39062-1858
$7.91
39062F
HOSE-COOLING,5.5X10.5X1030
39062-1872
$12.02
39062G
HOSE-COOLING,HEAD,RR-THERMO
39062-1874
$27.86
39062H
HOSE-COOLING,THERMO-RADIATOR
39062-1875
$41.44
39062I
HOSE-COOLING,RADIATOR-PUMP
39062-1893
Unavailable
43078
RESERVOIR
43078-1171
Unavailable
49019
FILTER-WATER
49019-1068
$5.13
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-1067
$53.94
49116
VALVE-ASSY
49116-1190
$70.71
59041
FAN
59041-1062
$52.38
59256
IMPELLER
59256-1069
$21.38
59502
FAN-ASSY
59502-0012
$608.60
92005
FITTING,BLEED PIPE
92005-1337
$23.31
92009
SCREW,6X16
92009-1621
Unavailable
92015
NUT
92015-1487
$4.80
92022
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,HOSE
92037-1552
$9.97
92037B
CLAMP,COOLING HOSE
92037-1589
$18.57
132
BOLT-FLANGED-SMALL
132H0616
$1.47
132A
BOLT-FLANGED-SMALL,6X25
132H0625
Unavailable
132B
BOLT-FLANGED-SMALL,6X90
132J0690
$5.55
132C
BOLT-FLANGED-SMALL,6X12
132Y0612
$1.92
132D
BOLT-FLANGED-SMALL,6X20
132Y0620
$3.84
132E
BOLT-FLANGED-SMALL,6X30
132Y0630
$3.41
224
SCREW-PAN-WP-CROS,6X12
224C0612
$4.15
551
PIN-DOWEL,4X8
551A0408
$0.78
670
O RING,20MM
670B2020
$1.22
92055
RING-O,44.7X2.4
92055-1279
$7.34
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92143
COLLAR
92143-1353
$8.58
92153
BOLT
92153-0531
$2.61
92160
DAMPER,VALVE
92160-1451
$10.76
92170
CLAMP
92170-1491
$7.45
92170A
CLAMP
92170-1497
$16.83
92170B
CLAMP
92170-1514
$4.31
92170C
CLAMP
92170-2042
$1.30
92171
CLAMP
92171-0515
$6.38
92210
NUT
92210-1323
$4.18
92210A
NUT
92210-1396
$3.43
