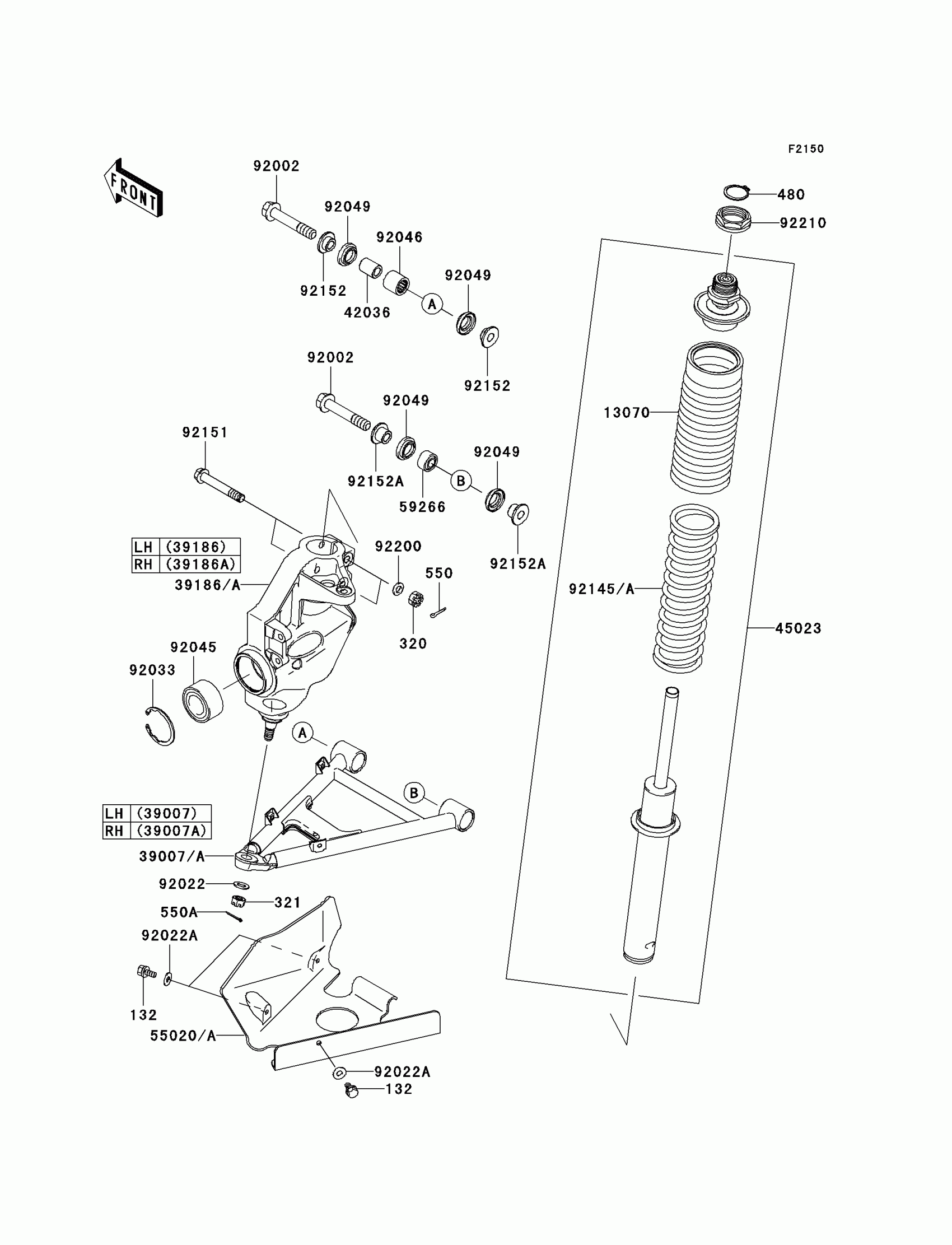

Kawasaki Prairie 700 4x4 Hardwoods Green HD Suspension Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
320
NUT-CASTLE
320H1000
$7.88
321
NUT-CASTLE,12MM
321H1200
$6.61
480
CIRCLIP-TYPE-C,32MM
480J3200
$1.77
550
PIN COTTER 2.0X15
550D2015
$1.04
550A
PIN-COTTER,3.0X25
550D3025
$0.58
13070
GUIDE,STRUT
13070-1383
$33.95
39007
ARM-SUSP,LH
39007-0058
$87.50
39007A
ARM-SUSP,RH
39007-0059
$87.50
39186
KNUCKLE ASSY,FR,LH
39186-0041
$264.30
39186A
KNUCKLE ASSY,FR,RH
39186-0042
$264.30
42036
SLEEVE,12X20X26.7
42036-1365
$15.43
45023
STRUT
45023-1014
$478.32
55020
GUARD,FRONT AXLE,LH
55020-1768
$13.93
55020A
GUARD,FRONT AXLE,RH
55020-1769
$13.93
59266
JOINT-BALL
59266-1118
$71.27
92002
BOLT,FLANGED,12X67
92002-1861
$11.16
92022
WASHER,12.3X22X1.6
92022-1065
$3.96
92022A
WASHER,7X16X1.2
92022-1344
$3.92
92033
RING-SNAP,55MM
92033-1274
$9.43
92045
BEARING-BALL,30BWD08A
92045-1448
$93.57
92046
BEARING-NEEDLE,TA202725ZE
92046-1290
$20.33
92049
SEAL-OIL,MF020N3
92049-1539
$8.74
92145
SPRING,STRUT,K=10.8N/MM
92145-0009
$131.84
92145A
SPRING,STRUT,K=9.81N/MM
92145-1445
$230.49
92151
BOLT,FLANGED,10X65
92151-1709
$11.69
92152
COLLAR
92152-1295
$10.99
92152A
COLLAR
92152-1296
$14.26
92200
WASHER,10.5X19X2.3
92200-1042
$3.92
92210
NUT,FLANGED,35MM
92210-1226
$18.52
