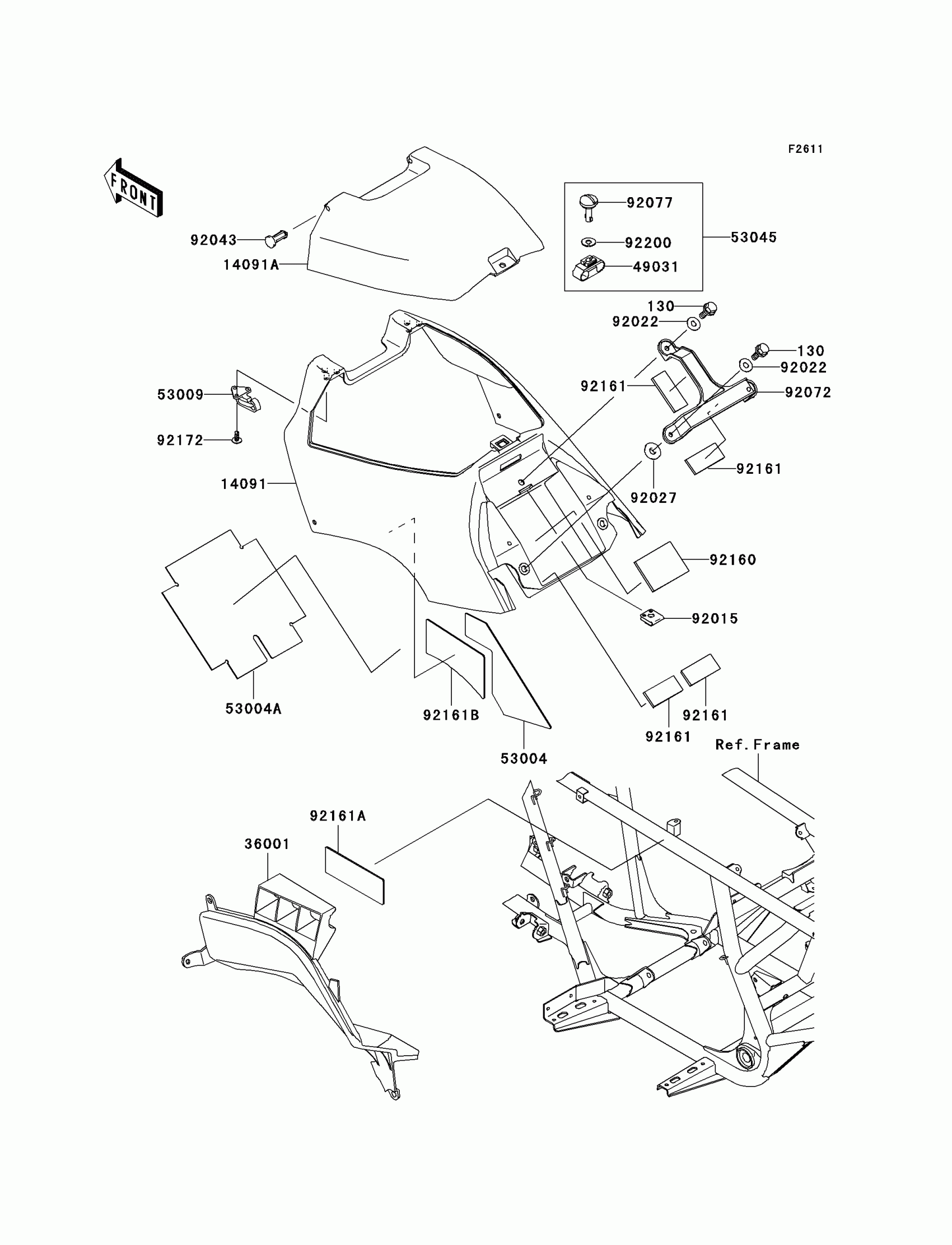

Kawasaki Prairie 700 4x4 Hardwoods Green HD Side Covers Diagram

Description

Price

130

BOLT-FLANGED,6X18

130J0618

Unavailable

14091

COVER,FUEL TANK,C.H.GREEN

14091-1558-374

$58.49

14091A

COVER,FUEL TANK,UPP,C.H.GREEN

14091-1559-374

Unavailable

36001

COVER-SIDE

36001-1647

$30.83

49031

LATCH

49031-1060

Unavailable

53004

MAT,FUEL TANK COVER

53004-1148

$19.25

53004A

MAT,BATTERY CASE

53004-1172

$36.30

53009

HINGE,FUEL TANK COVER,FR

53009-1110

$6.76

53045

HOOK-ASSY,FUEL TANK COVER,RR

53045-1070

$7.28

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92027

COLLAR,L=4.7

92027-1964

$5.61

92043

PIN,HINGE

92043-1623

$2.27

92072

BAND,BATTERY

92072-1406

$5.29

92077

KNOB

92077-1129

$3.75

92160

DAMPER,BATTERY

92160-1897

$5.42

92161

DAMPER,30X70X5

92161-1127

$5.84

92161A

DAMPER,SIDE COVER

92161-1201

$10.14

92161B

DAMPER,FUEL TANK COVER

92161-1202

$14.22

92172

SCREW,TAPPING,5X10

92172-1061

Unavailable

92200

WASHER

92200-1578

Unavailable
