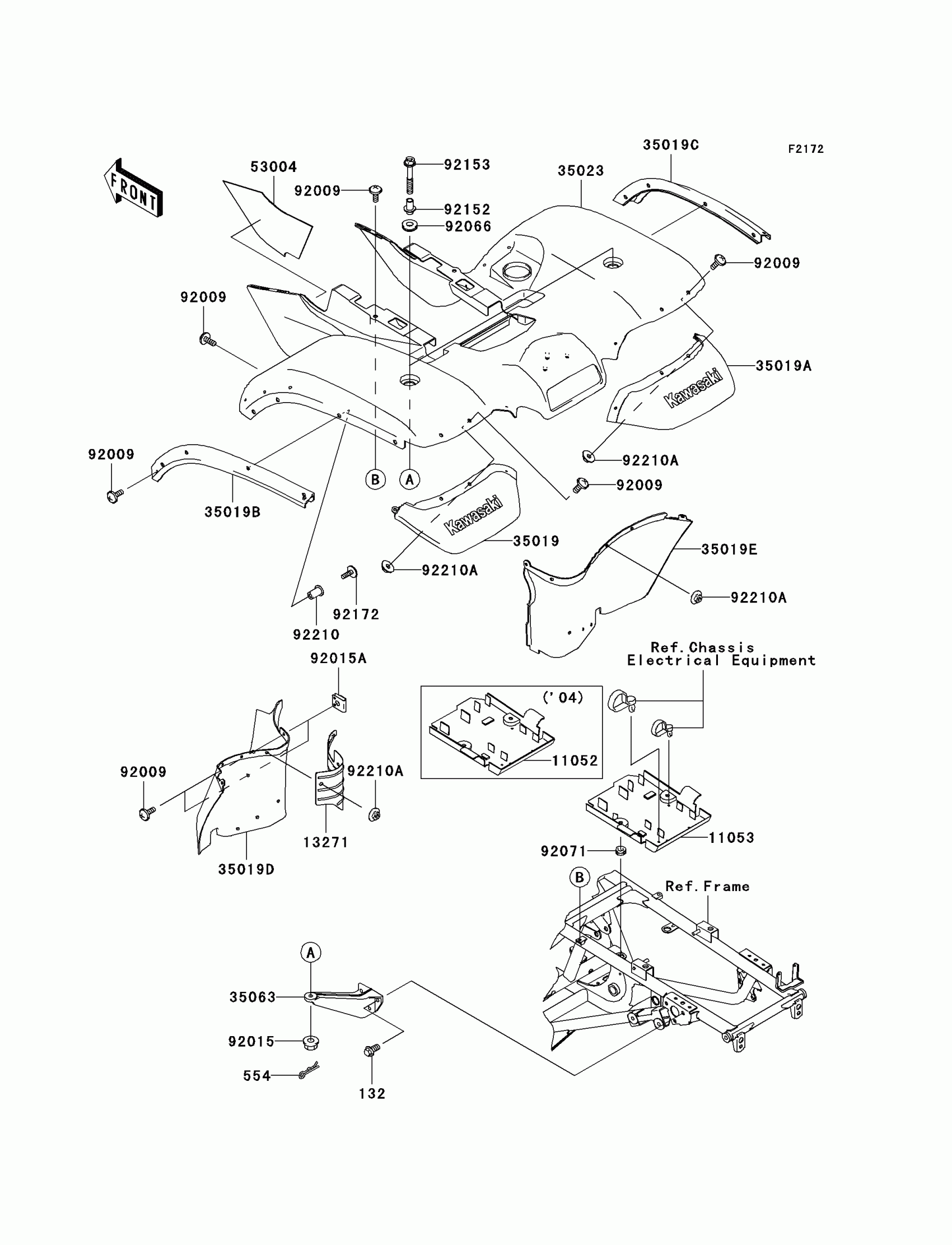

Kawasaki Prairie 700 4x4 Hardwoods Green HD Rear Fender(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X18

132J0818

$2.52

554

PIN-SNAP,8MM

554A0800

$1.26

11053

BRACKET,ELECTRIC

11053-1308

$15.62

13271

PLATE,HEAT GUARD

13271-1718

$34.34

35019

FLAP,RR,RR,LH,F.BLACK

35019-1371-6Z

$24.25

35019A

FLAP,RR,RR,RH,F.BLACK

35019-1372-6Z

$24.25

35019B

FLAP,RR,SIDE,LH,F.BLACK

35019-1373-6Z

$25.79

35019C

FLAP,RR,SIDE,RH,F.BLACK

35019-1374-6Z

$25.79

35019D

FLAP,RR,FR,LH,F.BLACK

35019-1393-6Z

$37.86

35019E

FLAP,RR,FR,RH,F.BLACK

35019-1394-6Z

$37.86

35023

FENDER-REAR,C.H.GREEN

35023-1606-374

$263.97

35063

STAY,RR FENDER

35063-1100

$146.57

53004

MAT,RR FENDER

53004-1170

$35.68

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,8MM

92015-1397

$4.31

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92066

PLUG

92066-1438

$5.17

92071

GROMMET

92071-1131

$7.77

92152

COLLAR,L=38.5

92152-0098

$11.69

92153

BOLT,FLANGED,8X68

92153-0326

$6.45

92172

SCREW,5X18

92172-1063

$3.16

92210

NUT,POP,5MM

92210-0012

$3.09

92210A

NUT,6MM

92210-1368

$2.52
