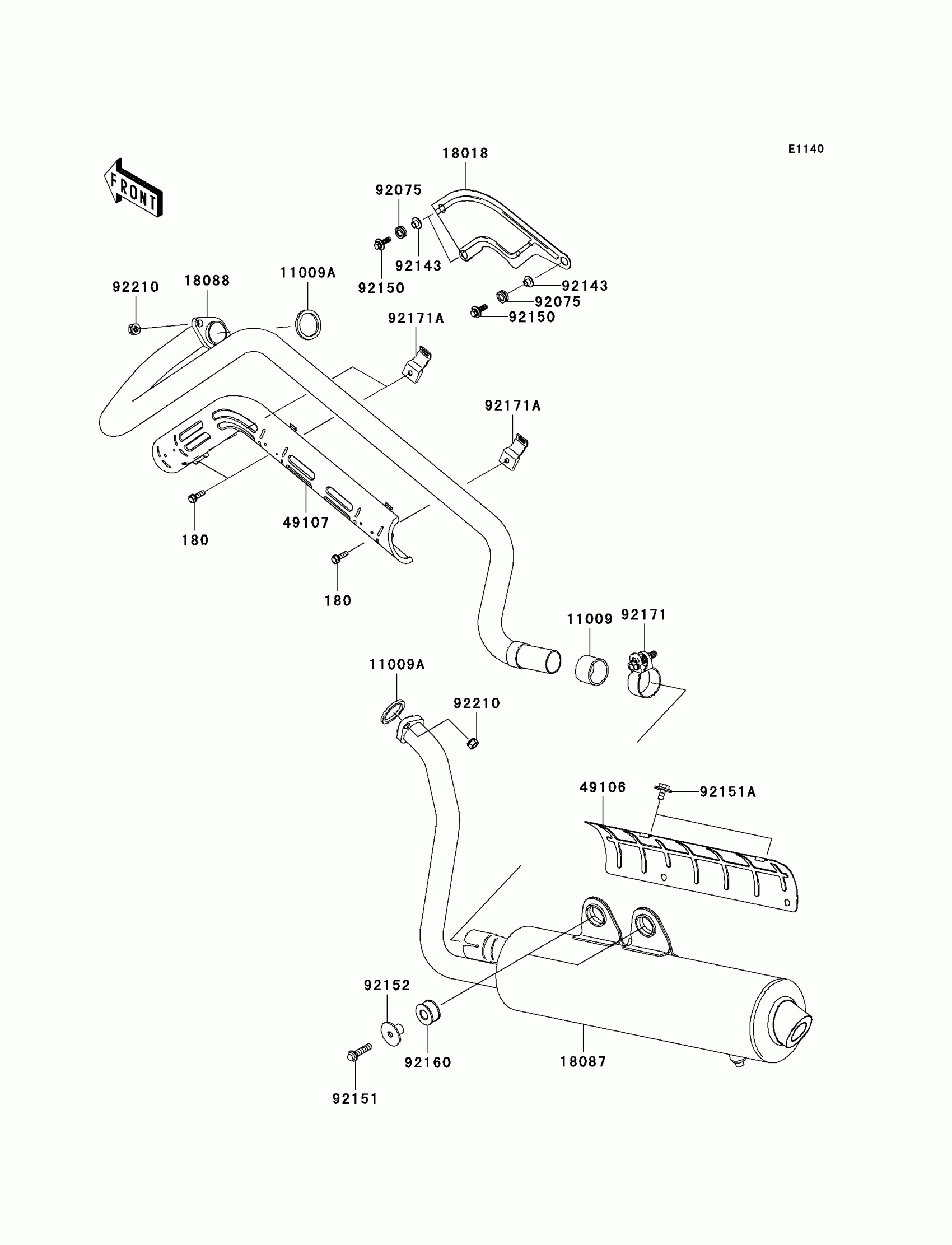

Kawasaki Prairie 700 4x4 Hardwoods Green HD Muffler(s) Diagram

Description

Price

180

BOLT-UPSET-WS,6X20

180Y0620

$2.42

11009

GASKET,MUFFLER CONNECTING

11009-1865

Unavailable

11009A

GASKET,EXHAUST HOLDER

11009-1894

$8.03

18018

PLATE-HEAT GUARD

18018-1134

$11.58

18087

MUFFLER

18087-0077

Unavailable

18088

PIPE-EXHAUST

18088-1140

$245.24

49106

COVER-MUFFLER

49106-1291

$11.25

49107

COVER-EXHAUST PIPE

49107-1210

$52.31

92075

DAMPER

92075-1947

$7.33

92143

COLLAR

92143-1057

$5.00

92150

BOLT,FLANGED,6X20

92150-1633

$3.92

92151

BOLT,8X32

92151-1446

$3.49

92151A

BOLT,UPSET-WP,6X12

92151-1944

$4.90

92152

COLLAR,MUFFLER

92152-1152

$7.98

92160

DAMPER,MUFFLER

92160-1990

$5.24

92171

CLAMP

92171-1330

$22.35

92171A

CLAMP

92171-1357

$8.01

92210

NUT,8MM

92210-1242

$2.41
