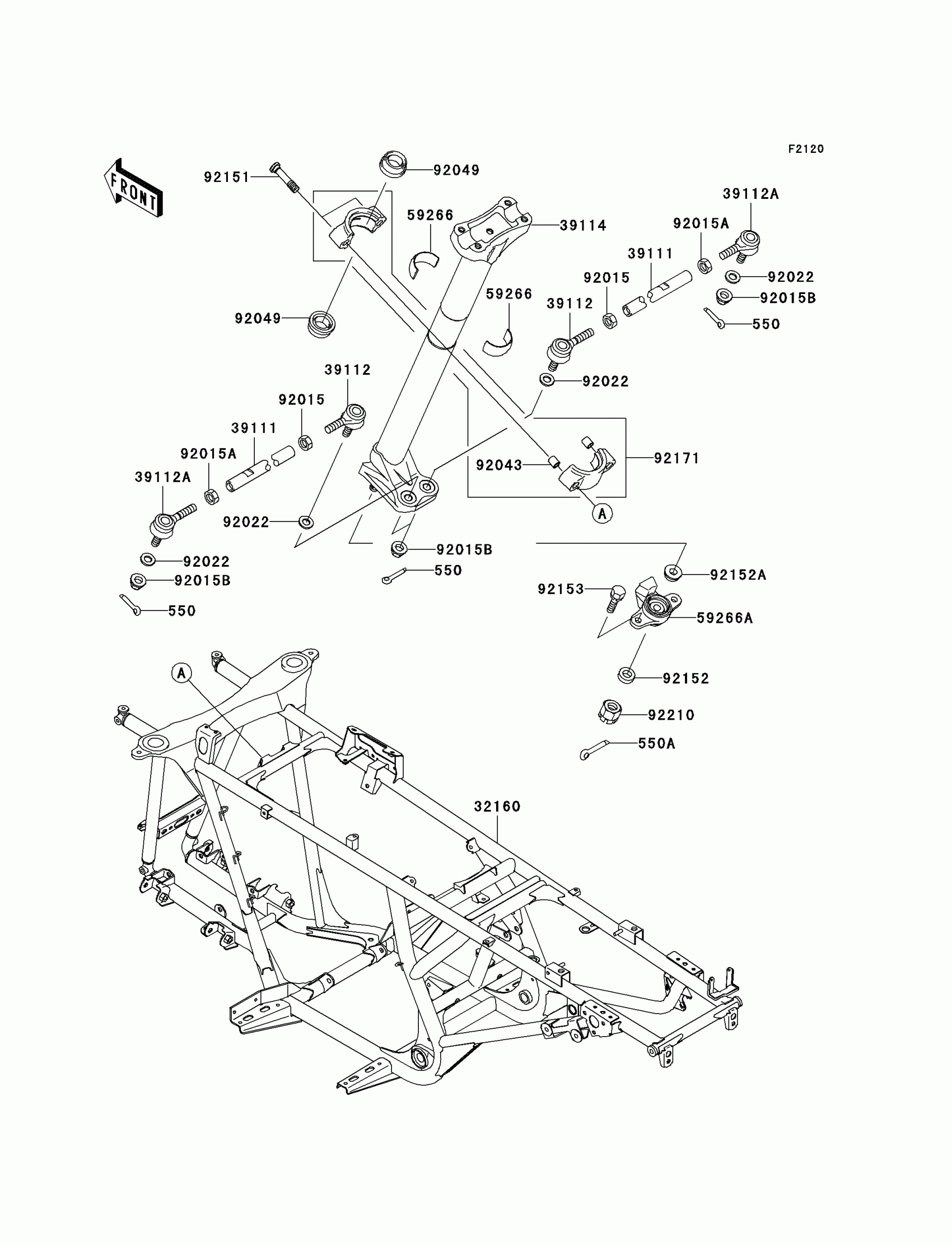

Kawasaki Prairie 700 4x4 Hardwoods Green HD Frame Diagram

Description

Price

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,3.0X25

550D3025

Unavailable

32160

FRAME-COMP

32160-0002

$1,008.29

39111

ROD-TIE

39111-1090

$32.98

39112

RODEND-TIE

39112-1083

$92.31

39112A

RODEND-TIE

39112-1085

$50.81

39114

SHAFT-COMP-STRG

39114-1090

$251.16

59266

JOINT-BALL

59266-1117

Unavailable

59266A

JOINT-BALL

59266-1125

$143.42

92015

NUT,LOCK,10MM

92015-1460

$5.66

92015A

NUT,LOCK,10MM

92015-1494

$5.42

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92022

WASHER,10.2X20X1.5

92022-3742

$3.19

92043

PIN,8.2X10X14

92043-1264

$0.51

92049

SEAL-OIL,SR7 39.6X49X6-2 NS

92049-1580

$11.92

92151

BOLT,8X53

92151-1711

$9.10

92152

COLLAR,12X21.3X7

92152-1351

$12.24

92152A

COLLAR

92152-1358

$11.25

92153

BOLT,8X30

92153-1065

$2.37

92171

CLAMP,STEERING SHAFT

92171-1449

$62.57

92210

NUT,12MM

92210-7501

$2.84
