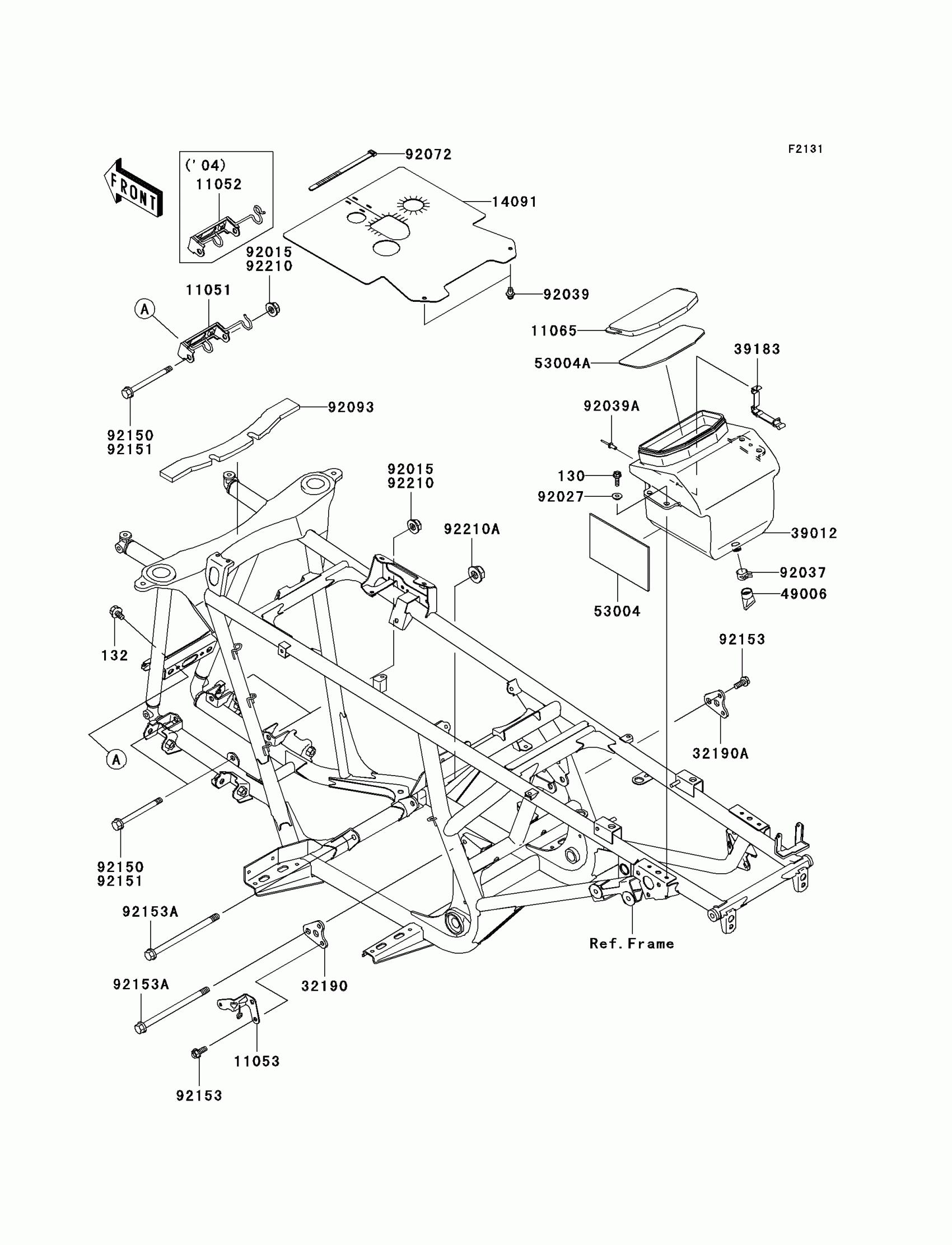

Kawasaki Prairie 700 4x4 Hardwoods Green HD Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,6X20

130G0620

Unavailable

132

BOLT-FLANGED-SMALL,8X14

132J0814

Unavailable

11051

BRACKET,FRONT DIFF

11051-1929

$30.58

11053

BRACKET,RESERVOIR TANK

11053-0481

$12.53

11065

CAP,STORAGE CASE

11065-1154

Unavailable

14091

COVER,FR,UPP

14091-1347

$18.88

32190

BRACKET-ENGINE,RR,UPP,LH

32190-0045

$4.61

32190A

BRACKET-ENGINE,RR,UPP,RH

32190-0046

$8.53

39012

CASE-STORAGE

39012-1064

$46.75

39183

BAND-ASSY,TOOL BAG

39183-1065

$9.17

49006

BOOT

49006-1292

$5.93

53004

MAT,STORAGE CASE

53004-1139

$17.17

53004A

MAT,STORAGE CASE CAP

53004-1147

$7.98

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92027

COLLAR

92027-1936

$4.86

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92039

RIVET

92039-1229

$0.68

92039A

RIVET,4.8MM

92039-3719

$5.42

92072

BAND,L=123

92072-030

$3.81

92093

SEAL

92093-1555

$10.49

92150

BOLT,FLANGED,10X120

92150-1642

$16.78

92153

BOLT,FLANGED,8X20

92153-0948

$2.15

92153A

BOLT,FLANGED,12X190

92153-1272

$16.24

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$4.67
