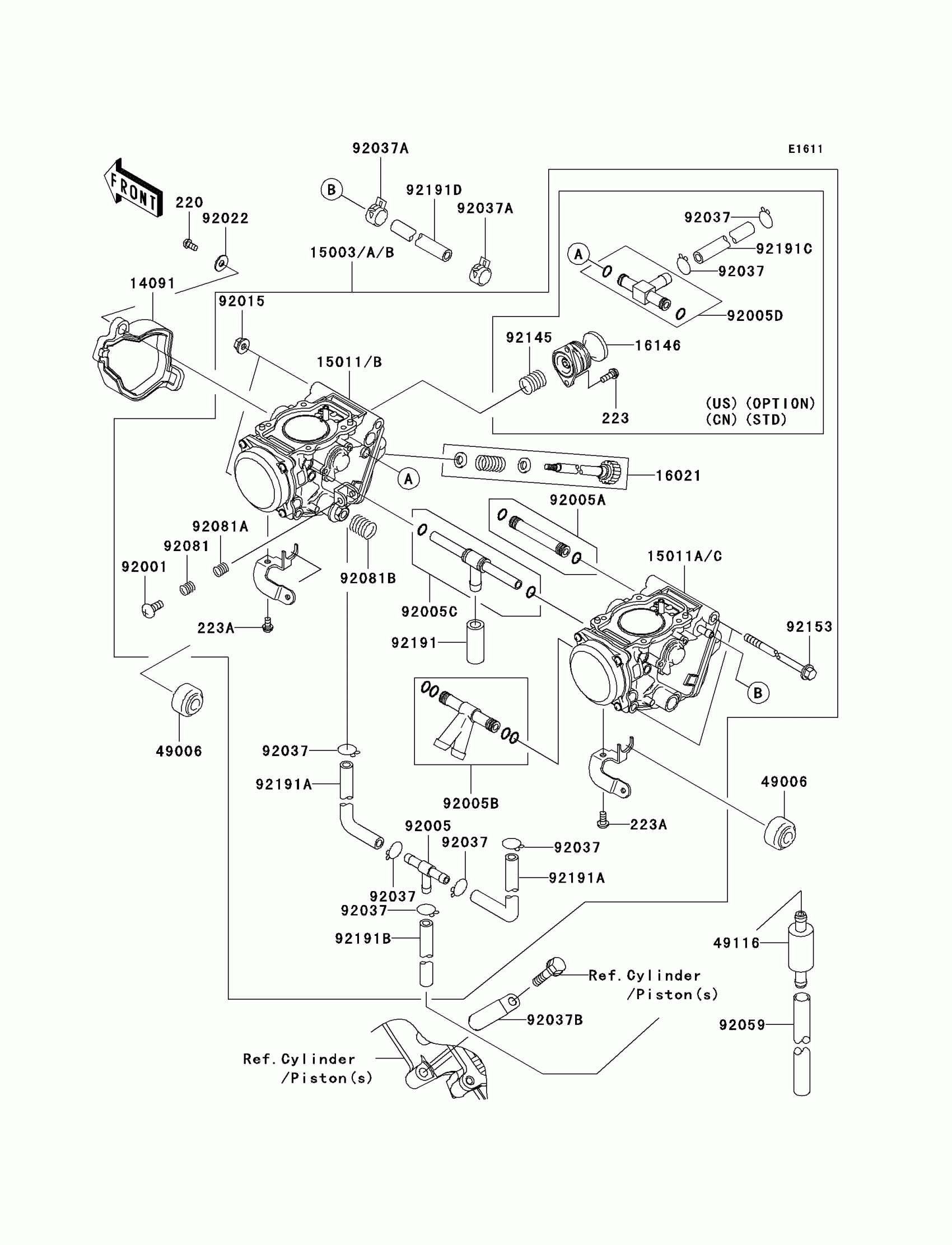

Kawasaki Prairie 700 4x4 Hardwoods Green HD Carburetor Diagram

#

Description
Price

14091

COVER,THROTTLE CABLE

14091-1196

$7.45

15003B

CARBURETOR-ASSY,PRIMARY PUMP

15003-0007

$1,441.48

16021

SCREW-THROTTLE STOP

16021-1238

$70.48

49006

BOOT,STARTER CABLE

49006-1353

$3.04

49116

VALVE-ASSY

49116-1126

$16.82

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92005

FITTING,FUEL,T-TYPE

92005-1112

$10.71

92005A

FITTING

92005-1375

$19.71

92005B

FITTING

92005-1376

$18.32

92005C

FITTING

92005-1385

$31.74

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92022

WASHER,5.2X13X1

92022-1380

$3.29

92037A

CLAMP,TUBE

92037-1505

$3.63

92037B

CLAMP,L=45

92037-1539

$4.42

92059

TUBE,7X10X100

92059-1736

$3.40

92081

SPRING

92081-1620

$3.78

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$3.95

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.27

92153

BOLT,5X143

92153-1068

$7.86

92191

TUBE,7X11X25

92191-1672

$3.88

92191A

TUBE,4.5X8X65

92191-1673

$3.95

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

223A

SCREW-PAN-WS-CROS,4X8

223D0408

$1.00

92191B

TUBE,4.5X8X420

92191-1674

$11.10

92191D

TUBE,5.3X10.3X200

92191-1694

$11.83

15003

CARBURETOR-ASSY

15003-0006

$1,355.24

15003A

CARBURETOR-ASSY,PRIMARY PUMP

15003-0007

$1,441.48

15011

CARBURETOR,FR

15011-0017

Unavailable

15011A

CARBURETOR,RR

15011-0018

Unavailable

15011B

CARBURETOR,FR

15011-0019

$741.27

15011C

CARBURETOR,RR

15011-0020

$741.27

16146

COVER-ASSY,PRIMING

16146-1225

$52.90

92005D

FITTING

92005-1393

$9.46

92037

CLAMP,TUBE

92037-1201

$3.51

92037

CLAMP,TUBE

92037-1201

$3.51

92145

SPRING,PRIMING

92145-1451

$7.76

223

SCREW-PAN-WS-CROS

223C0412

$3.29

92191C

TUBE,4.5X8.5X35

92191-1676

$3.78
