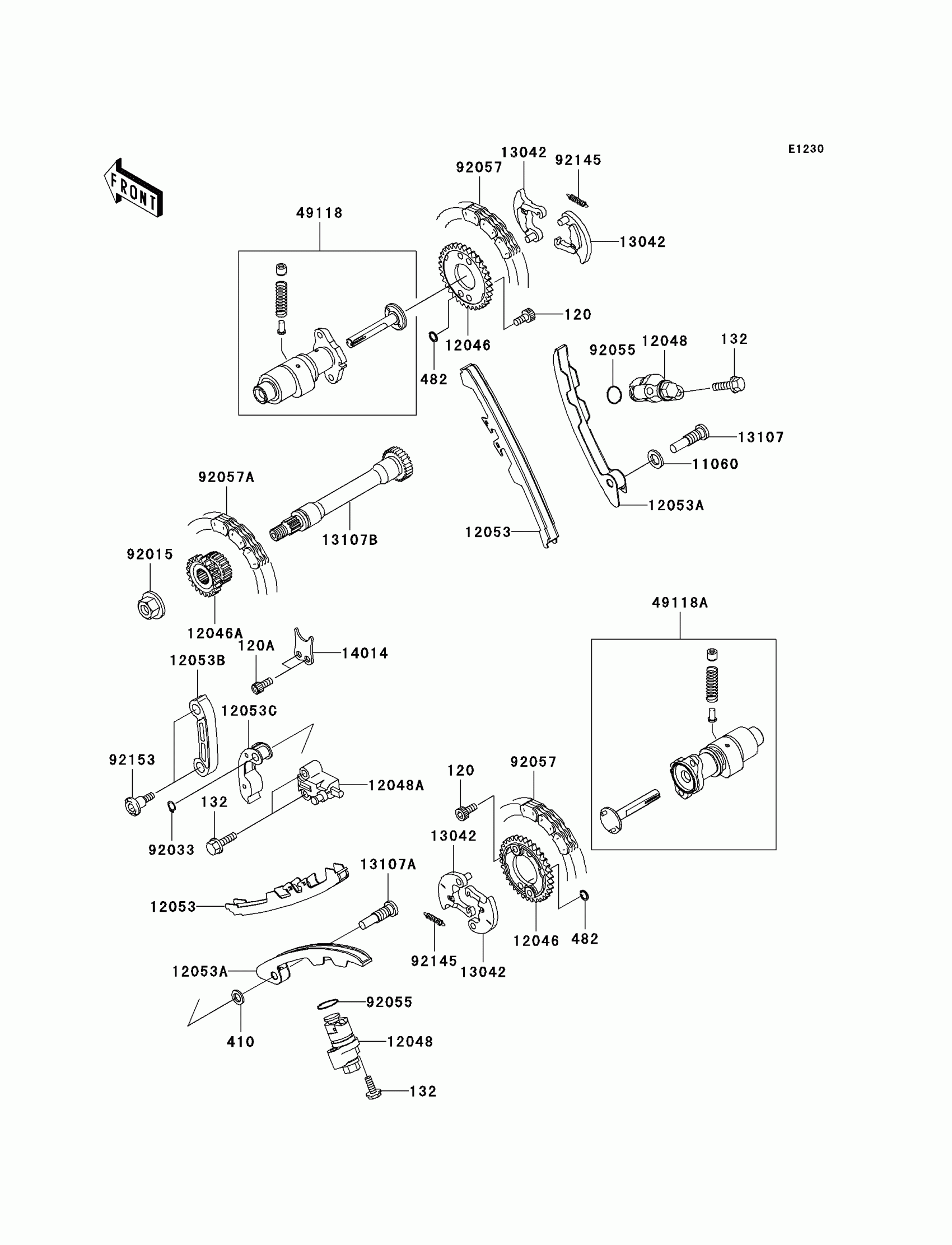

Kawasaki Prairie 700 4x4 Hardwoods Green HD Camshaft(s)/Tensioner(B1) Diagram
#
Description
Price
120
BOLT-SOCKET,6X10
120P0610
$1.60
120A
BOLT-SOCKET,6X14
120S0614
$3.84
132
BOLT-FLANGED-SMALL,6X30
132Y0630
$3.41
410
WASHER PLAIN 8MM
410B0800
$0.93
482
CIRCLIP-TYPE-E,5MM
482J5000
$3.41
11060
GASKET
11060-1966
$2.24
12046
SPROCKET,CAMSHAFT,34T
12046-1203
$60.55
12046A
SPROCKET,2ND SHAFT,21T&17T
12046-1207
$73.59
12048
TENSIONER-ASSY,CAM
12048-1176
$139.76
12048A
TENSIONER-ASSY,SECONDARY
12048-1177
$139.76
12053
GUIDE-CHAIN,CAMSHAFT,TENSION
12053-1441
$54.31
12053A
GUIDE-CHAIN,CAMSHAFT,SLACK
12053-1442
$57.43
12053B
GUIDE-CHAIN,TENSION
12053-1443
$27.26
12053C
GUIDE-CHAIN,SLACK
12053-1444
$49.52
13042
WEIGHT,DECOMP
13042-1141
$44.00
13107
SHAFT,CHAIN GUIDE,FR
13107-1443
$10.90
13107A
SHAFT,CHAIN GUIDE,RR
13107-1444
$12.92
13107B
SHAFT,SECONDARY
13107-1514
$189.51
14014
PLATE-POSITION,DRIVE
14014-1148
Unavailable
49118
CAMSHAFT-COMP,FR
49118-1193
Unavailable
49118A
CAMSHAFT-COMP,RR
49118-1194
Unavailable
92015
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92033
RING-SNAP,8MM
92033-1039
$4.26
92055
RING-O,18.8X1.9
92055-086
$4.31
92057
CHAIN,CAM SHAFT
92057-1487
$39.58
92057A
CHAIN,SECONDARY SHAFT
92057-1488
$28.29
92145
SPRING,DECOMP
92145-1303
$3.02
92153
BOLT,SOCKET,6X24.5
92153-1200
$11.59
