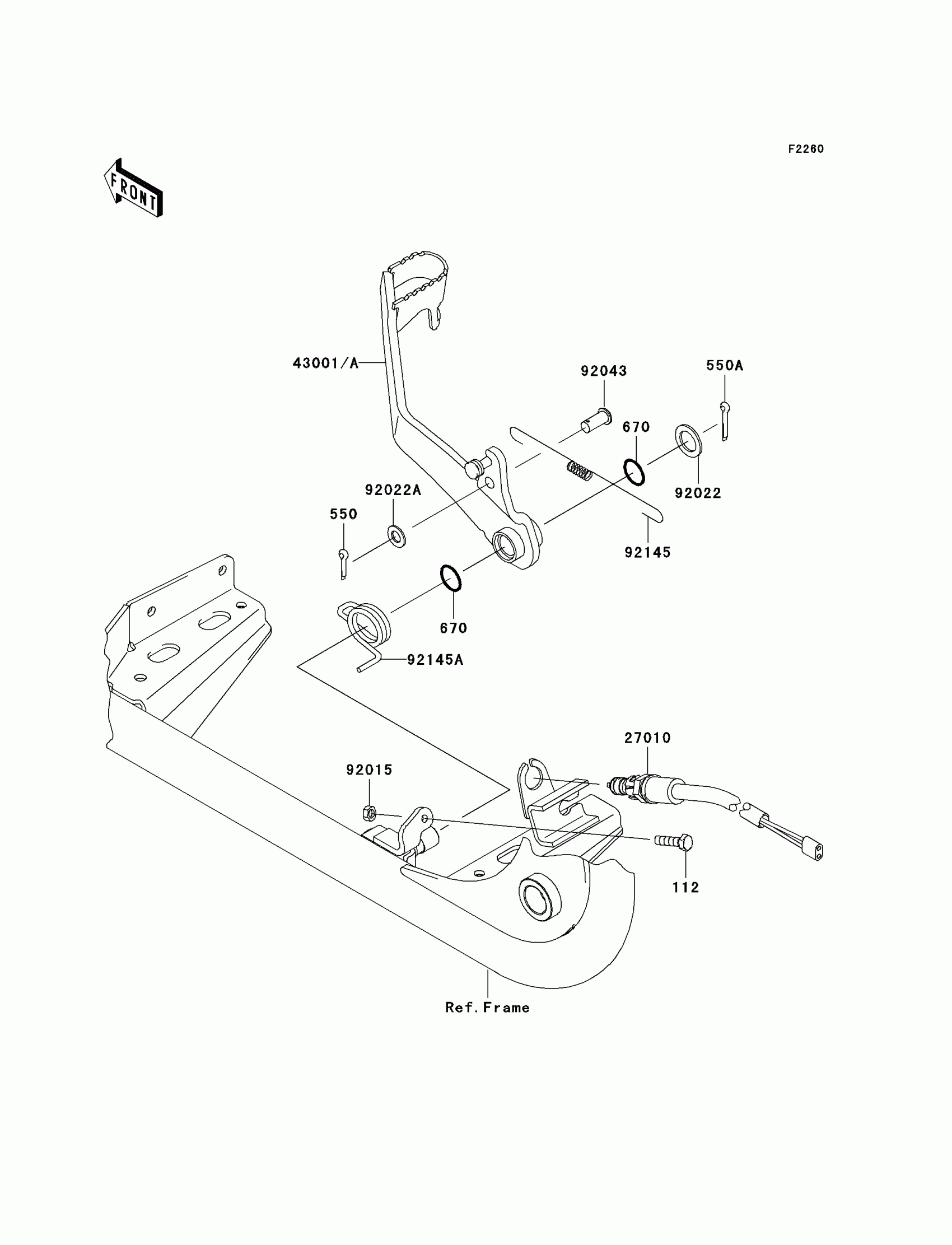

Kawasaki Prairie 700 4x4 Hardwoods Green HD Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112D0622

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.0X22

550D2022

$1.80

670

O RING,15MM

670B2015

$1.08

27010

SWITCH,BRAKE

27010-1494

$51.47

43001

LEVER-BRAKE,PEDAL

43001-0036

$65.08

92015

NUT,6MM

92015-1410

$3.53

92022

WASHER,15.5X24X1.6

92022-1049

$5.71

92022A

WASHER,8.5X16X1.2

92022-1582

$0.81

92043

PIN,8X16

92043-1013

Unavailable

92145

SPRING,BRAKE SWITCH

92145-0056

$3.58

92145A

SPRING,BRAKE PEDAL RETURN

92145-1421

$4.78
