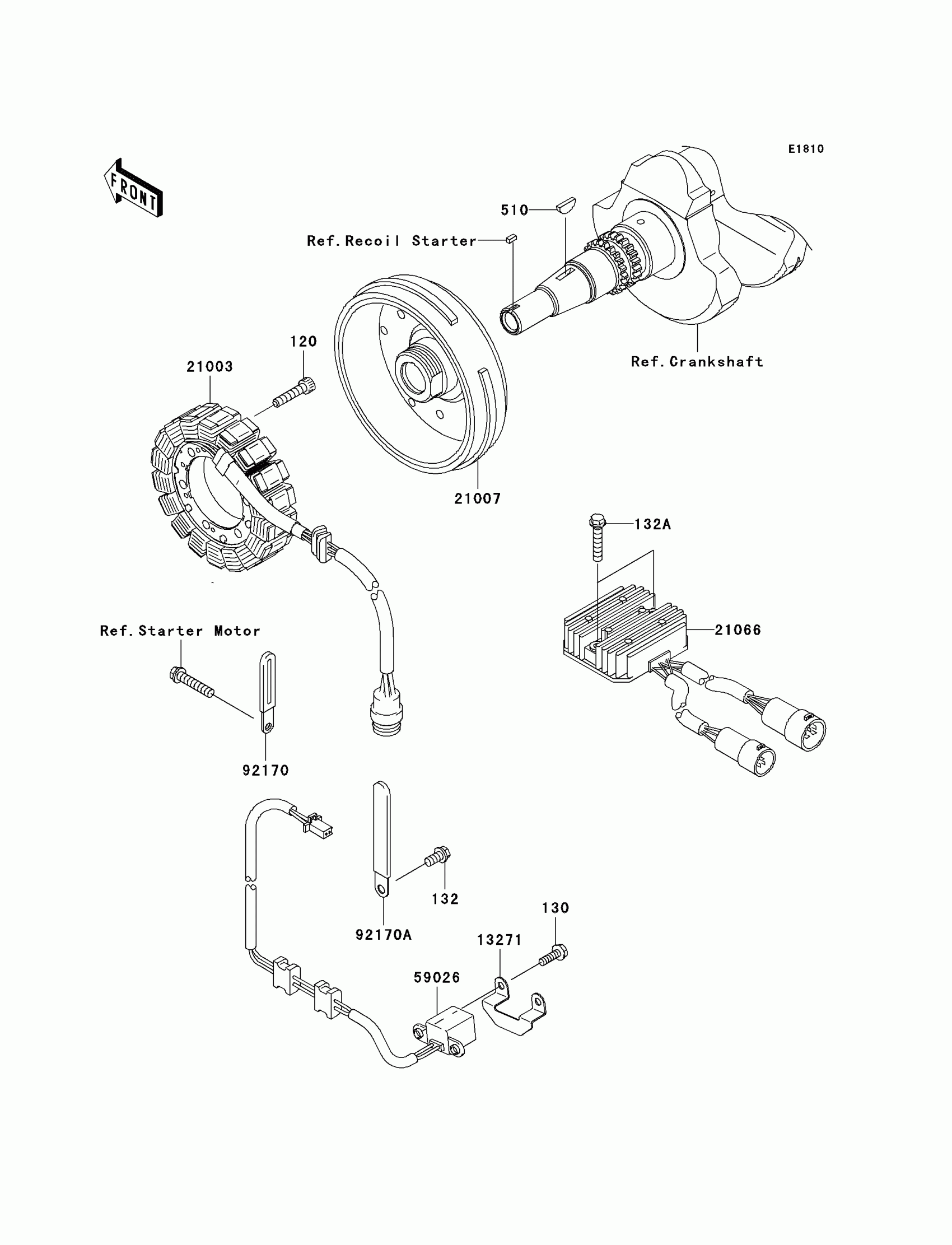

Kawasaki Prairie 700 4x4 Generator Diagram

Description

Price

120

BOLT-SOCKET,6X28

120P0628

$4.65

130

BOLT-FLANGED

130G0516

$0.85

132

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

$3.41

510

KEY-WOODRUFF

510A4200

$2.96

13271

PLATE

13271-1369

$2.93

21003

STATOR

21003-1359

Unavailable

21007

ROTOR

21007-1367

$643.58

21066

REGULATOR-VOLTAGE

21066-1112

Unavailable

59026

COIL-PULSING

59026-1159

$110.15

92170

CLAMP

92170-1514

$4.31

92170A

CLAMP

92170-1925

$2.40
