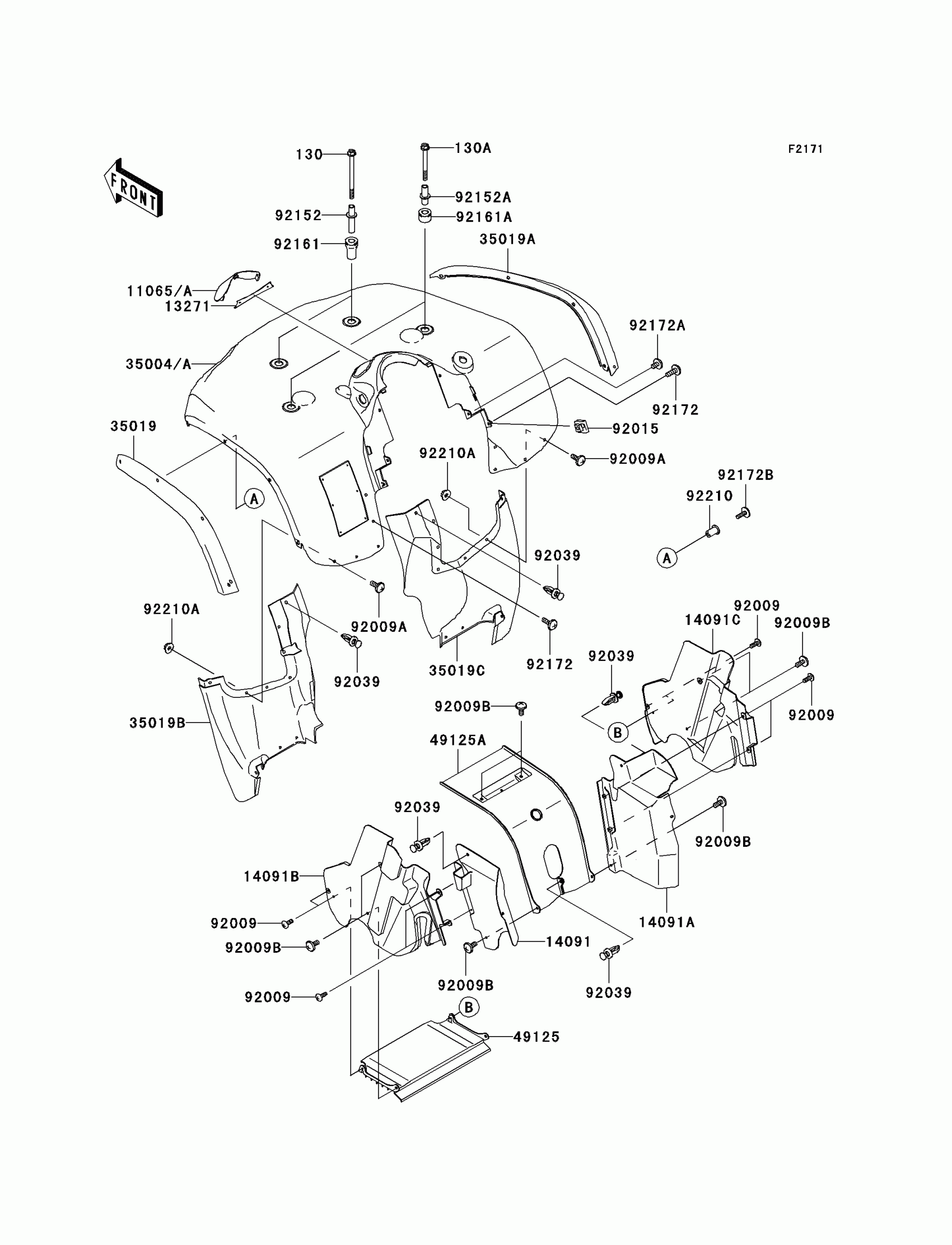

Kawasaki Prairie 700 4x4 Front Fender(s) Diagram
#
Description
Price
130
BOLT-FLANGED,8X105
130S08105
Unavailable
130A
BOLT-FLANGED,8X75
130S0875
Unavailable
11065
CAP,FR FENDER,A.RED
11065-1204-260
$7.89
11065A
CAP,FR FENDER,W.GREEN
11065-1204-286
$7.89
13271
PLATE,FR FENDER CAP
13271-1640
$7.21
14091
COVER,SIDE,RR,LH
14091-1282
$15.79
14091A
COVER,SIDE,RR,RH
14091-1283
$15.79
14091B
COVER,SIDE,FR,LH
14091-1428
$19.59
14091C
COVER,SIDE,FR,RH
14091-1429
$19.59
35004
FENDER-FRONT,A.RED
35004-1452-260
$323.32
35004A
FENDER-FRONT,W.GREEN
35004-1452-286
$323.32
35019
FLAP,FR,SIDE,LH,F.BLACK
35019-1365-6Z
$25.79
35019A
FLAP,FR,SIDE,RH,F.BLACK
35019-1366-6Z
$25.79
35019B
FLAP,FR,RR,LH,F.BLACK
35019-1391-6Z
$41.61
35019C
FLAP,FR,RR,RH,F.BLACK
35019-1392-6Z
$41.61
49125
SHROUD,FR,LWR
49125-0006
$17.47
49125A
SHROUD,FR,UPP
49125-1081
$25.62
92009
SCREW,TAPPING,5X14
92009-1197
$3.92
92009A
SCREW,6X16
92009-1621
Unavailable
92009B
SCREW,6X14
92009-1662
$3.92
92015
NUT,CLAMP,6MM
92015-1678
$5.52
92039
RIVET
92039-1229
$1.19
92152
COLLAR,L=90
92152-0025
$16.48
92152A
COLLAR,L=60.7
92152-0026
$11.69
92161
DAMPER,L=58.5
92161-0035
$9.10
92161A
DAMPER,L=25.5
92161-1166
$5.73
92172
SCREW,6X18
92172-0002
$2.80
92172A
SCREW,6X10
92172-0005
$2.41
92172B
SCREW,5X18
92172-1063
$3.16
92210
NUT,POP,5MM
92210-0012
$3.09
92210A
NUT,6MM
92210-1368
$2.52
