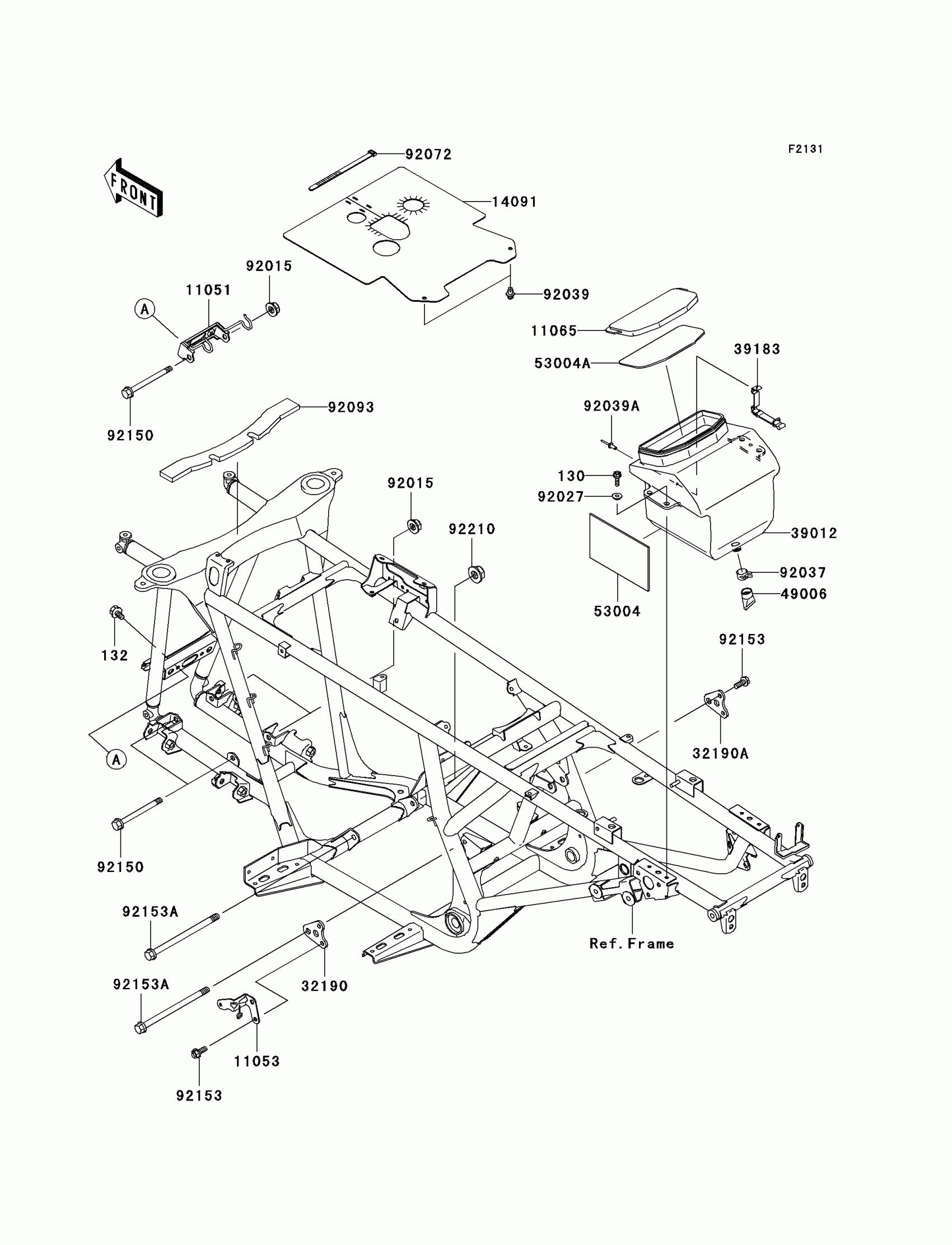

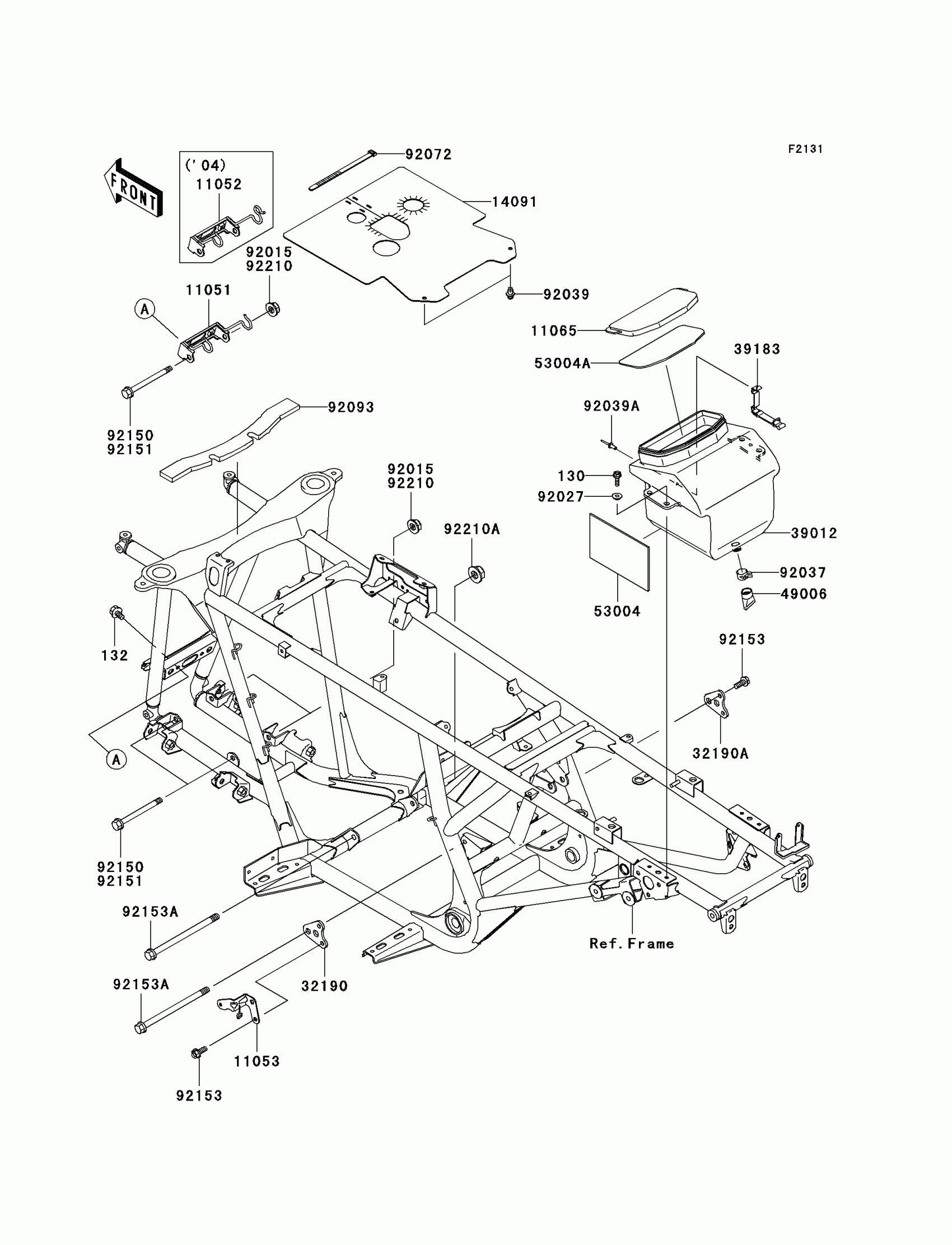

Kawasaki Prairie 700 4x4 Frame Fittings Diagram
#
Description
Price
130
BOLT-FLANGED,6X20
130G0620
$1.69
132
BOLT-FLANGED-SMALL,8X14
132J0814
$2.52
11051
BRACKET,FRONT DIFF
11051-1929
$30.03
11053
BRACKET,RESERVOIR TANK
11053-0481
$13.14
11065
CAP,STORAGE CASE
11065-1154
Unavailable
14091
COVER,FR,UPP
14091-1347
$20.30
32190
BRACKET-ENGINE,RR,UPP,LH
32190-0045
$5.24
32190A
BRACKET-ENGINE,RR,UPP,RH
32190-0046
$8.74
39012
CASE-STORAGE
39012-1064
$45.91
39183
BAND-ASSY,TOOL BAG
39183-1065
$9.49
49006
BOOT
49006-1292
$7.77
53004
MAT,STORAGE CASE
53004-1139
$18.34
53004A
MAT,STORAGE CASE CAP
53004-1147
$8.19
92015
NUT,LOCK,FLANGED,10MM
92015-1717
$9.91
92027
COLLAR
92027-1936
$6.22
92037
CLAMP,HOSE CLIP
92037-1460
$10.81
92039
RIVET
92039-1229
$1.19
92039A
RIVET,4.8MM
92039-3719
$6.22
92072
BAND,L=123
92072-030
$5.00
92093
SEAL
92093-1555
$10.89
92150
BOLT,FLANGED,10X120
92150-1642
$17.91
92153
BOLT,FLANGED,8X20
92153-0948
$2.61
92153A
BOLT,FLANGED,12X190
92153-1272
$17.31
92210
NUT,LOCK,FLANGED,12MM
92210-1150
$6.22
