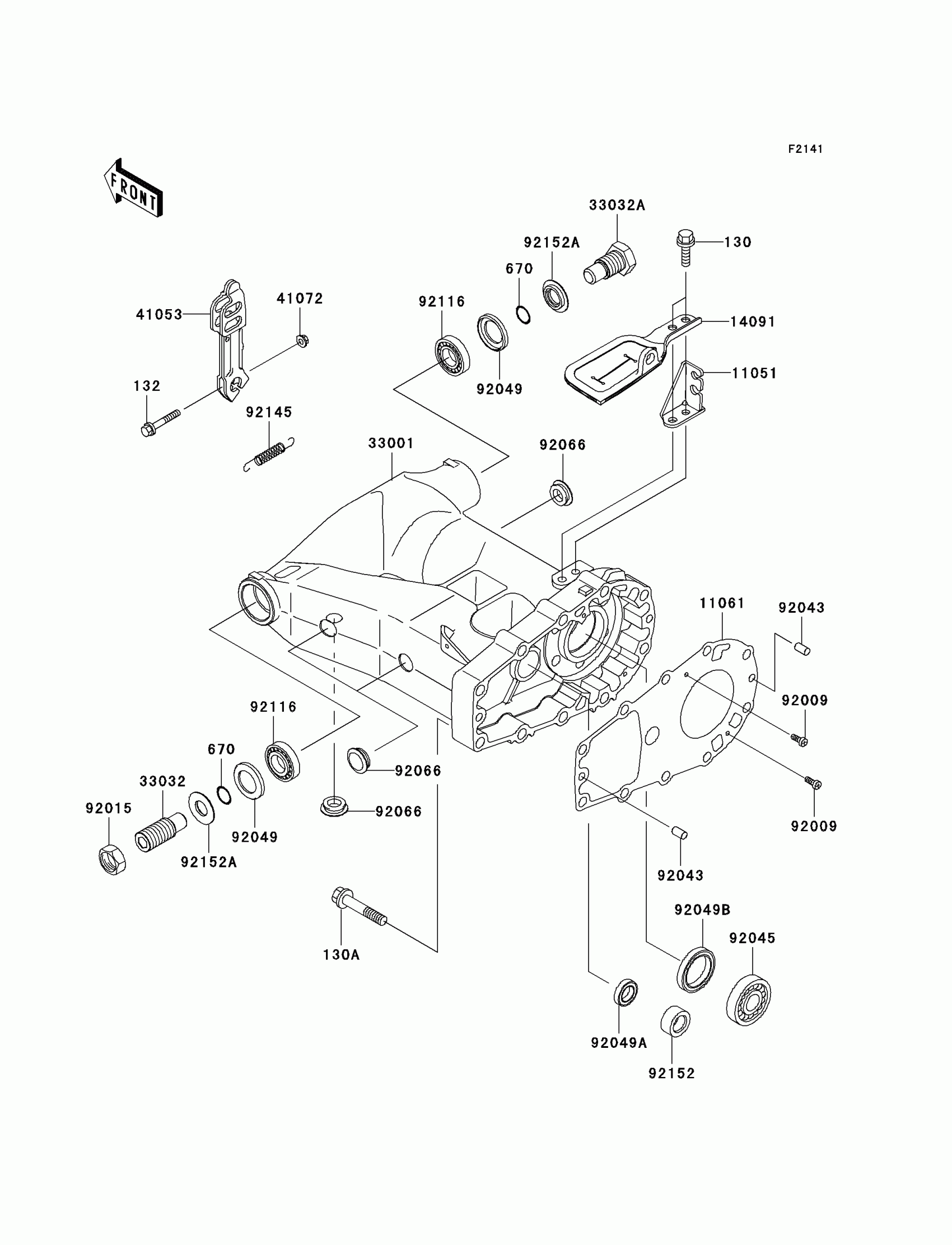

Kawasaki Prairie 650 4X4 Swingarm Diagram
#
Description
Price
130
BOLT-FLANGED,8X22
130J0822
$2.19
130A
BOLT-FLANGED,10X55
130P1055
$3.06
132
BOLT-FLANGED-SMALL,6X40
132G0640
$4.15
670
O RING,16MM
670B2016
$1.36
11051
BRACKET,CABLE
11051-1762
$9.87
11061
GASKET,SWING ARM
11061-1065
$49.04
14091
COVER,BRAKE
14091-1425
$42.98
33001
ARM-COMP-SWING
33001-1585
$698.14
33032
SHAFT-SWING ARM,LEFT SIDE
33032-1197
$40.30
33032A
SHAFT-SWING ARM,RIGHT SIDE
33032-1200
$40.30
41053
LEVER-BRAKE CAM
41053-1094
$54.98
41072
NUT,6MM
41072-007
$3.92
92009
SCREW,4X10
92009-1936
$1.94
92015
NUT,22MM
92015-1229
$10.28
92043
PIN,8X14
92043-1567
$2.26
92045
BEARING-BALL,TMBO/28C3
92045-1427
$32.27
92049
SEAL-OIL,26406
92049-1030
$9.73
92049A
SEAL-OIL,TC17X28X6
92049-1537
$11.81
92049B
SEAL-OIL,HTC35X48X7
92049-1538
$15.43
92066
PLUG
92066-1534
$2.11
92116
BEARING-ROLLER,4T30203E1
92116-1001
$38.04
92145
SPRING,BRAKE LEVER RETURN
92145-1313
$4.96
92152
COLLAR
92152-1240
$15.43
92152A
COLLAR
92152-1356
$10.19
