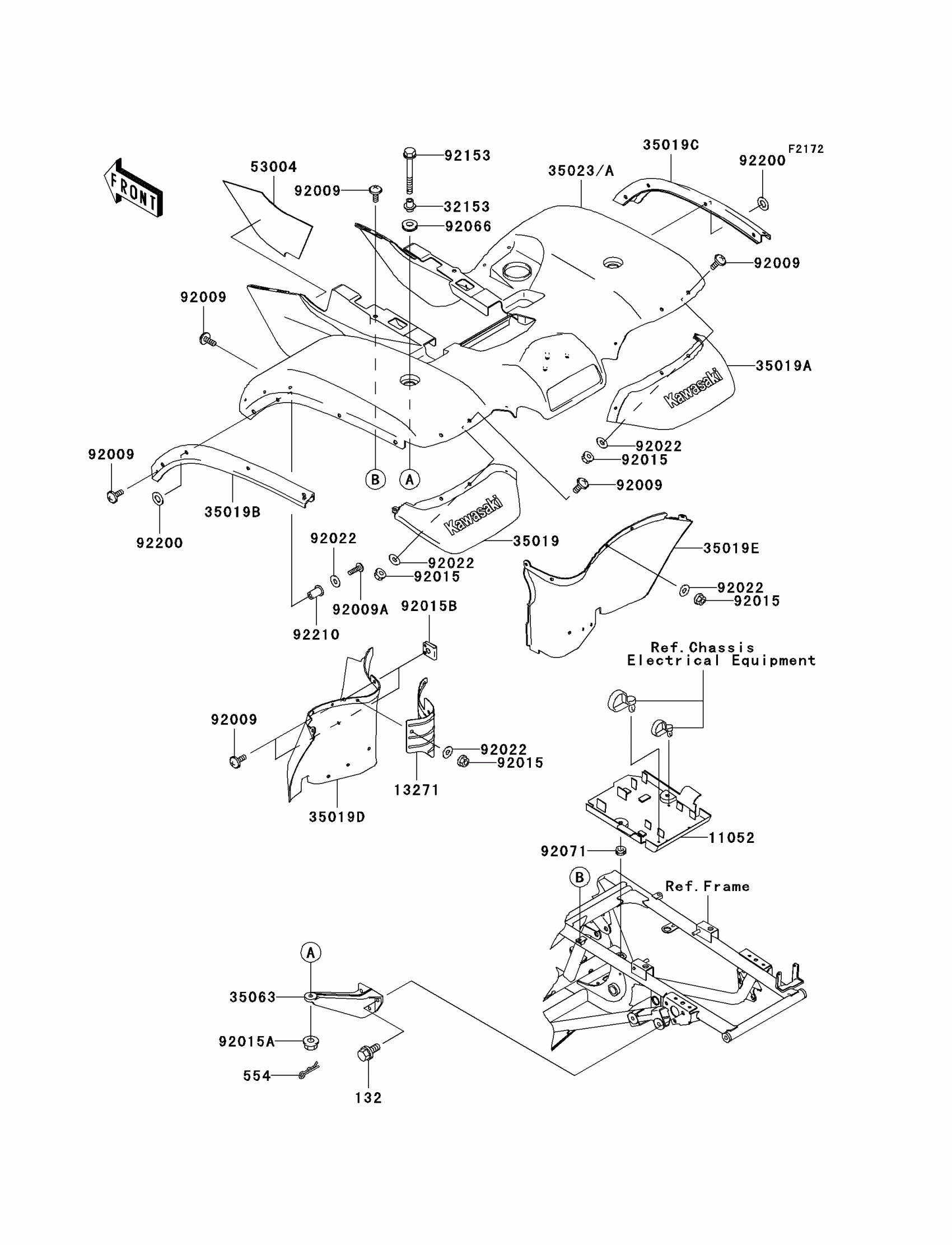

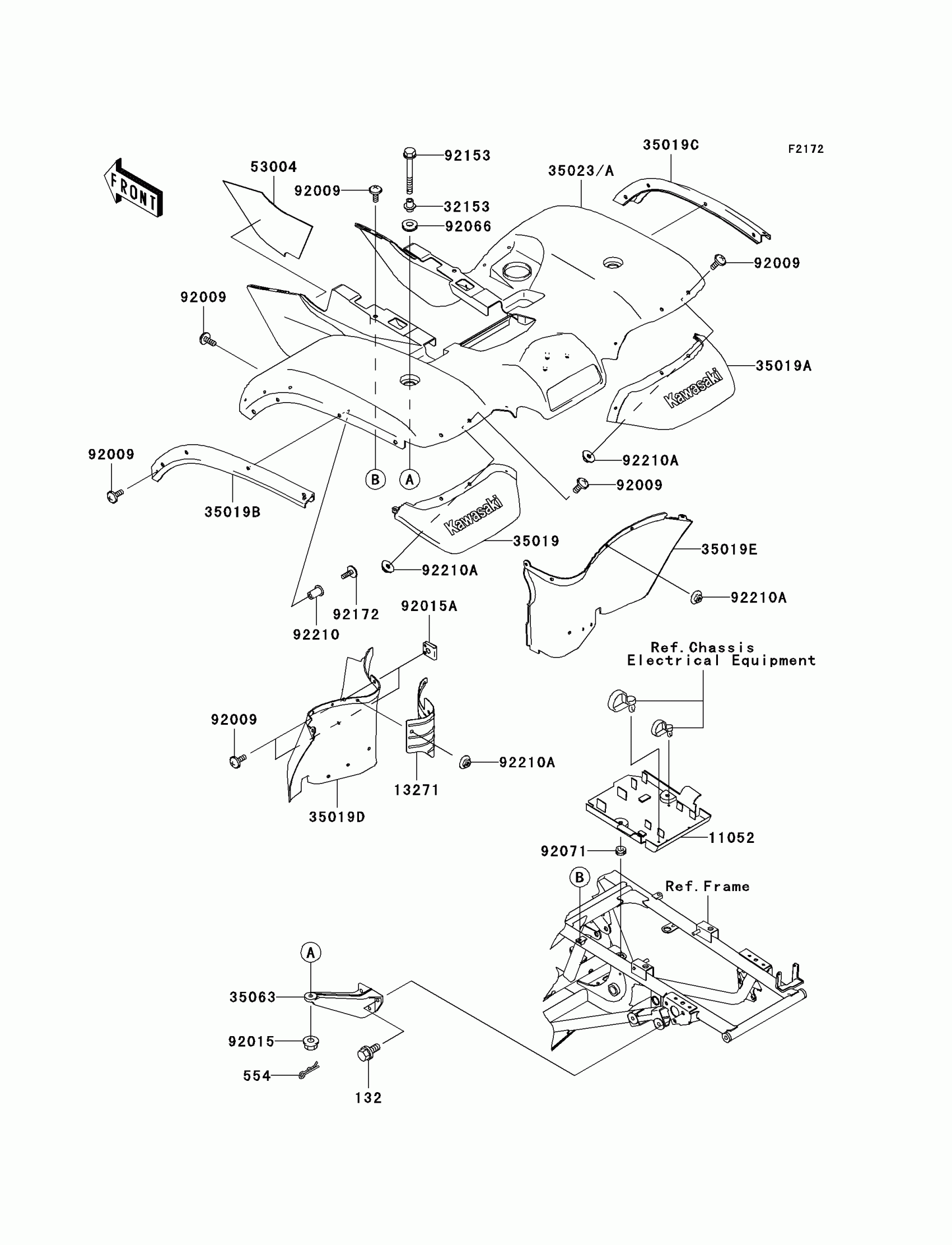

Kawasaki Prairie 650 4X4 Rear Fender(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,8X18

132J0818

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

11052

BRACKET,ELCTRIC

11052-1481

$14.73

13271

PLATE,HEAT GUARD

13271-1718

Unavailable

32153

PIPE,RR FENDER

32153-1606

$9.12

35019

FLAP,RR,RR,LH,F.BLACK

35019-1371-6Z

$22.56

35019A

FLAP,RR,RR,RH,F.BLACK

35019-1372-6Z

$22.56

35019B

FLAP,RR,SIDE,LH,F.BLACK

35019-1373-6Z

$22.91

35019C

FLAP,RR,SIDE,RH,F.BLACK

35019-1374-6Z

$22.91

35019D

FLAP,RR,FR,LH,F.BLACK

35019-1393-6Z

$33.87

35019E

FLAP,RR,FR,RH,F.BLACK

35019-1394-6Z

$33.87

35023

FENDER-REAR,H.GREEN

35023-1565-6A

$245.61

35023A

FENDER-REAR,F.RED

35023-1565-6L

$250.73

35063

STAY,RR FENDER

35063-1100

$149.66

53004

MAT,RR FENDER

53004-1141

$36.36

92009

SCREW,6X16

92009-1621

Unavailable

92009A

SCREW,5X18

92009-1655

$3.29

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,LOCK,FLANGED,8MM

92015-1397

$3.29

92015B

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92066

PLUG

92066-1438

$3.91

92071

GROMMET

92071-1131

$5.93

92153

BOLT,FLANGED,8X58

92153-1061

$7.56

92200

WASHER,9.5X18X1.2

92200-1037

$3.59

92210

NUT,POP,5MM

92210-1227

$2.15
