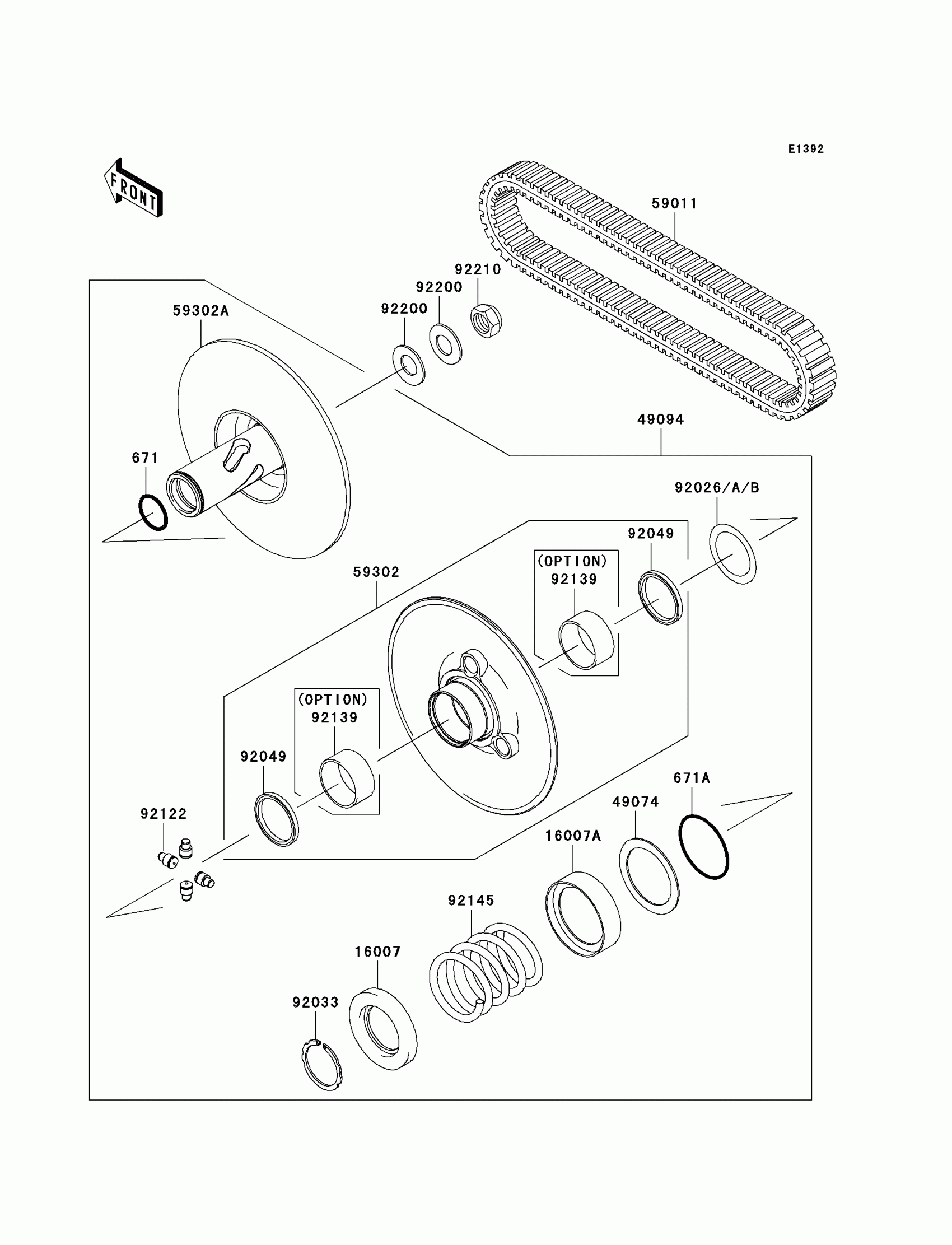

Kawasaki Prairie 650 4X4 Driven Converter Diagram

Description

Price

671

O RING

671D2530

$5.79

671A

O RING

671D2550

$6.57

16007

SEAT-SPRING

16007-1203

$10.39

16007A

SEAT-SPRING,SHEAVE MOVABLE

16007-1221

$19.90

49074

PLATE-THRUST

49074-1055

$36.58

49094

CONVERTER-ASSY-DRIVEN

49094-1094

$718.24

59011

BELT

59011-1080

$118.78

59302

SHEAVE-COMP,MOVABLE

59302-1096

Unavailable

59302A

SHEAVE-COMP,FIXED

59302-1097

Unavailable

92026

SPACER,T=1.00

92026-1565

Unavailable

92026A

SPACER,T=0.60

92026-1569

Unavailable

92026B

SPACER,T=1.40

92026-1570

Unavailable

92033

RING-SNAP

92033-1317

$6.12

92049

SEAL-OIL

92049-1528

$16.41

92122

ROLLER

92122-1209

$7.65

92139

BUSHING

92139-1078

$12.41

92145

SPRING,YELLOW

92145-1462

$33.95

92200

WASHER

92200-1505

$5.00

92210

NUT,18

92210-1269

$8.36
