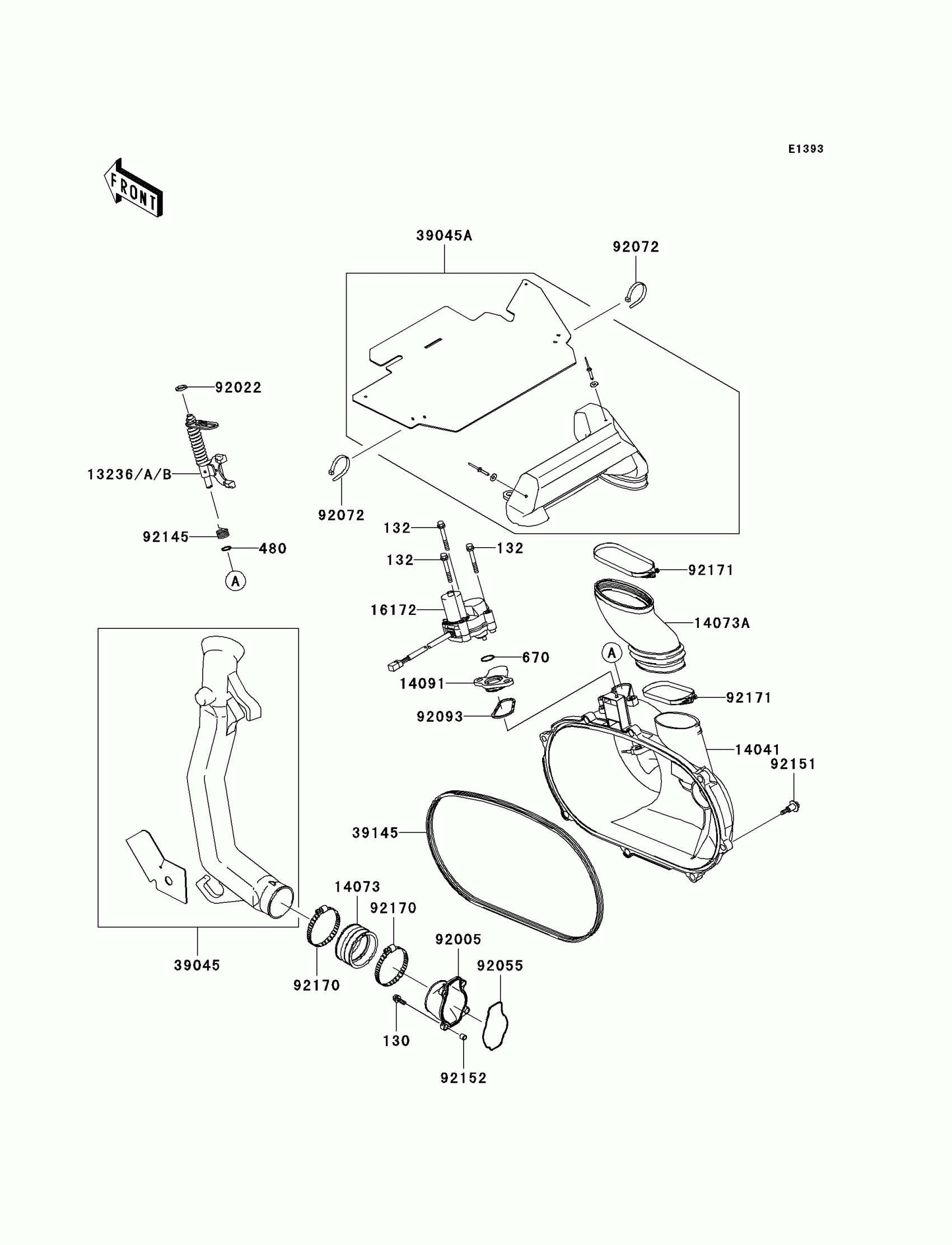

Kawasaki Prairie 650 4X4 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED

130Z0620

$1.63

132

BOLT-FLANGED-SMALL,6X50

132J0650

$4.44

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

670

O RING

670D3022

$2.80

13236

LEVER-COMP,YELLOW

13236-1385

Unavailable

13236A

LEVER-COMP,GREEN

13236-1386

Unavailable

13236B

LEVER-COMP,PAINT LESS

13236-1387

Unavailable

14041

COVER-COMP,BELT CONVERTER

14041-1152

$206.00

14073

DUCT,JOINT

14073-1775

$4.36

14073A

DUCT,EXHAUST

14073-1792

$17.27

14091

COVER

14091-1421

Unavailable

16172

ACTUATOR,BELT CONVERTER

16172-1053

$421.70

39045

DUCT-ASSY,SNORKEL,IN

39045-1062

$30.00

39045A

DUCT-ASSY,SNORKEL,EX

39045-1063

$50.40

39145

TRIM-SEAL

39145-1135

Unavailable

92005

FITTING

92005-1387

$8.10

92022

WASHER,10.2X16X1

92022-1829

$4.31

92055

RING-O

92055-1630

$10.49

92072

BAND,L=188

92072-1239

$1.73

92093

SEAL

92093-1548

$10.06

92145

SPRING

92145-1295

$2.78

92151

BOLT,FLANGED,6X30

92151-1686

$9.43

92152

COLLAR

92152-1332

$4.18

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-1336

$13.55
