2002 Kawasaki Prairie 650 4X4 Carburetor Diagram

← All diagrams

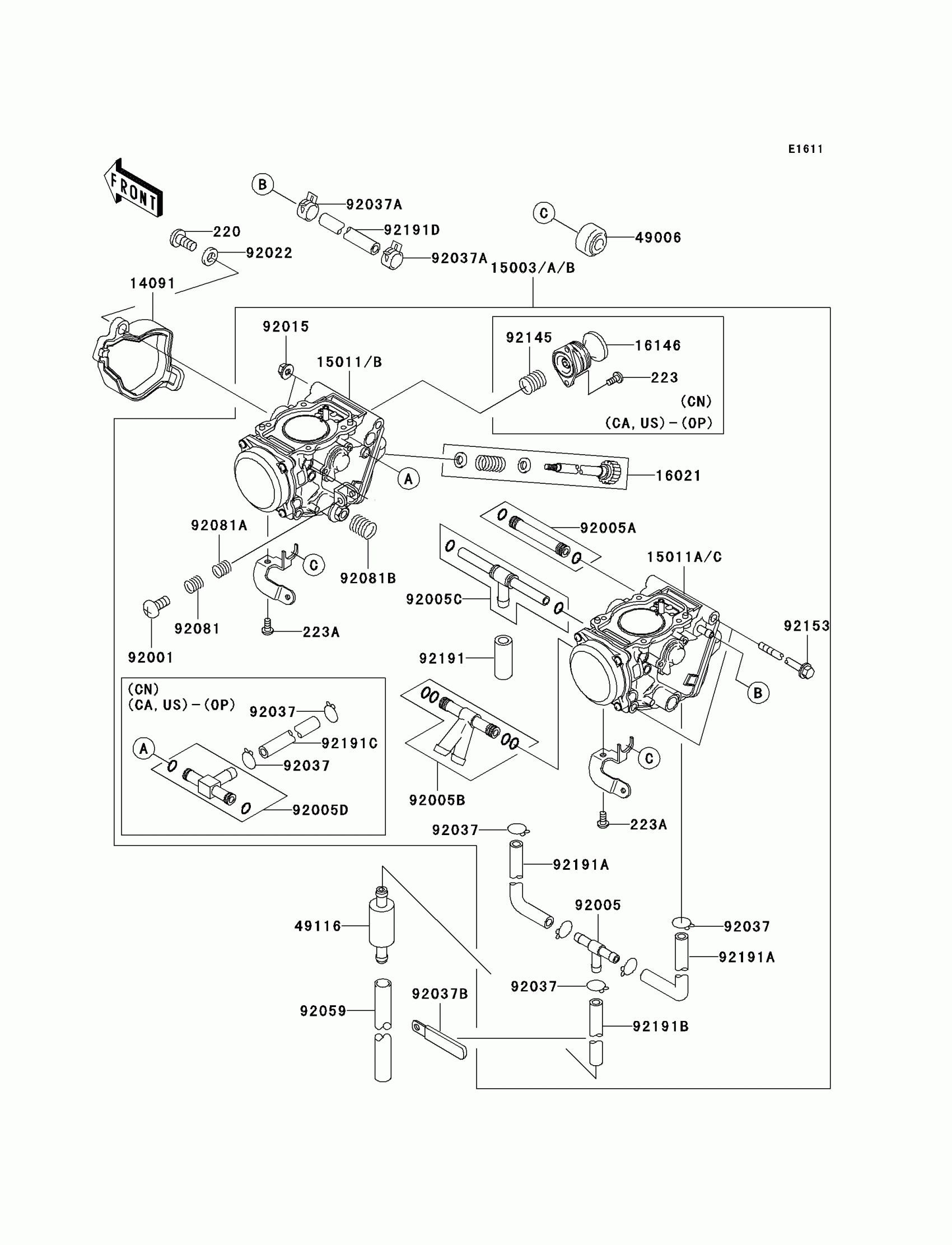

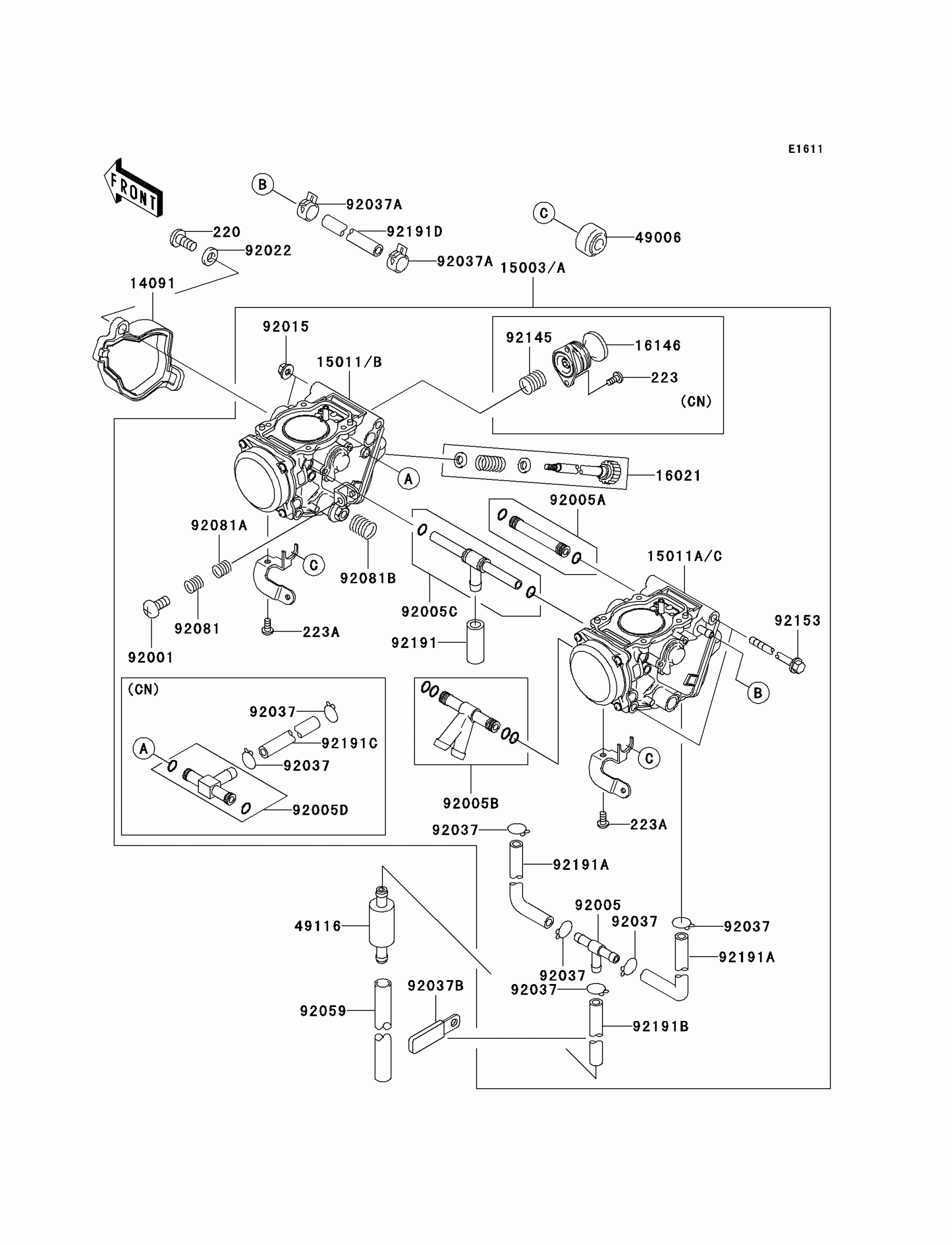

Find the part on the Carburetor diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 650 4X4 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,THROTTLE CABLE

14091-1196

1
Out of stock

15003B

CARBURETOR-ASSY

15003-1670

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1238

1
Out of stock

49006

BOOT,STARTER CABLE

49006-1353

1
Out of stock

49116

VALVE-ASSY

49116-1126

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92005

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

92005A

FITTING

92005-1375

1
Out of stock

92005B

FITTING

92005-1376

1
Out of stock

92005C

FITTING

92005-1385

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1
Out of stock

92037A

CLAMP,TUBE

92037-1505

1
Out of stock

92037B

CLAMP,L=45

92037-1539

1
Out of stock

92059

TUBE,7X10X100

92059-1736

1
Out of stock

92081

SPRING

92081-1620

1
Out of stock

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

1
Out of stock

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

1
Out of stock

92153

BOLT,5X143

92153-1068

1
Out of stock

92191

TUBE,7X11X25

92191-1672

1
Out of stock

220

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

223A

SCREW-PAN-WS-CROS,4X8

223D0408

1
Out of stock

92191A

TUBE,4.5X8X65

92191-1673

1
Out of stock

92191B

TUBE,4.5X8X420

92191-1674

1
Out of stock

92191D

TUBE,5.3X10.3X200

92191-1694

1
Out of stock

15003

CARBURETOR-ASSY

15003-1557

1
Out of stock

15003A

CARBURETOR-ASSY

15003-1670

1
Out of stock

15011

CARBURETOR,FR

15011-1871

1
Out of stock

15011A

CARBURETOR,RR

15011-1872

1
Out of stock

15011B

CARBURETOR,FR

15011-1873

1
Out of stock

15011C

CARBURETOR,RR

15011-1874

1
Out of stock

16146

COVER-ASSY,PRIMING

16146-1225

1
Out of stock

92005D

FITTING

92005-1393

1
Out of stock

92037

CLAMP,TUBE

92037-1201

1
Out of stock

92037

CLAMP,TUBE

92037-1201

1
Out of stock

92145

SPRING,PRIMING

92145-1451

1
Out of stock

223

SCREW-PAN-WS-CROS

223C0412

1
Out of stock

92191C

TUBE,4.5X8.5X35

92191-1676

1
Out of stock
