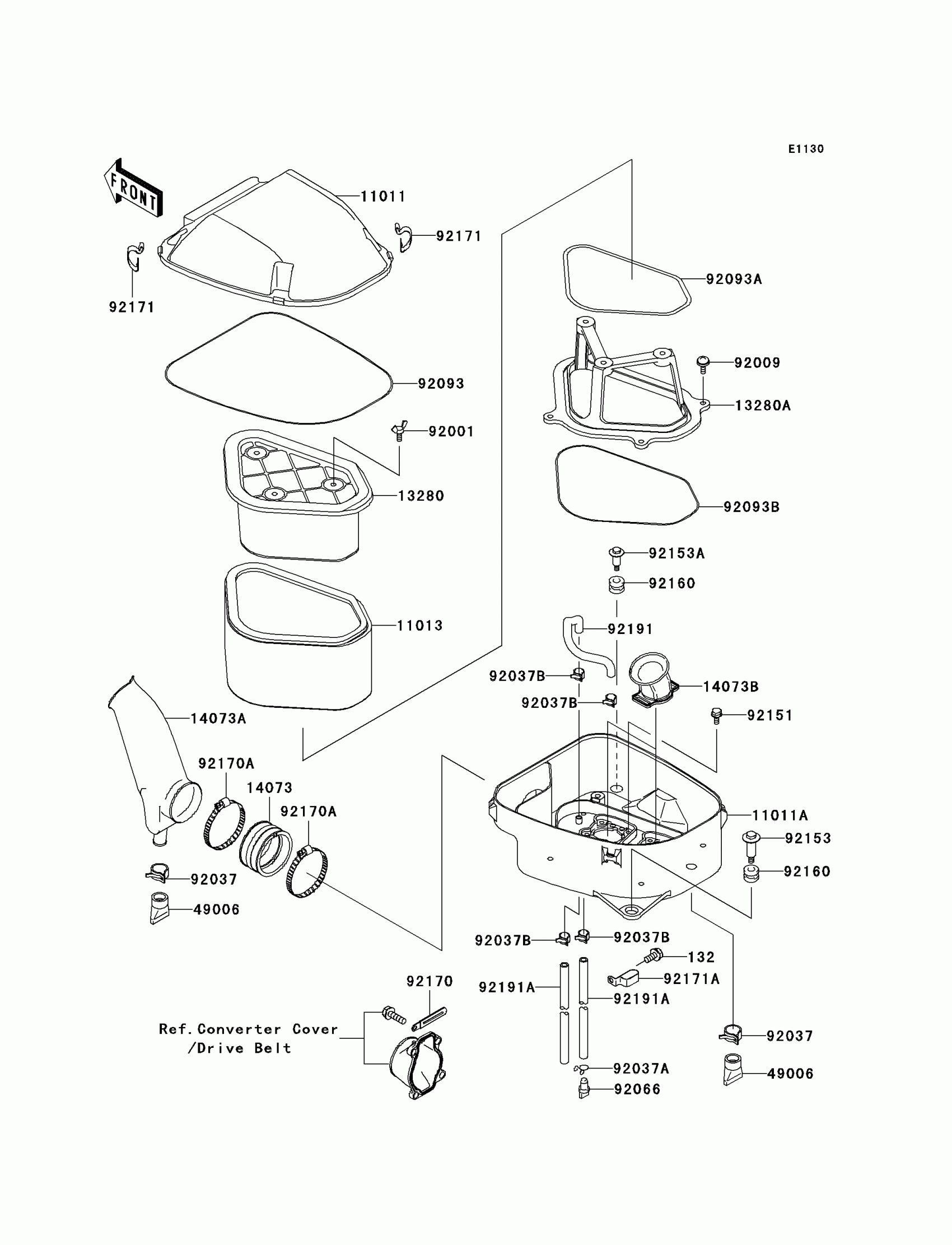

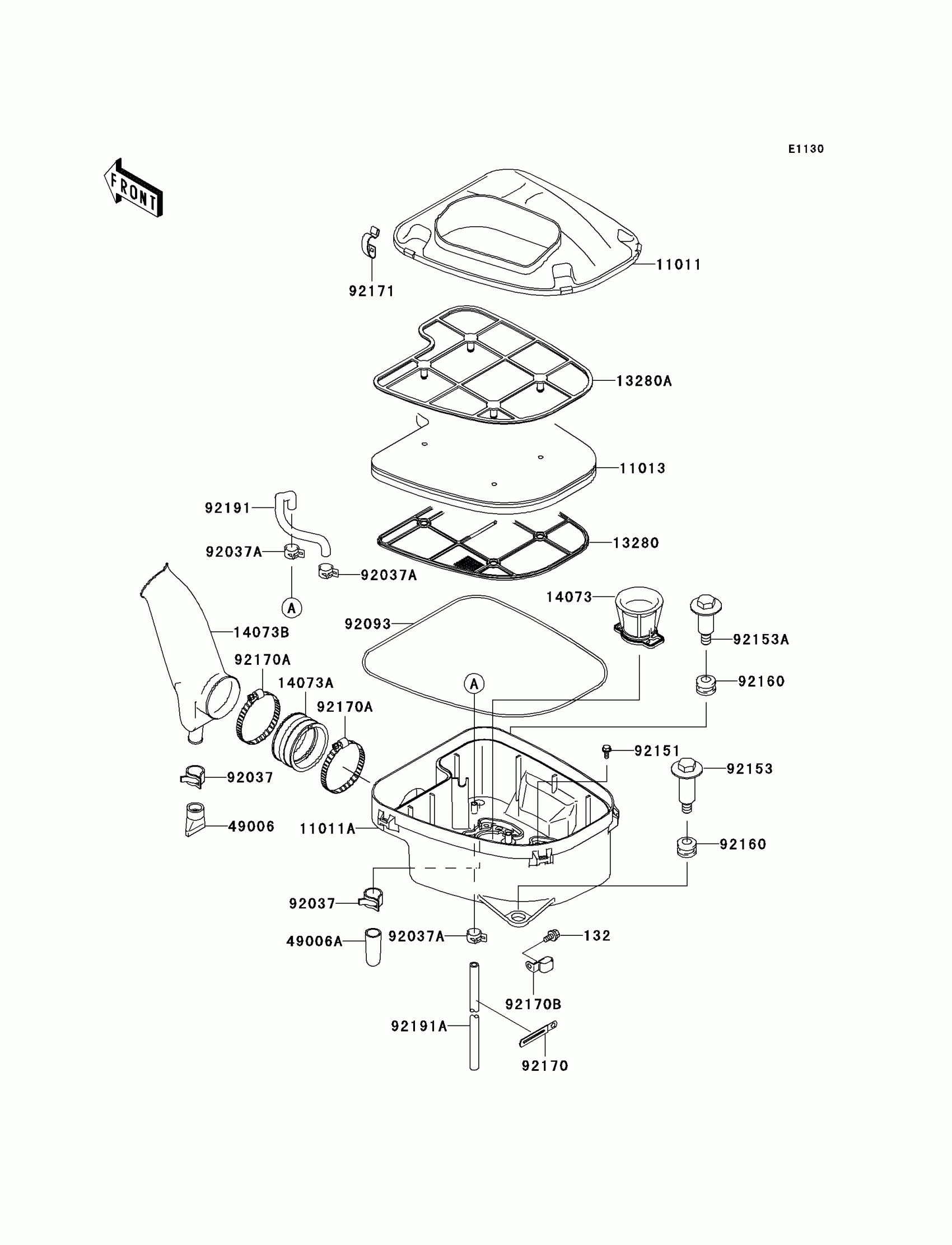

Kawasaki Prairie 650 4X4 Air Cleaner Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

11011

CASE-AIR FILTER,UPP

11011-1641

$37.28

11011A

CASE-AIR FILTER,LWR

11011-1643

$32.01

11013

ELEMENT-AIR FILTER

11013-1287

$32.64

13280

HOLDER,ELEMENT,LWR

13280-1170

$44.31

13280A

HOLDER,ELEMENT,UPP

13280-1171

$26.25

14073

DUCT,FR

14073-1736

$24.14

14073A

DUCT,JOINT

14073-1775

$4.36

14073B

DUCT,INTAKE

14073-1778

$23.76

49006

BOOT

49006-1292

$7.77

49006A

BOOT

49006-1351

$7.51

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP,TUBE

92037-1505

$4.76

92093

SEAL,AIR FILTER CASE

92093-1522

$8.24

92151

BOLT,FLANGED,5X12

92151-1305

$1.59

92153

BOLT,AIR FILTER,LH

92153-1051

$6.88

92153A

BOLT,FLANGED,6X28.7

92153-1052

$6.88

92160

DAMPER

92160-1594

$4.69

92170

CLAMP

92170-1514

$4.31

92170A

CLAMP

92170-1764

$11.48

92170B

CLAMP

92170-1833

$6.42

92171

CLAMP,AIR FILTER CASE

92171-1394

$4.38

92191

TUBE,7X11X210

92191-1494

$4.34

92191A

TUBE,7X11X470

92191-1531

$7.22
