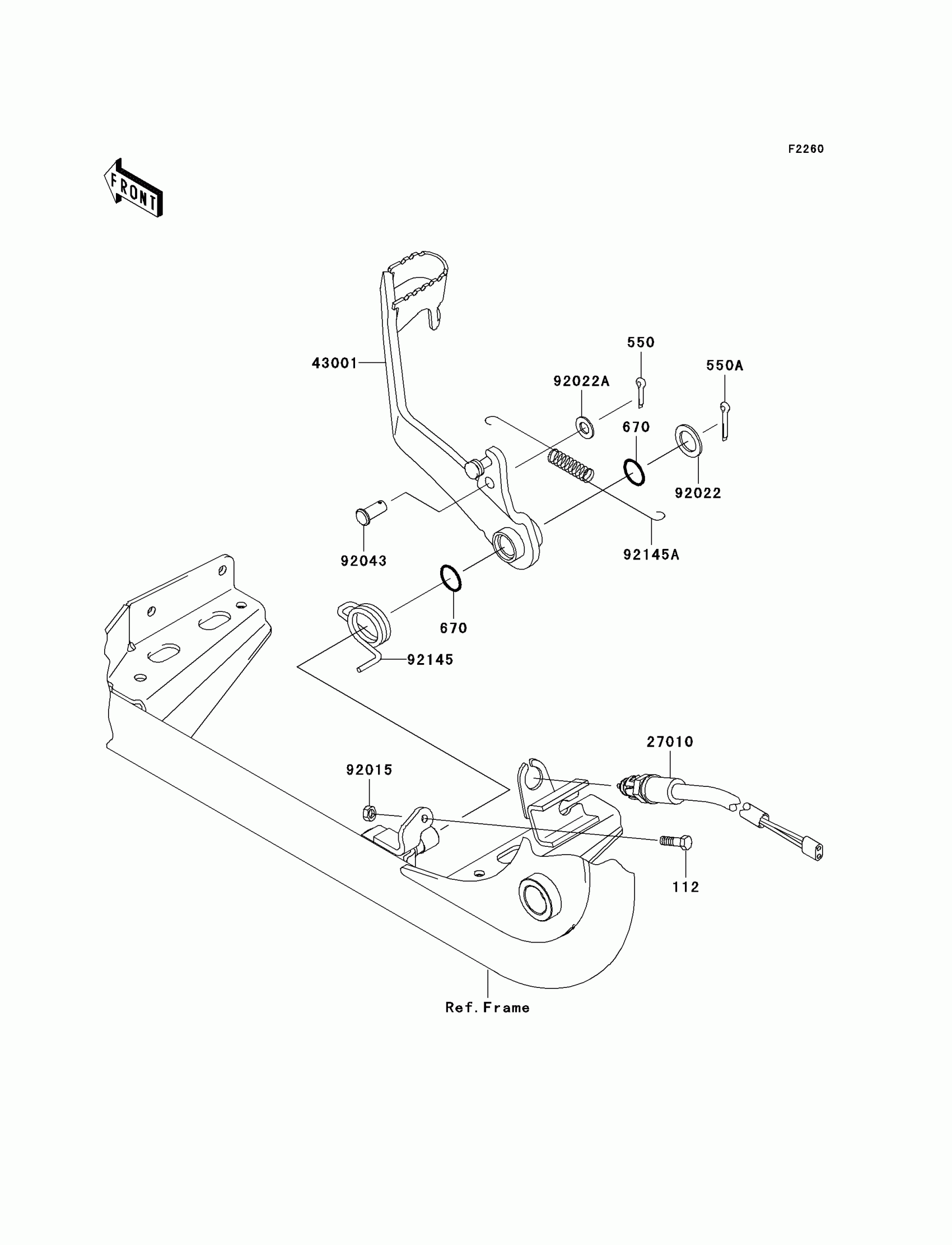

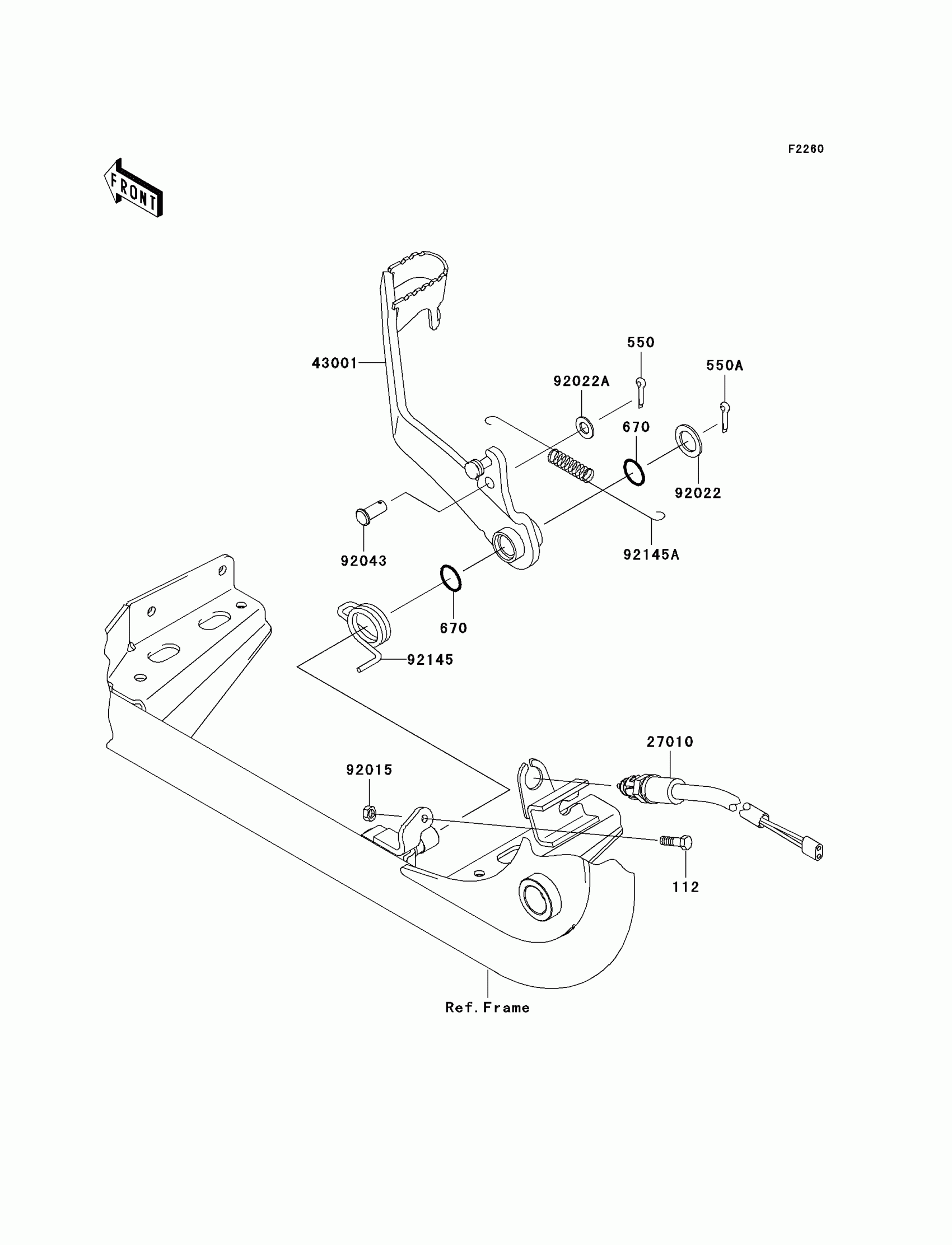

Kawasaki Prairie 650 4X4 Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X20

112G0620

$2.12

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,2.0X22

550D2022

$2.51

670

O RING,15MM

670B2015

$1.42

27010

SWITCH,BRAKE LAMP

27010-1301

$46.78

43001

LEVER-BRAKE,PEDAL

43001-1441

$64.10

92015

NUT,6MM

92015-1410

$3.92

92022

WASHER,15.5X24X1.6

92022-1049

$6.57

92022A

WASHER,8.5X16X1.2

92022-1582

$0.96

92043

PIN,8X16

92043-1013

$9.91

92145

SPRING,BRAKE PEDAL RETURN

92145-1421

$5.43

92145A

SPRING,BRAKE SWITCH

92145-1422

$4.95
