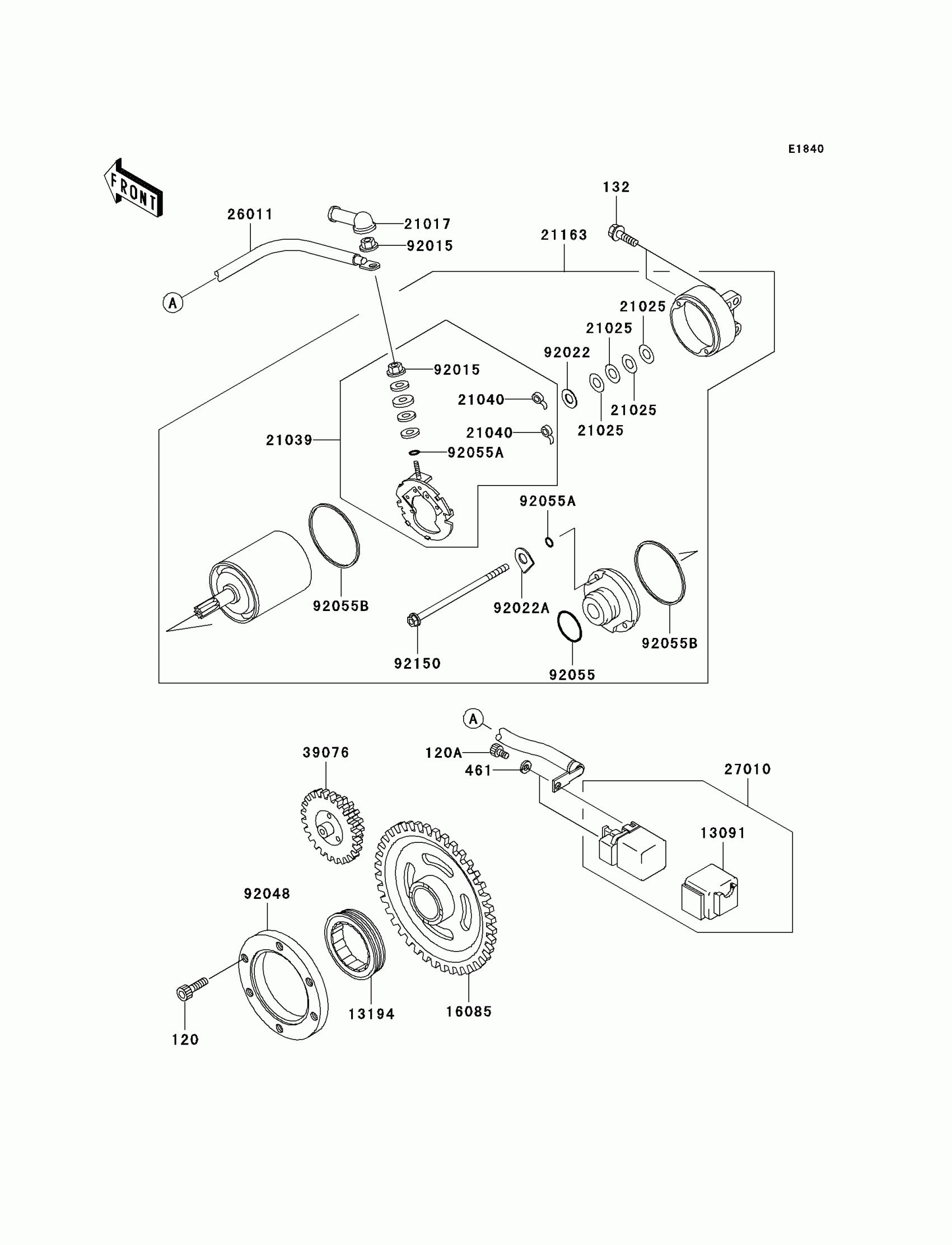

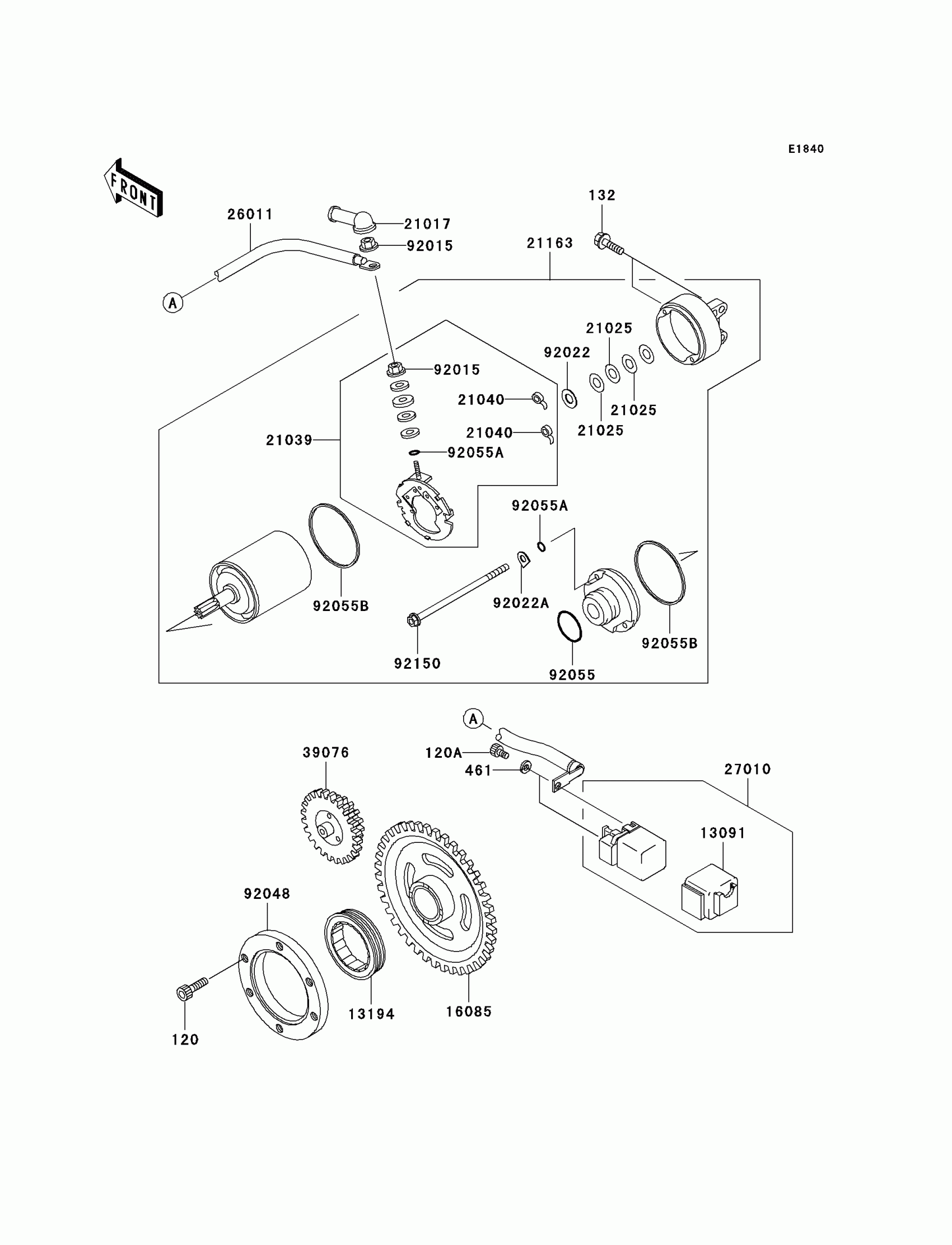

Kawasaki Prairie 650 4X4 Advantage Classic Starter Motor Diagram

Description

Price

120

BOLT-SOCKET,8X16

120P0816

$4.15

120A

BOLT-SOCKET,5X10

120S0510

$1.60

132

BOLT-FLANGED-SMALL,6X30

132Y0630

$3.41

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49

13091

HOLDER

13091-1992

$7.60

13194

CLUTCH-ONEWAY

13194-1094

$126.13

16085

GEAR,STARTER

16085-1238

$125.04

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

$6.22

21039

BRUSH,CARBON

21039-1063

$85.85

21040

SPRING-BRUSH

21040-1057

$8.42

21163

STARTER-ELECTRIC

21163-1320

Unavailable

26011

WIRE-LEAD

26011-1814

Unavailable

27010

SWITCH,MAGNETIC

27010-1376

Unavailable

39076

LIMITER,STARTER

39076-1076

$242.50

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92022A

WASHER,LOCK,T=2.0

92022-1458

$6.22

92048

RACE,ONEWAY CLUTCH

92048-1090

$108.96

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92150

BOLT

92150-1243

$10.89
