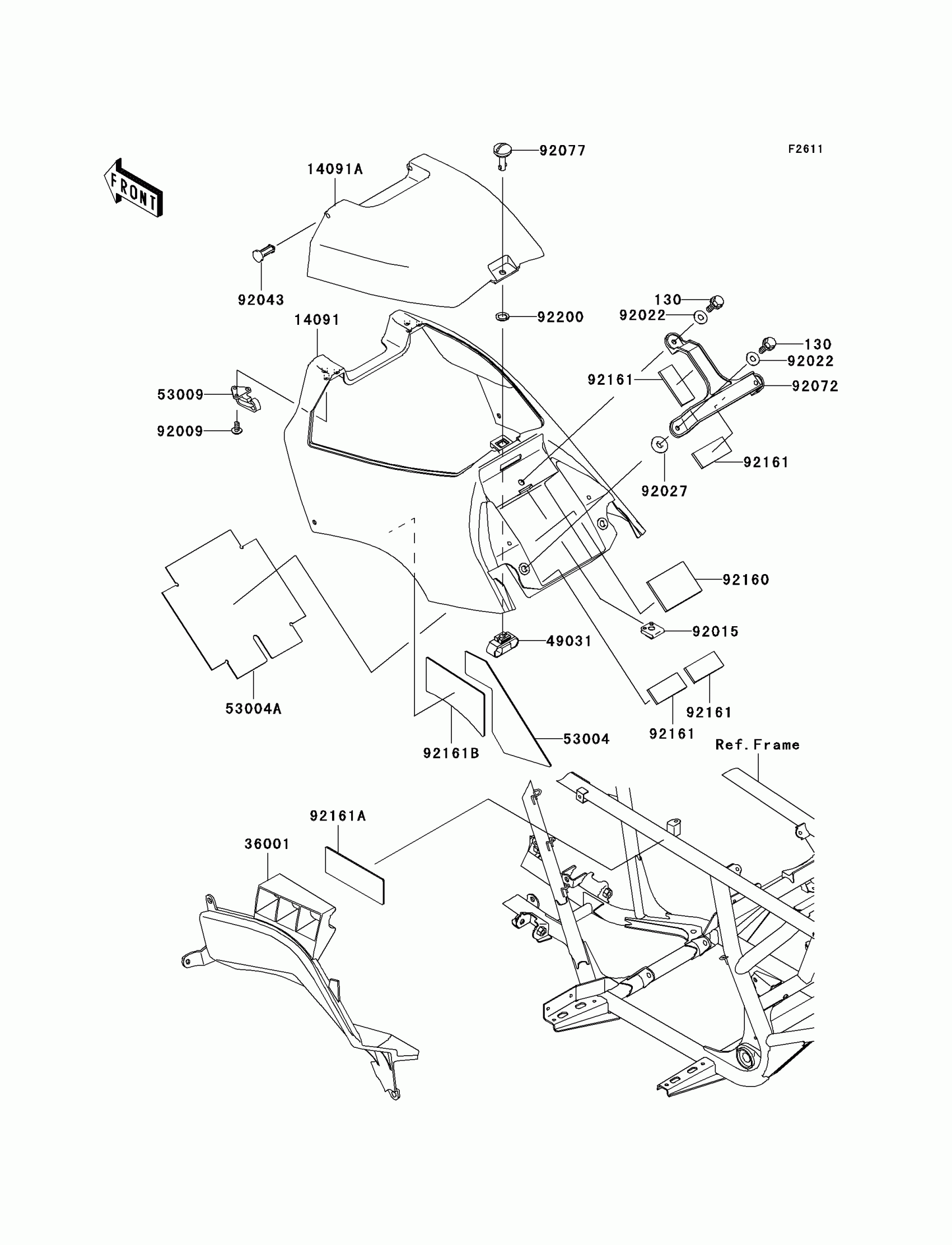

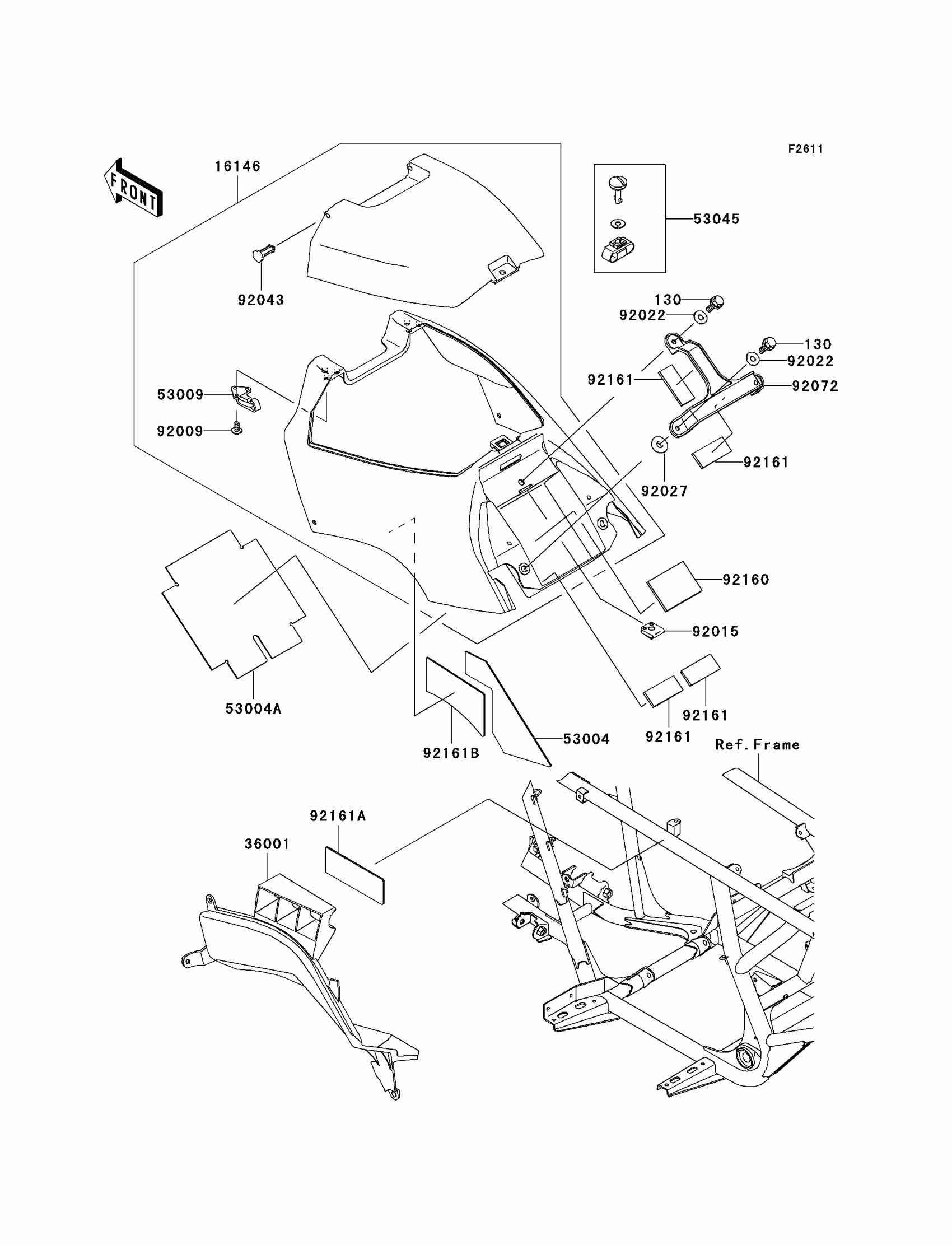

Kawasaki Prairie 650 4X4 Advantage Classic Side Covers Diagram

Description

Price

130

BOLT-FLANGED,6X18

130J0618

$1.69

14091

COVER,FUEL TANK,CAMOUFLAGE

14091-1558-370

$61.32

14091A

COVER,FUEL TANK,UPP,CAMOUFLAGE

14091-1559-370

$32.00

36001

COVER-SIDE

36001-1647

$30.28

49031

LATCH

49031-1060

Unavailable

53004

MAT,FUEL TANK COVER

53004-1148

$20.51

53004A

MAT,BATTERY CASE

53004-1172

$35.62

53009

HINGE,FUEL TANK COVER,FR

53009-1110

$7.13

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR,L=4.7

92027-1964

$7.34

92043

PIN,HINGE

92043-1623

$3.29

92072

BAND,BATTERY

92072-1406

$6.96

92077

KNOB

92077-1129

$4.94

92160

DAMPER,BATTERY

92160-1897

$6.21

92161

DAMPER,30X70X5

92161-1127

$7.65

92161A

DAMPER,SIDE COVER

92161-1201

$10.53

92161B

DAMPER,FUEL TANK COVER

92161-1202

$15.01

92200

WASHER

92200-1578

Unavailable
