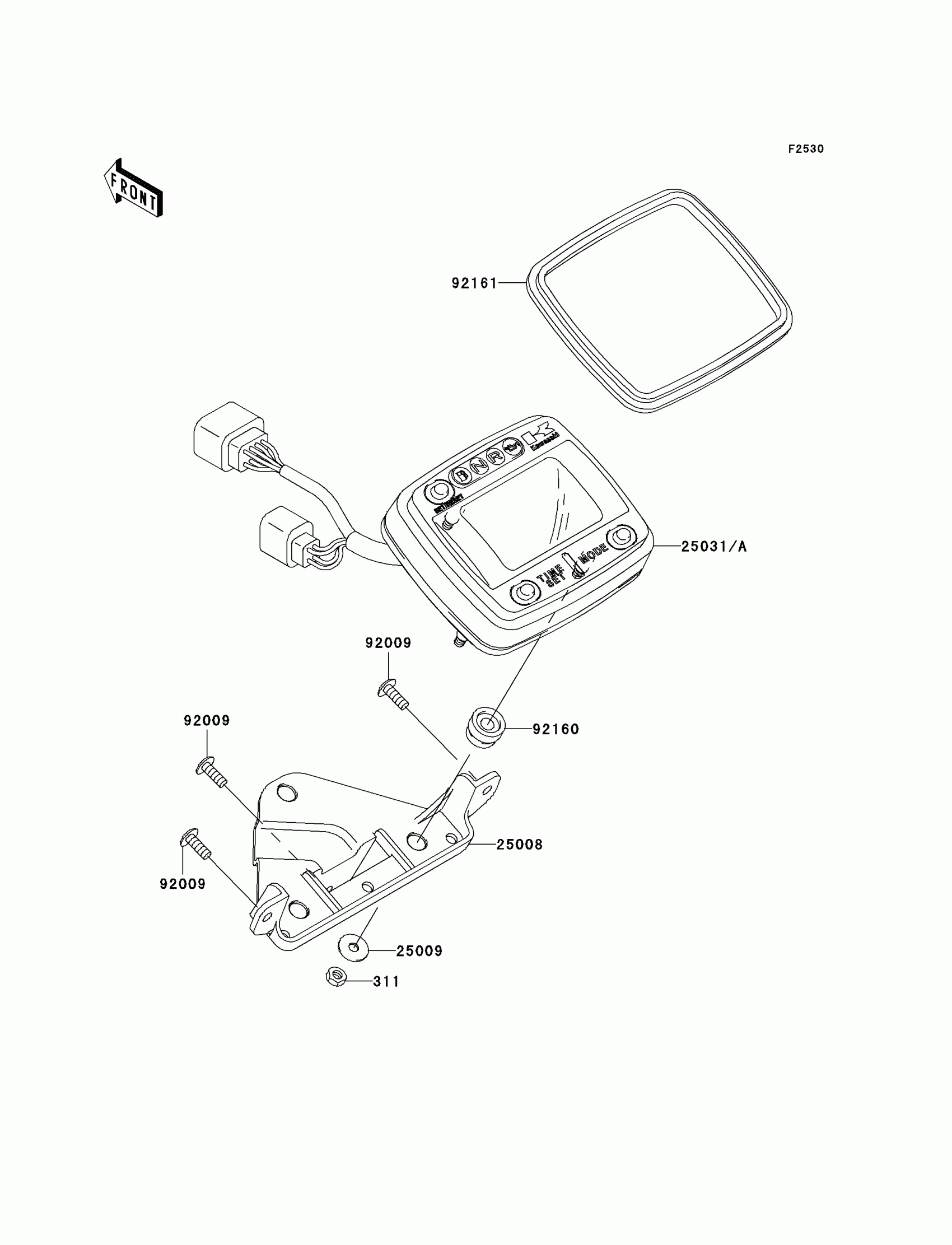

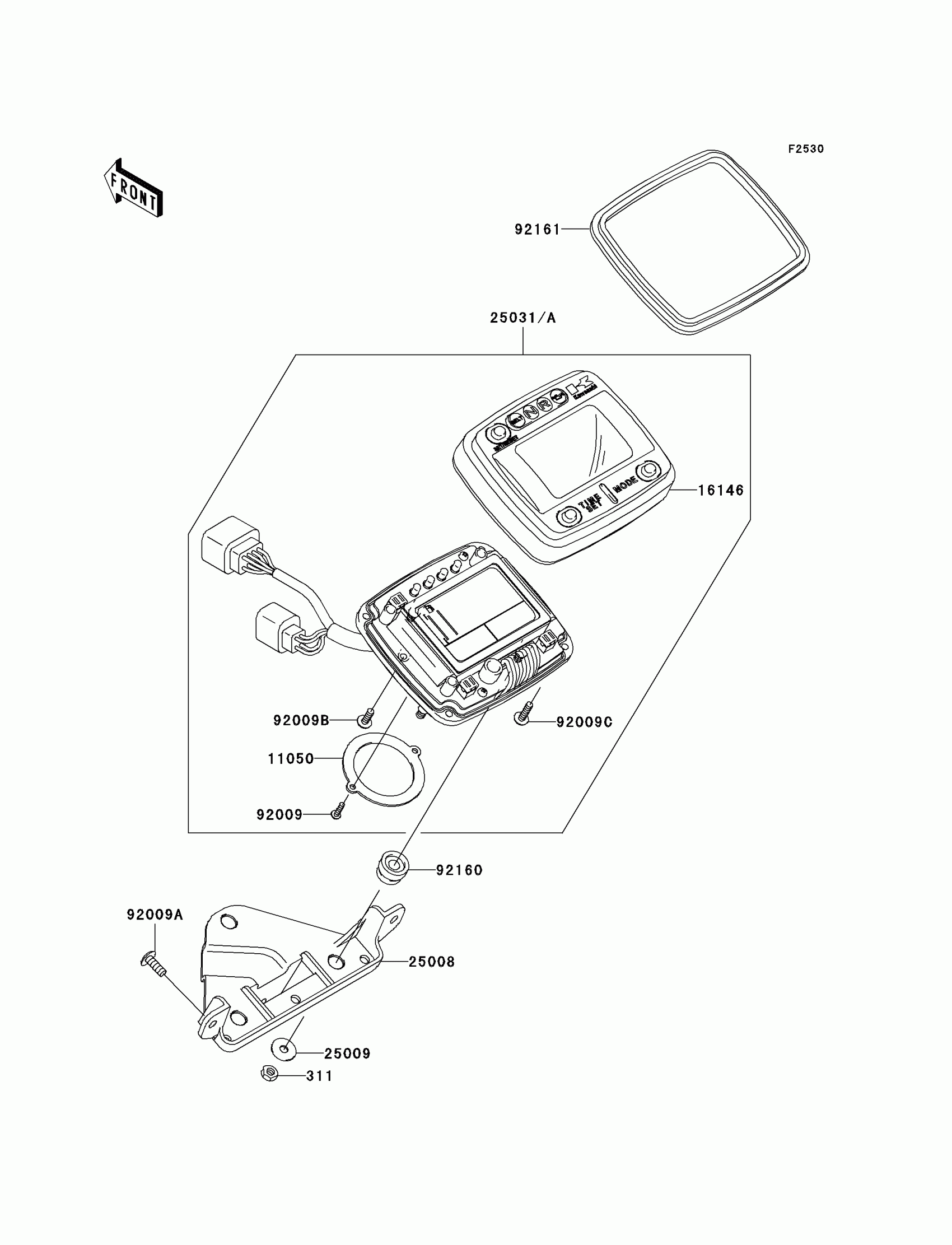

Kawasaki Prairie 650 4X4 Advantage Classic Meter(s) Diagram

Description

Price

311

NUT-HEX

311C0500

$0.43

11050

BRACKET,METER

11050-1932

$9.94

16146

COVER-ASSY,UPPER

16146-0004

$158.65

25008

BRACKET-METER

25008-1226

$8.22

25009

WASHER,5.2X16X1.2

25009-004

$3.65

92009

SCREW,TAPPING,3X12

92009-1028

$3.65

92009A

SCREW,TAPPING,5X14

92009-1197

$3.92

92009B

SCREW,TAPPING,4X12

92009-1254

$4.11

92009C

SCREW,6X18

92009-1663

Unavailable

92160

DAMPER

92160-1460

$4.87

92161

DAMPER,METER,UPP

92161-1114

$4.14

25031

METER-ASSY,MPH

25031-1267

$1,129.88

25031A

METER-ASSY,KPH

25031-1268

Unavailable
