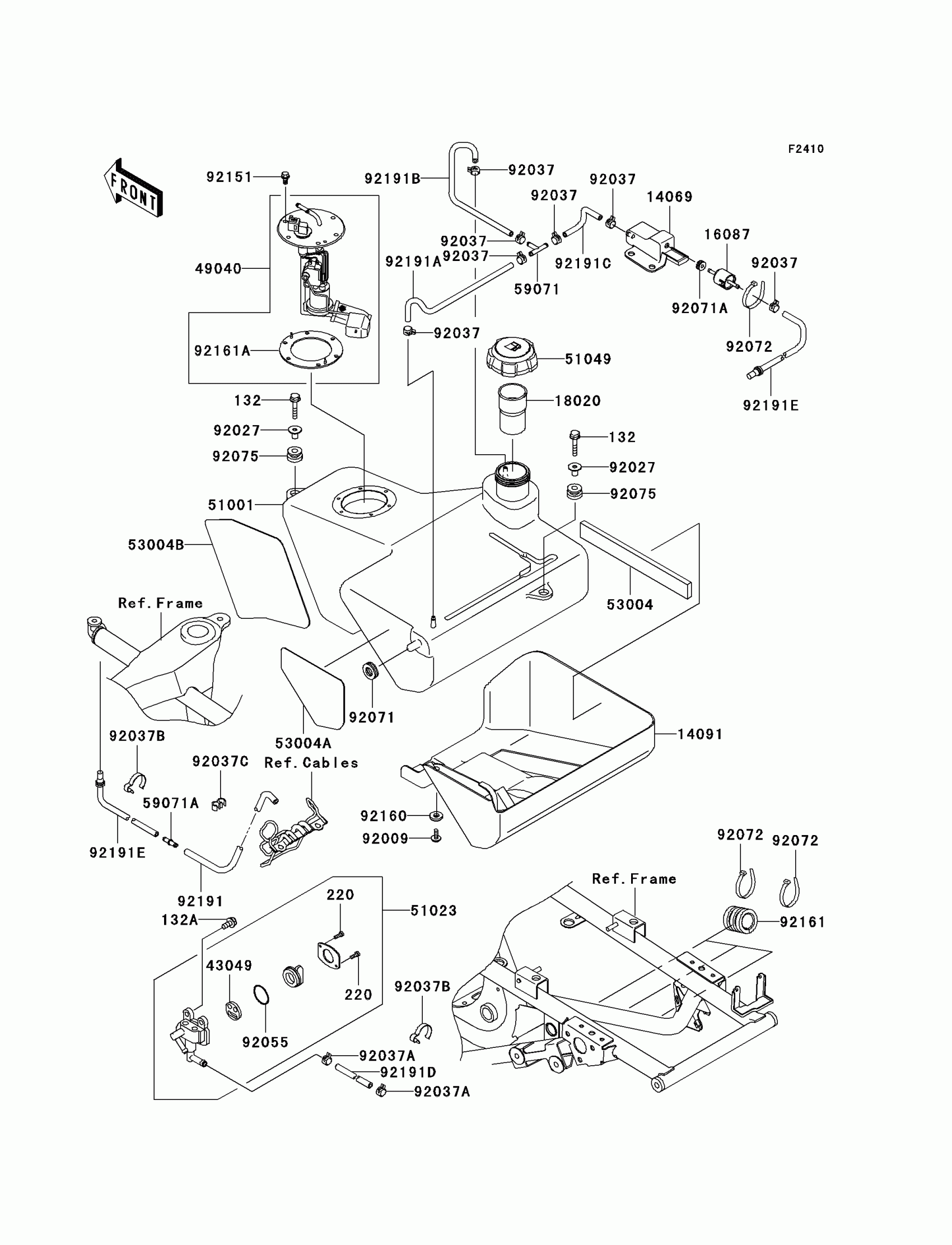

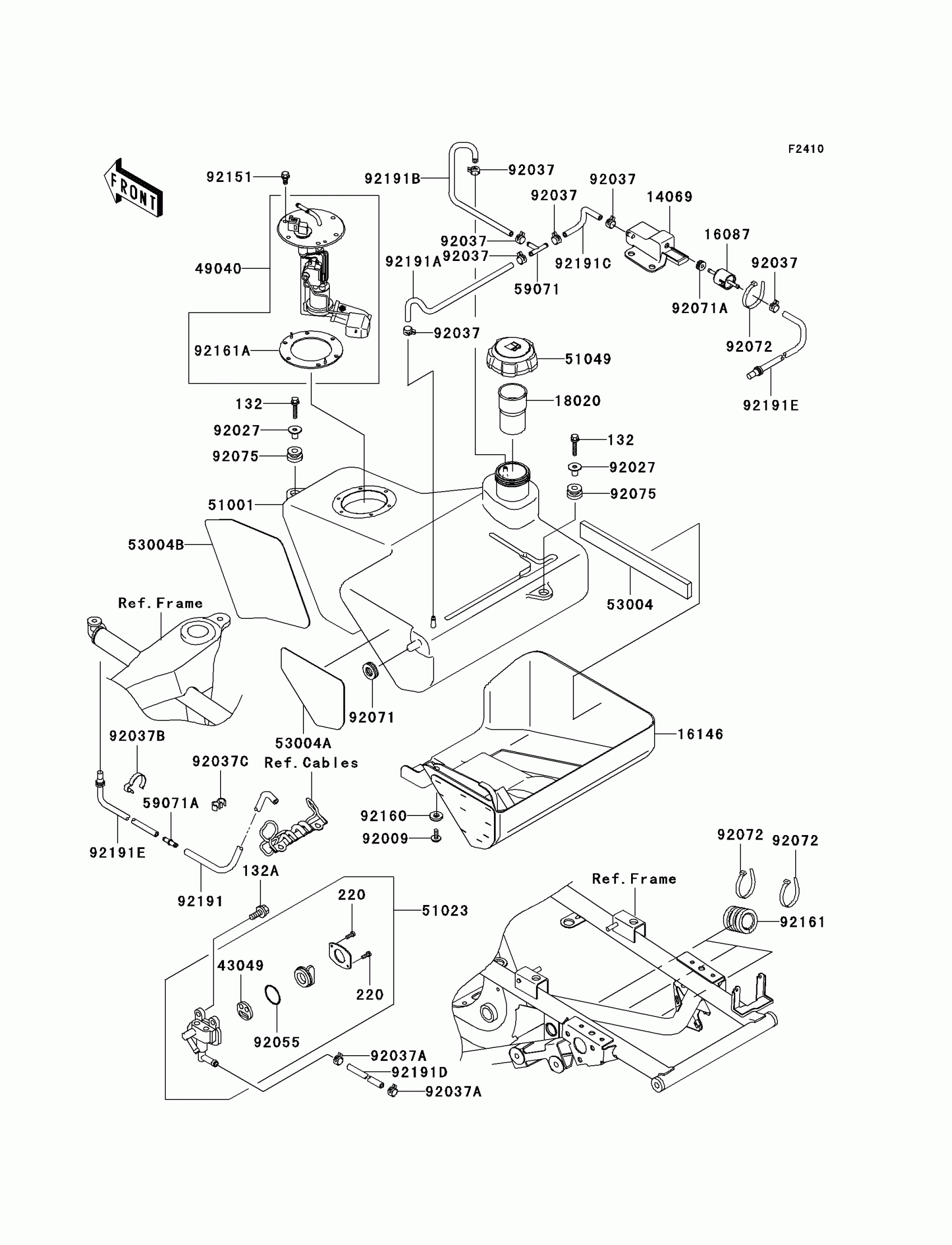

Kawasaki Prairie 650 4X4 Advantage Classic Fuel Tank Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

14069

BREATHER,TANK

14069-1069

$18.36

16087

VALVE-CHECK

16087-1054

Unavailable

16146

COVER-ASSY,FUEL TANK GUARD

16146-1226

$57.41

18020

BAFFLE,FUEL TANK CAP

18020-1278

$10.58

43049

PACKING,TAP VALVE

43049-1091

$5.54

49040

PUMP-FUEL

49040-1076

$917.12

51001

TANK-COMP-FUEL

51001-1638

$246.30

51023

TAP-ASSY,FUEL

51023-1341

$134.98

51049

CAP-TANK,FUEL

51049-1128

$70.13

53004

MAT,FUEL TANK COVER

53004-1161

$7.76

53004A

MAT,FUEL TANK

53004-1164

$15.41

53004B

MAT,FUEL TANK

53004-1165

$14.47

59071

JOINT

59071-3705

$4.15

59071A

JOINT

59071-3717

$3.07

92009

SCREW,6X12

92009-1480

$2.23

92027

COLLAR,L=16.1

92027-1847

$4.67

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP,TUBE

92037-1505

$3.63

92037B

CLAMP,HOSE

92037-1552

$9.63

92037C

CLAMP,HOSE

92037-1603

$3.81

92055

RING-O,TAP LEVER

92055-1419

$3.81

92071

GROMMET,AIR SUCTION VALVE

92071-1249

$3.68

92071A

GROMMET

92071-1266

$4.58

92072

BAND,L=188

92072-1239

$1.30

92075

DAMPER

92075-1787

$4.93

92151

BOLT,FLANGED,5X11.5

92151-1754

$1.36

92160

DAMPER

92160-1017

$5.07

92161

DAMPER,FUEL TANK,RR

92161-1111

$5.53

92161A

DAMPER,FUEL PUMP

92161-1272

$16.12

92191

TUBE,CANISTER-SEPARATOR,BLUE

92191-1384

$14.90

92191A

TUBE,TANK-FRONT

92191-1639

$10.86

92191B

TUBE,TANK-REAR

92191-1640

$11.71

92191C

TUBE,5X9X160

92191-1641

$3.88

92191D

TUBE,5.3X10.5X425

92191-1665

$11.17

92191E

TUBE,TANK BREATHER

92191-1666

$10.86
