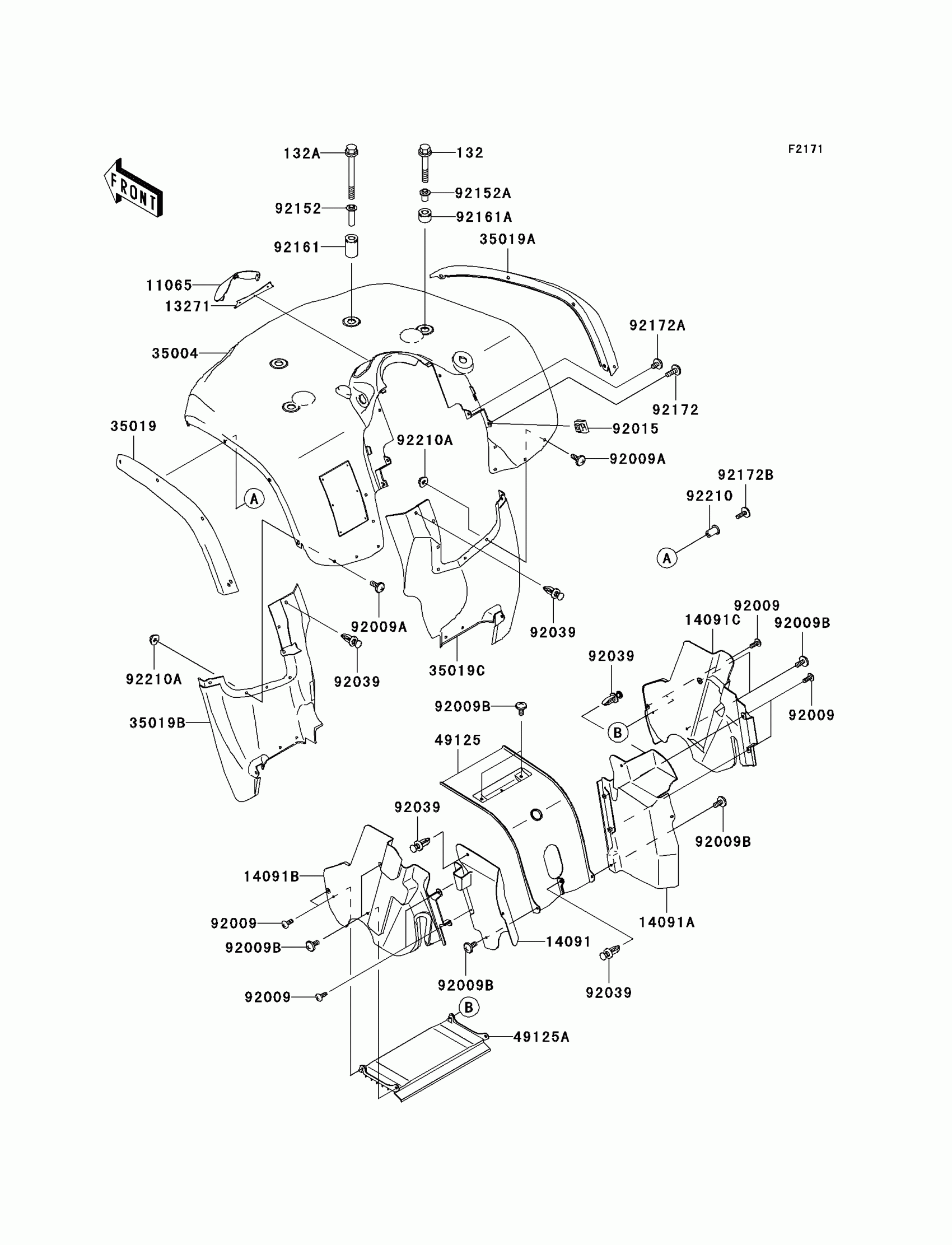

Kawasaki Prairie 650 4X4 Advantage Classic Front Fender(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X50

132J0850

Unavailable

132A

BOLT-FLANGED-SMALL

132J0880

Unavailable

13271

PLATE,FR FENDER CAP

13271-1640

$7.12

14091

COVER,SIDE,RR,LH

14091-1282

$14.88

14091A

COVER,SIDE,RR,RH

14091-1283

$14.88

14091B

COVER,SIDE,FR,LH

14091-1428

$18.24

14091C

COVER,SIDE,FR,RH

14091-1429

$18.24

35001

FENDER-ASSY-FRONT,CAMOUFLAGE

35001-1214-370

Unavailable

35019

FLAP,FR,SIDE,LH,F.BLACK

35019-1365-6Z

$22.91

35019A

FLAP,FR,SIDE,RH,F.BLACK

35019-1366-6Z

$22.91

35019B

FLAP,FR,RR,LH,F.BLACK

35019-1391-6Z

$37.10

35019C

FLAP,FR,RR,RH,F.BLACK

35019-1392-6Z

$37.10

49125

SHROUD,FR,LWR

49125-1079

$14.54

49125A

SHROUD,FR,UPP

49125-1081

$23.98

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92009A

SCREW,TAPPING,5X14

92009-1197

$2.99

92009B

SCREW,6X10

92009-1402

$1.73

92009C

SCREW,6X16

92009-1621

Unavailable

92009D

SCREW,5X18

92009-1655

$3.29

92009E

SCREW,6X14

92009-1662

$2.99

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92039

RIVET

92039-1229

$0.80

92152

COLLAR,L=65

92152-1226

$14.46

92152A

COLLAR,L=33.7

92152-1227

$11.95

92161

DAMPER,L=58.5

92161-1165

$6.66

92161A

DAMPER,L=25.5

92161-1166

$4.31

92210

NUT,POP,5MM

92210-1227

$2.15
