2002 Kawasaki Prairie 650 4X4 Advantage Classic Frame Diagram

← All diagrams

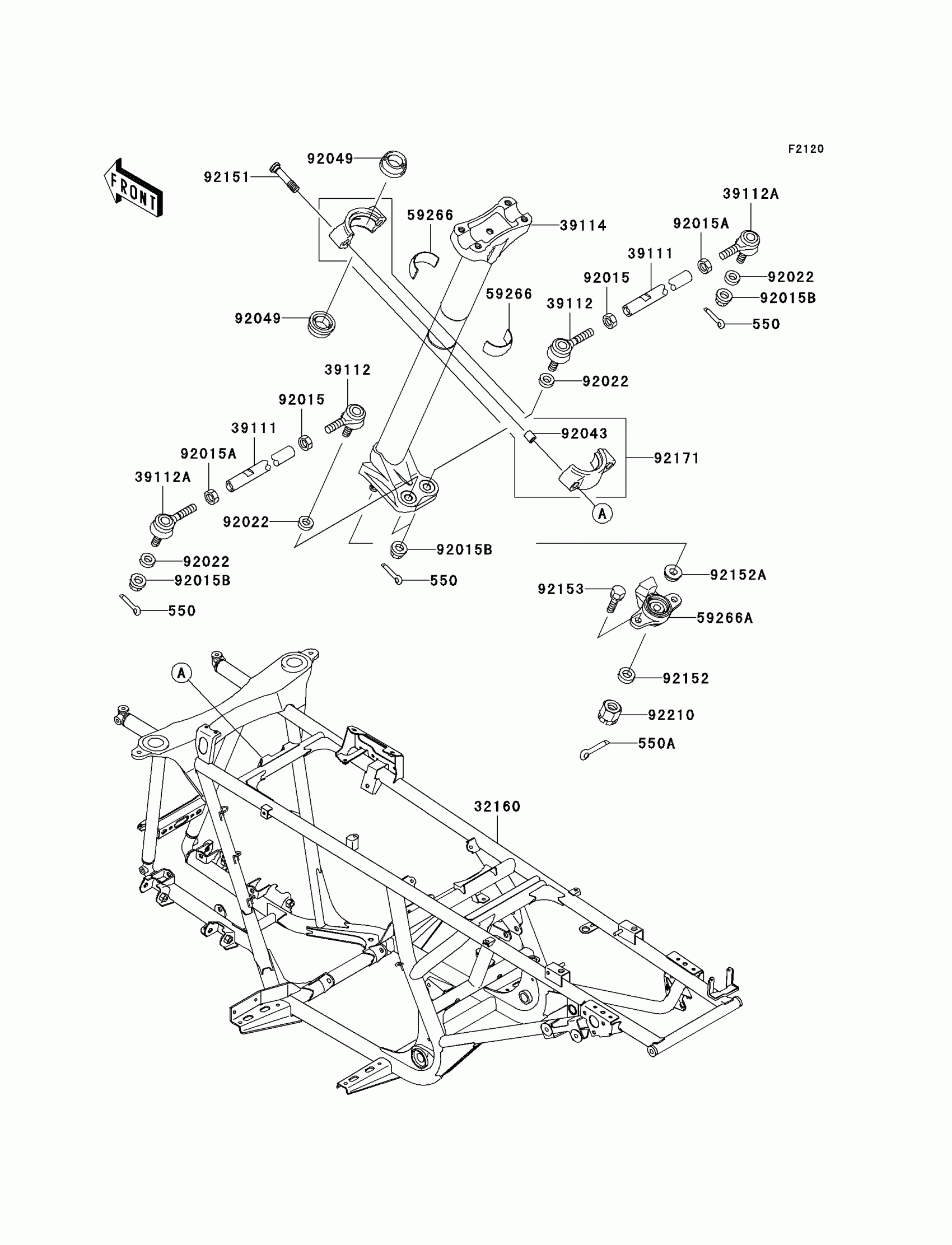

Find the part on the Frame diagram for your 2002 Kawasaki Prairie 650 4X4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 650 4X4 Advantage Classic Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

PIN-COTTER,3.0X25

550D3025

1
Out of stock

32160

FRAME-COMP

32160-1734

1
Out of stock

39111

ROD-TIE

39111-1090

1

$32.98

In stock

39112

RODEND-TIE

39112-1083

1

$92.31

In stock

39112A

RODEND-TIE

39112-1085

1

$50.81

In stock

39114

SHAFT-COMP-STRG

39114-1090

1

$251.16

In stock

59266

JOINT-BALL

59266-1117

1
Out of stock

59266A

JOINT-BALL

59266-1125

1

$149.46

In stock

92015

NUT,LOCK,10MM

92015-1460

1

$5.66

In stock

92015A

NUT,LOCK,10MM

92015-1494

1

$5.42

In stock

92015B

1

$7.86

In stock

92022

WASHER,10.2X20X1.5

92022-3742

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92049

SEAL-OIL,SR7 39.6X49X6-2 NS

92049-1580

1
Out of stock

92151

BOLT,8X53

92151-1711

1

$9.10

In stock

92152

COLLAR,12X21.3X7

92152-1351

1

$12.24

In stock

92152A

COLLAR

92152-1358

1

$11.25

In stock

92153

BOLT,8X30

92153-1065

1
Out of stock

92171

1

$62.57

In stock

92210

NUT,12MM

92210-7501

1
Out of stock
