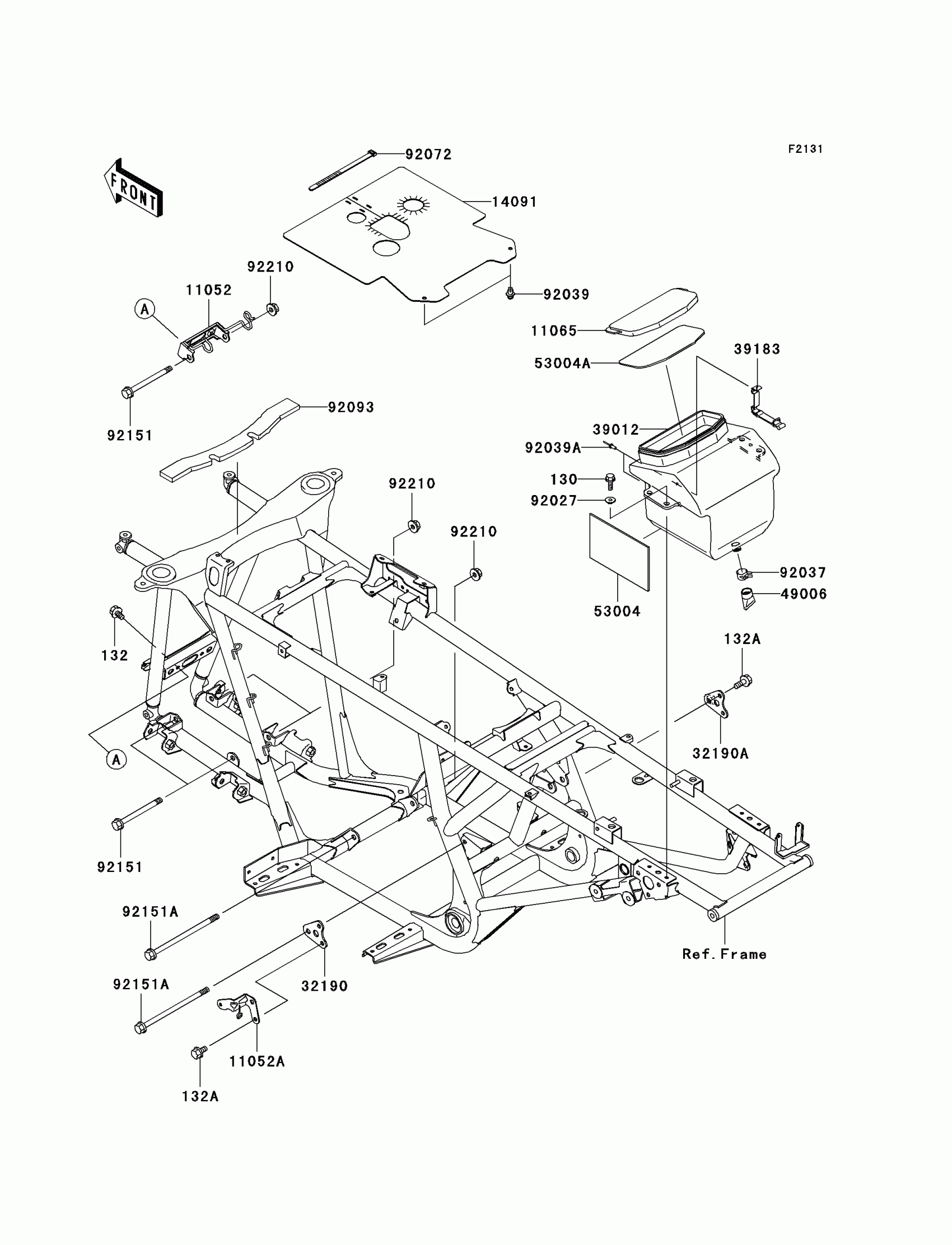

Kawasaki Prairie 650 4X4 Advantage Classic Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,6X20

130G0620

$1.69

132

BOLT-FLANGED-SMALL,8X14

132J0814

$2.52

132A

BOLT-FLANGED-SMALL,8X16

132J0816

$3.84

11052

BRACKET,FRONT DIFF

11052-1181

$26.07

11052A

BRACKET,RESERVOIR TANK

11052-1361

Unavailable

11065

CAP,STORAGE CASE

11065-1154

Unavailable

14091

COVER,FR,UPP

14091-1347

$20.30

32190

BRACKET-ENGINE,RR,UPP,LH

32190-1203

$4.19

32190A

BRACKET-ENGINE,RR,UPP,RH

32190-1204

$5.36

39012

CASE-STORAGE

39012-1064

$45.91

39183

BAND-ASSY,TOOL BAG

39183-1065

$9.49

49006

BOOT

49006-1292

$7.77

53004

MAT,STORAGE CASE

53004-1139

$18.34

53004A

MAT,STORAGE CASE CAP

53004-1147

$8.19

92027

COLLAR

92027-1936

$6.22

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92039

RIVET

92039-1229

$1.19

92039A

RIVET,4.8MM

92039-3719

$6.22

92072

BAND,L=123

92072-030

$5.00

92093

SEAL

92093-1555

$10.89

92151

BOLT,FLANGED,10X120

92151-1914

$19.22

92151A

BOLT,FLANGED,10X190

92151-1915

$16.41

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35
