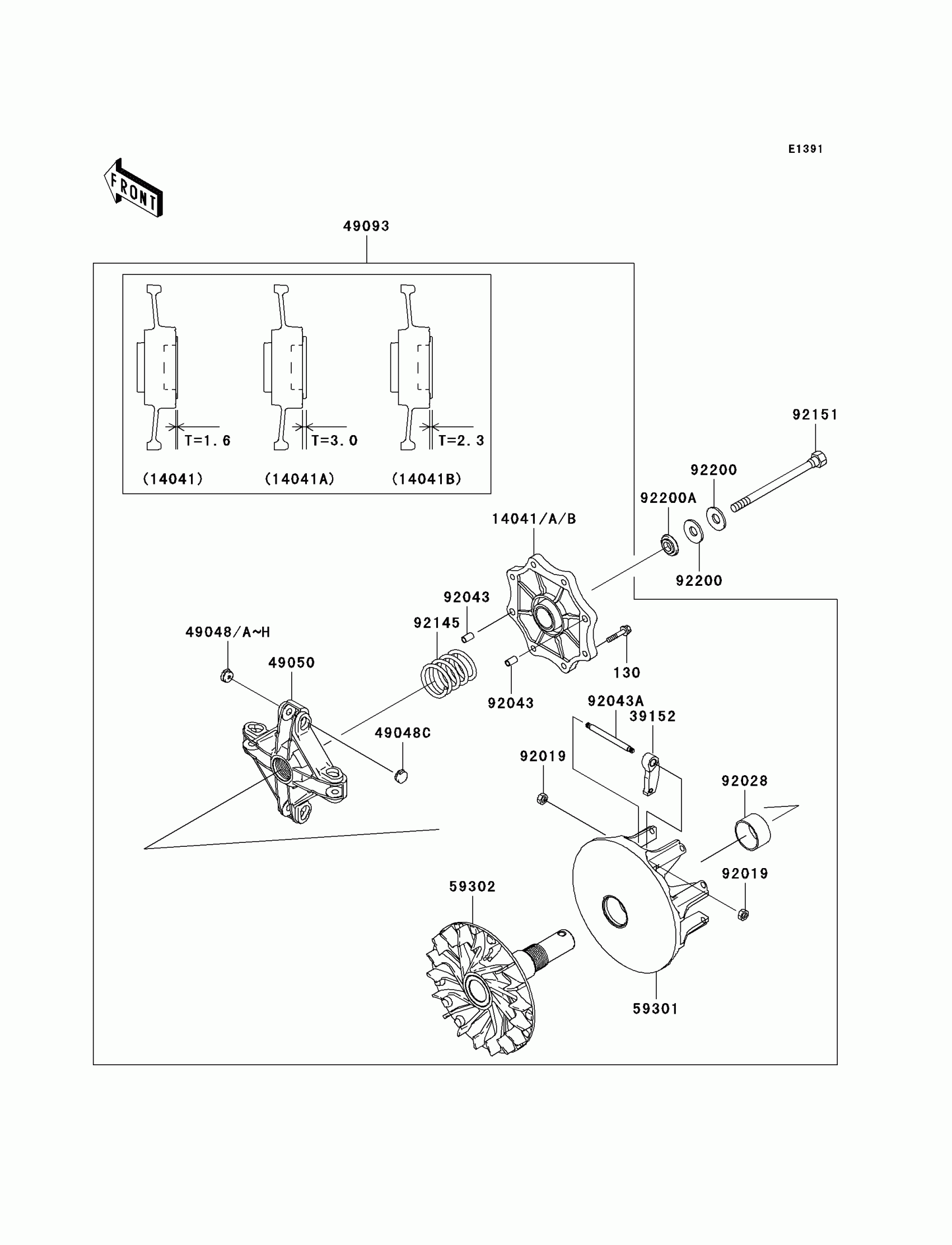

Kawasaki Prairie 650 4X4 Advantage Classic Drive Converter(-VF650AE535560) Diagram

Description

Price

130

BOLT-FLANGED,6X30

130T0630

$2.33

14041

COVER-COMP,RED

14041-1159

Unavailable

14041A

COVER-COMP,BLUE

14041-1160

Unavailable

14041B

COVER-COMP,STD

14041-1161

$116.67

39152

WEIGHT-RAMP

39152-1081

$56.77

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

$14.82

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-1078

$139.98

49093

CONVERTER-ASSY-DRIVE

49093-1072

$1,125.68

59301

SHEAVE-MOVABLE

59301-1062

$195.58

59302

SHEAVE-COMP

59302-1107

$337.75

92019

NUT,LOCK,6MM

92019-008

$4.26

92028

BUSHING

92028-1975

$12.80

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

92043-1573

$13.04

92145

SPRING

92145-1293

$18.31

92151

BOLT,12X165

92151-1393

$24.22

92200

WASHER,SPRING

92200-1504

$4.18

92200A

WASHER

92200-1634

$9.07
