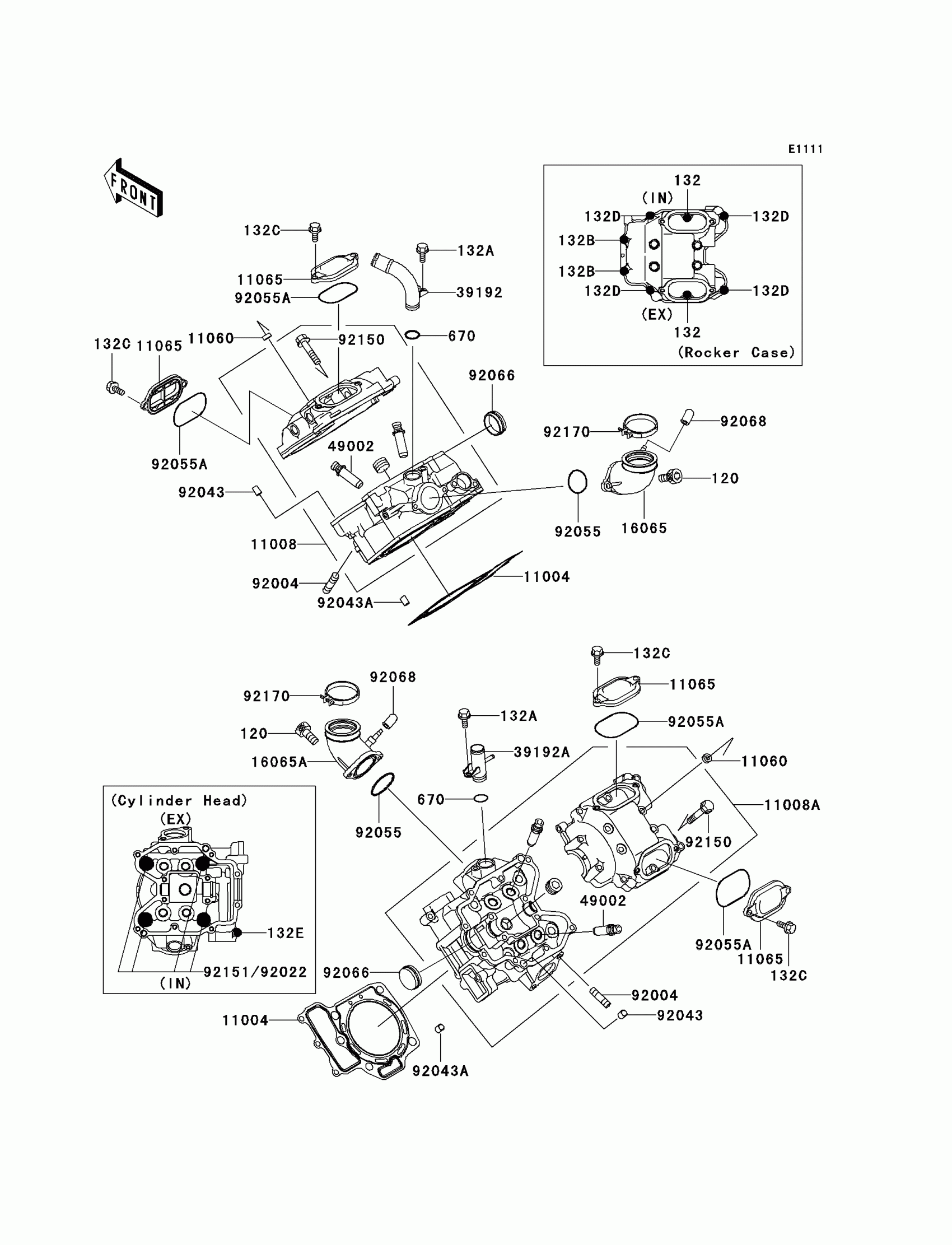

Kawasaki Prairie 650 4X4 Advantage Classic Cylinder Head Diagram

Description

Price

120

BOLT-SOCKET,6X20

120Z0620

$4.35

132

BOLT-FLANGED-SMALL,6X25

132H0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

132B

BOLT-FLANGED-SMALL,6X130

132Y06130

Unavailable

132C

BOLT-FLANGED-SMALL,6X20

132Y0620

$3.84

132D

BOLT-FLANGED-SMALL,6X30

132Y0630

$3.41

132E

BOLT-FLANGED-SMALL

132Y0695

$6.09

670

O RING,16MM

670B2016

$1.36

11004

GASKET-HEAD

11004-1373

Unavailable

11008

HEAD-COMP-CYLINDER,FR

11008-1381

Unavailable

11008A

HEAD-COMP-CYLINDER,RR

11008-1386

Unavailable

11060

GASKET,6.2X12X0.3

11060-1994

$2.39

11065

CAP,ROCKER CASE

11065-1152

$24.91

16065

HOLDER-CARBURETOR,FR

16065-1370

$45.26

16065A

HOLDER-CARBURETOR,RR

16065-1371

$45.26

39192

PIPE-WATER

39192-1132

$21.01

39192A

PIPE-WATER

39192-1133

$30.81

49002

GUIDE-VALVE

49002-1097

Unavailable

92004

STUD,8X22

92004-1217

$5.65

92022

WASHER,11.5X20.5X1.6

92022-1720

$4.31

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,38MM

92055-1295

$16.33

92055A

RING-O,55.6X2.4

92055-1644

$7.71

92066

PLUG

92066-1289

$14.36

92068

PLUG,12X25

92068-006

$4.26

92150

BOLT,6X55

92150-1302

$6.34

92151

BOLT,FLANGED,10X150

92151-1917

$20.09

92170

CLAMP

92170-1722

$9.05
