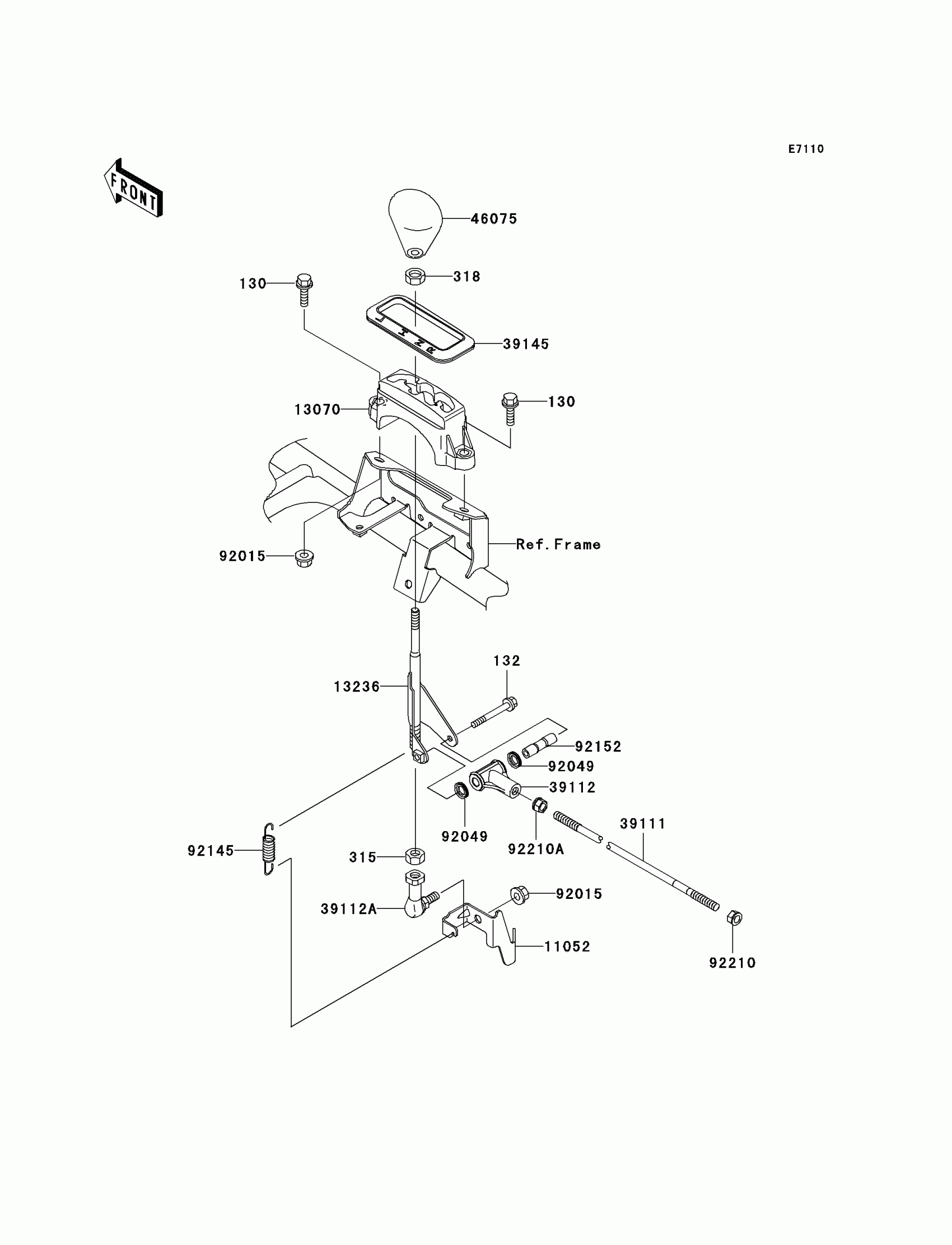

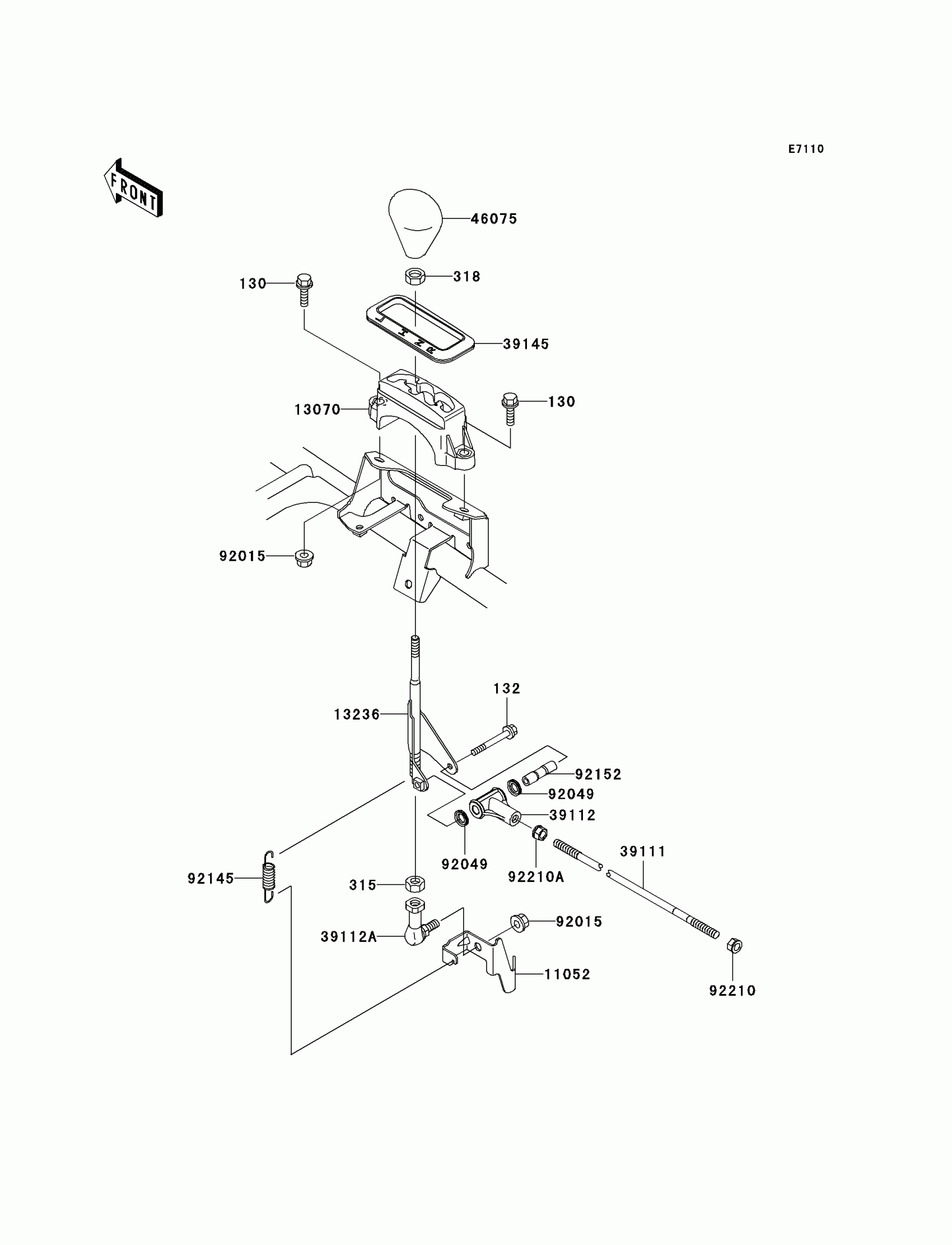

2002 Kawasaki Prairie 650 4X4 Advantage Classic Control Diagram

← All diagrams

Find the part on the Control diagram for your 2002 Kawasaki Prairie 650 4X4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 650 4X4 Advantage Classic Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25

130Z0825

1
Out of stock

132

BOLT-FLANGED-SMALL,6X50

132J0650

1
Out of stock

315

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

318

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

11052

BRACKET,CONTROL

11052-1441

1
Out of stock

13070

GUIDE,CONTROL SHAFT

13070-1396

1
Out of stock

13236

LEVER-COMP,SHIFT

13236-1384

1
Out of stock

39111

ROD-TIE,SHIFT

39111-1174

1

$20.88

In stock

39112

RODEND-TIE

39112-1079

1

$25.83

In stock

39112A

RODEND-TIE,CONTROL PIVOT

39112-1084

1
Out of stock

39145

1

$4.46

In stock

46075

GRIP,SHIFT

46075-1185

1

$27.63

In stock

92015

NUT,8MM

92015-1432

1
Out of stock

92049

SEAL-OIL

92049-1458

1
Out of stock

92145

SPRING,CONTROL

92145-1441

1
Out of stock

92152

COLLAR,RODEND-TIE

92152-1222

1
Out of stock

92210

NUT,8MM

92210-1242

1
Out of stock

92210A

NUT,LH,THREAD 8MM

92210-1284

1
Out of stock
