2002 Kawasaki Prairie 650 4X4 Advantage Classic Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2002 Kawasaki Prairie 650 4X4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

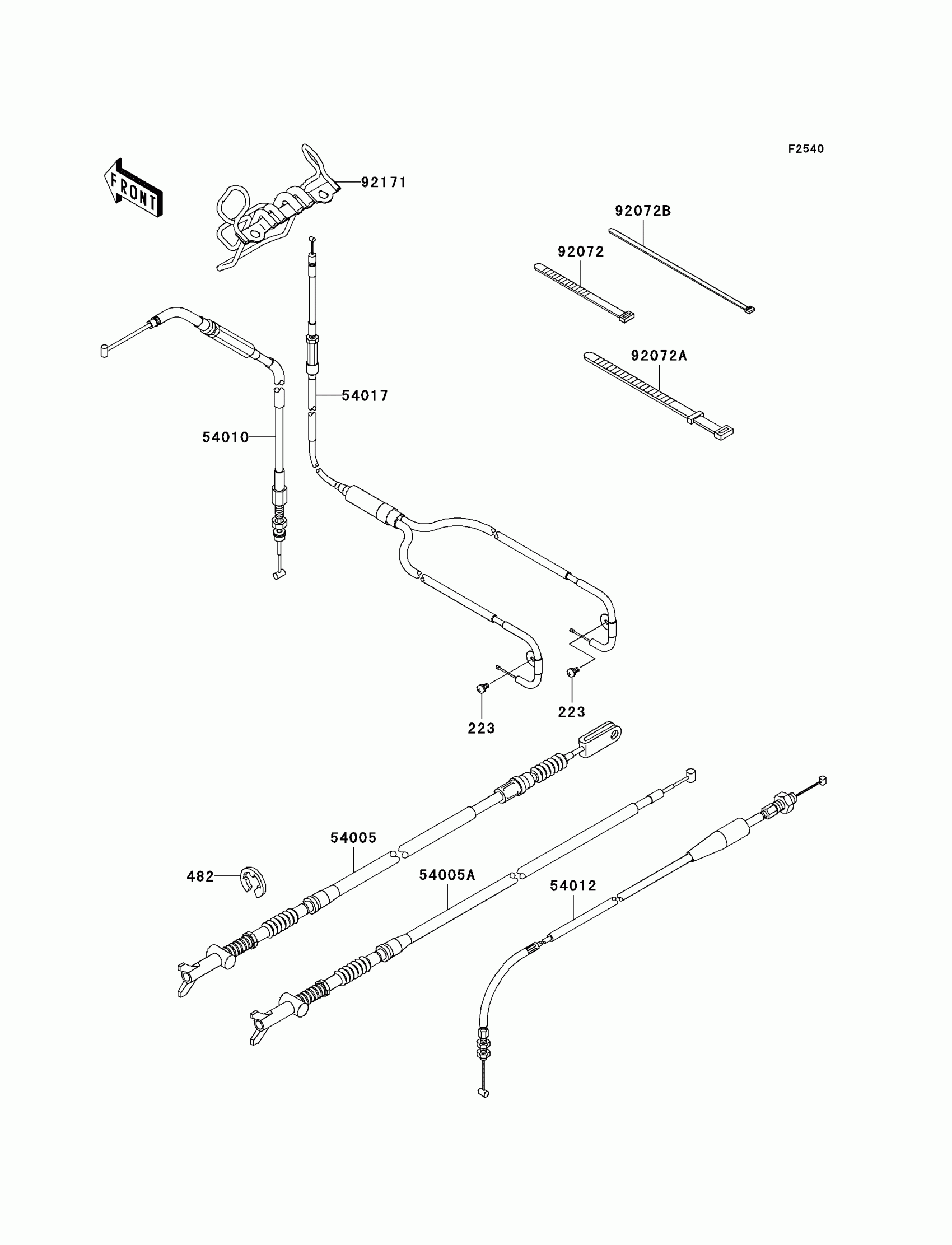

2002 Kawasaki Prairie 650 4X4 Advantage Classic Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

223

SCREW-PAN-WS-CROS,4X8

223D0408

1
Out of stock

482

CIRCLIP-TYPE-E,8MM

482L8000

1
Out of stock

54005

CABLE-BRAKE,REAR

54005-1203

1
Out of stock

54005A

CABLE-BRAKE,PARKING

54005-1211

1
Out of stock

54010

CABLE,FRONT DIFF LOCK

54010-1123

1
Out of stock

54012

CABLE-THROTTLE

54012-1646

1
Out of stock

54017

CABLE-STARTER

54017-1222

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock

92072B

BAND,L=188

92072-1239

1
Out of stock

92171

CLAMP,CABLE

92171-1326

1
Out of stock
