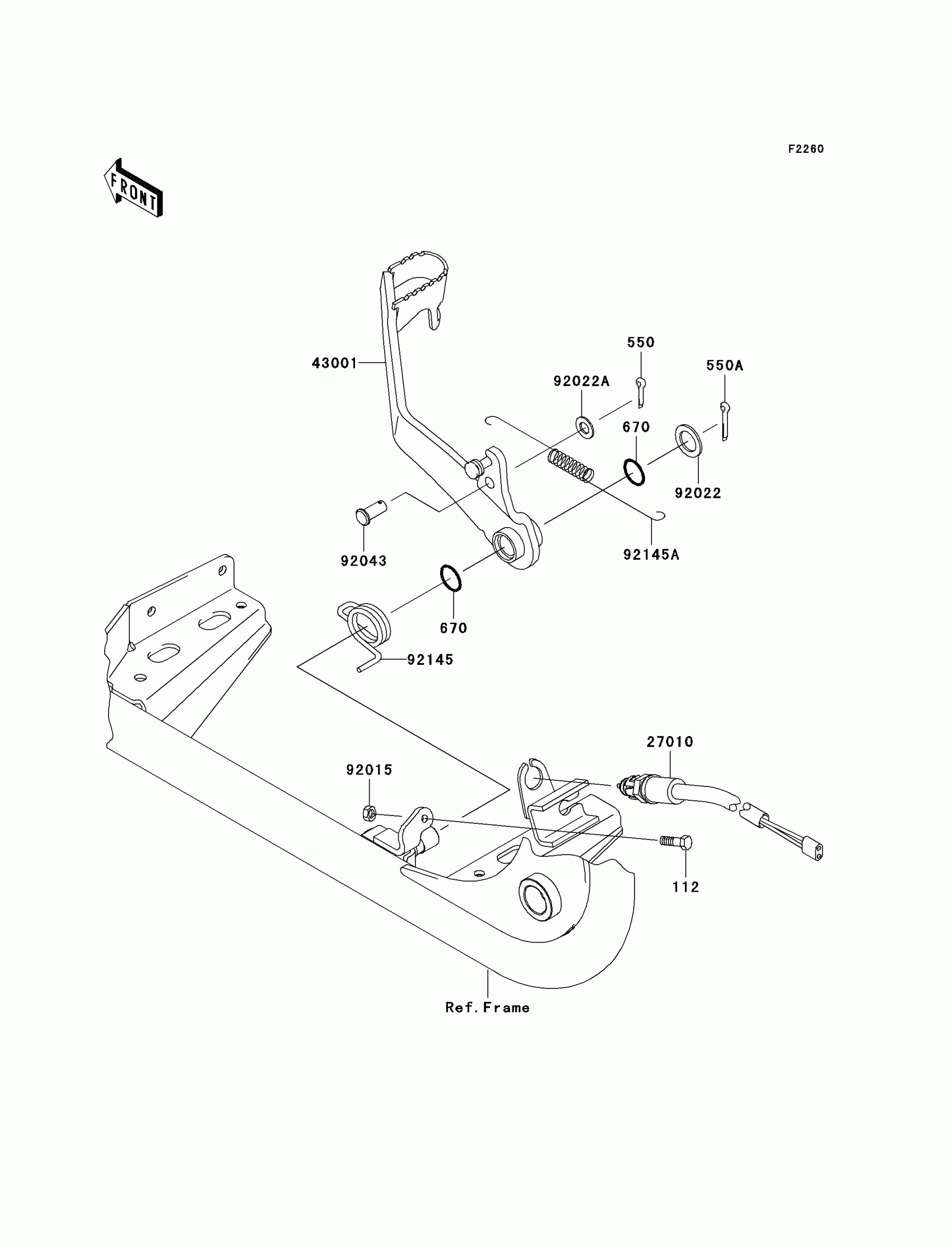

Kawasaki Prairie 650 4X4 Advantage Classic Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X20

112G0620

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.0X22

550D2022

$1.80

670

O RING,15MM

670B2015

$1.08

27010

SWITCH,BRAKE LAMP

27010-1301

$41.44

43001

LEVER-BRAKE,PEDAL

43001-1441

$65.08

92015

NUT,6MM

92015-1410

$3.53

92022

WASHER,15.5X24X1.6

92022-1049

$5.71

92022A

WASHER,8.5X16X1.2

92022-1582

$0.81

92043

PIN,8X16

92043-1013

$7.54

92145

SPRING,BRAKE PEDAL RETURN

92145-1421

$4.78

92145A

SPRING,BRAKE SWITCH

92145-1422

$4.39
