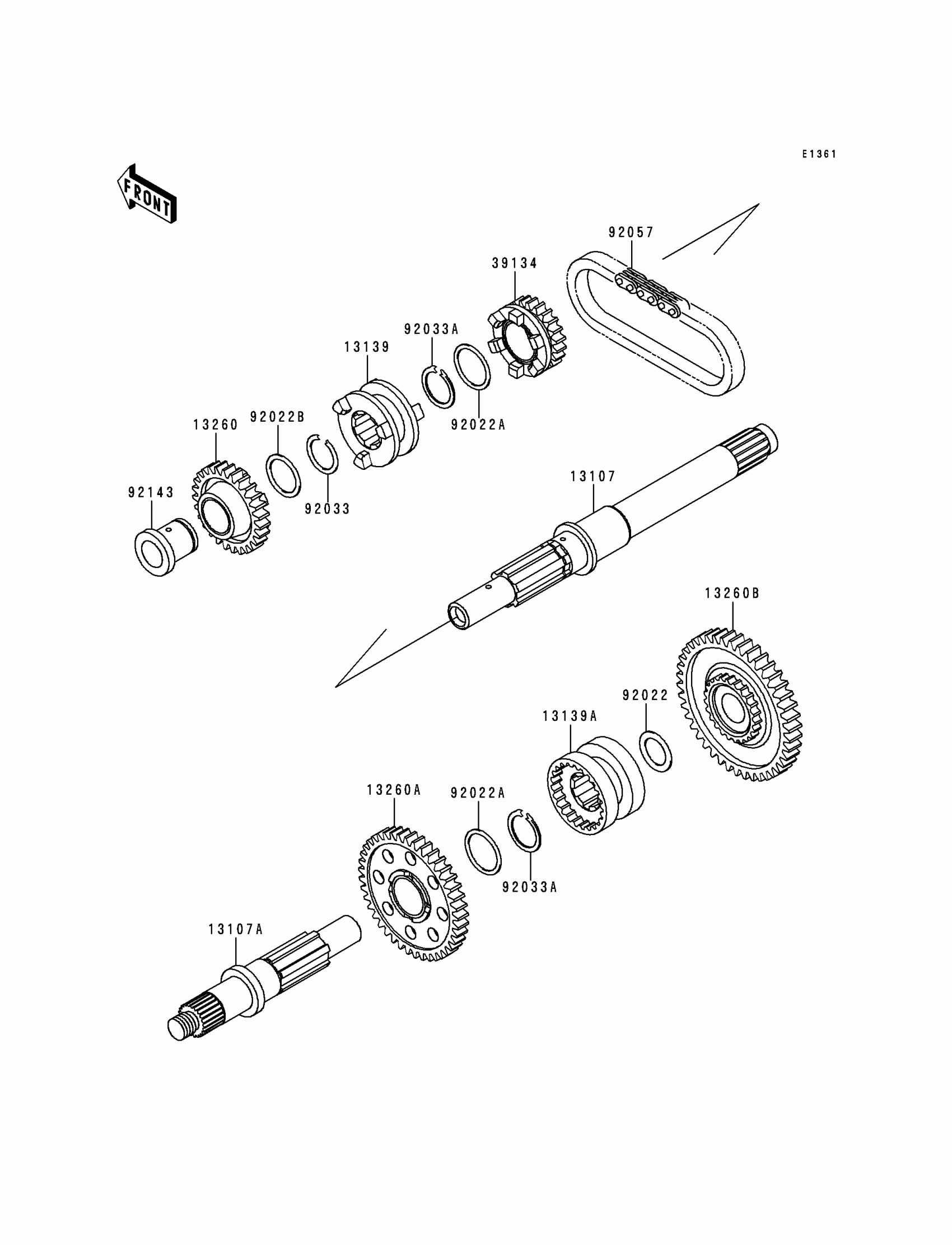

Kawasaki Prairie 400 Transmission Diagram

Description

Price

13107

SHAFT,INPUT

13107-1361

Unavailable

13107A

SHAFT,OUTPUT

13107-1362

Unavailable

13139

SHIFTER,FORWARD/REVERSE

13139-1074

Unavailable

13139A

SHIFTER,HI/LOW

13139-1076

Unavailable

13260

GEAR,INPUT FORWARD,27T

13260-1638

Unavailable

13260A

GEAR,OUTPUT,41T

13260-1670

Unavailable

13260B

GEAR,OUTPUT LOW,42T

13260-1675

$148.47

39134

SPROCKET-DRIVE,REVERSE,22T

39134-1058

Unavailable

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,28.1X34X1.0

92022-1731

$7.29

92022B

WASHER,25.3X32X1

92022-1800

$5.00

92033

RING-SNAP,24MM

92033-026

$8.79

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92057

CHAIN,REVERSE,81RH2520

92057-1421

$43.61

92143

COLLAR,FORWARD GEAR

92143-1899

Unavailable
