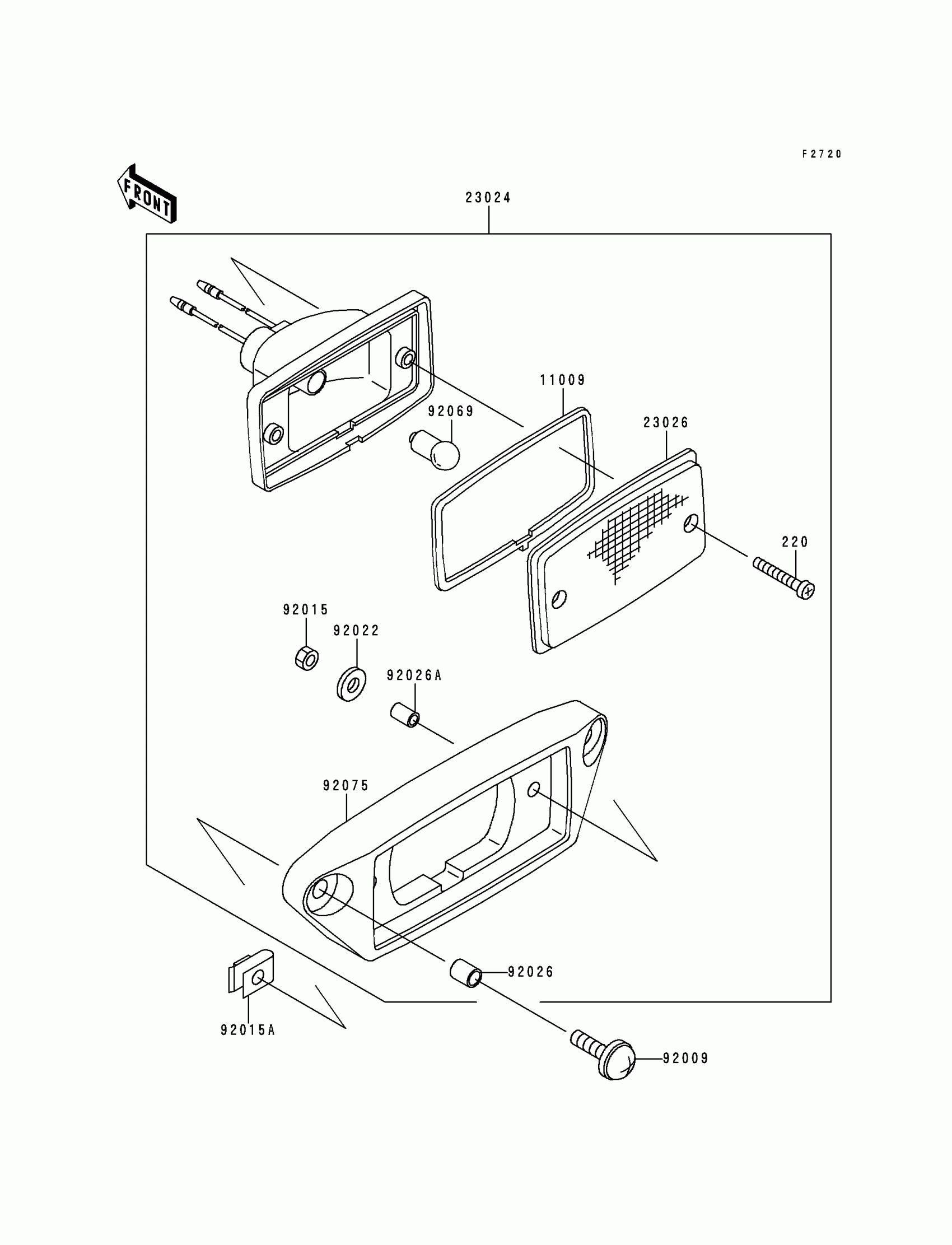

Kawasaki Prairie 400 Taillight(s) Diagram

Description

Price

220

SCREW-PAN-CROS

220B0430

$0.77

11009

GASKET,TAIL LAMP

11009-4004

$7.61

23024

LAMP-ASSY-TAIL

23024-1123

$117.54

23026

LENS,TAIL LAMP

23026-4003

$20.67

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92015

NUT,4MM

92015-1550

$3.35

92015A

NUT,CLIP,6MM

92015-1904

$6.57

92022

WASHER,PLAIN,4MM

92022-1762

$3.35

92026

SPACER,6.3X8.3X10

92026-1260

$4.60

92026A

SPACER,4.5X6.5X10

92026-1261

$5.24

92069

BULB,12V 8W

92069-1012

$5.18

92075

DAMPER,TAIL LAMP

92075-1782

$43.64
