Description

Price

120

BOLT-SOCKET,8X16

120P0816

$4.15

130

BOLT,FLANGED,6X25

130G0625

$1.17

11012

CAP,TERMINAL

11012-1354

$10.19

13194

CLUTCH-ONEWAY

13194-1094

$126.13

16085

GEAR,STARTER

16085-1238

$125.04

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

$6.22

21039

BRUSH,CARBON

21039-1063

$85.85

21040

SPRING-BRUSH

21040-1057

$8.42

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-1208

$638.74

26011

WIRE-LEAD,STARTER MOTOR

26011-1648

Unavailable

27010

SWITCH,MAGNETIC

27010-1098

Unavailable

39076

LIMITER,STARTER

39076-1066

$150.20

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92022A

WASHER,LOCK,T=2.0

92022-1458

$6.22

92048

RACE,ONEWAY CLUTCH

92048-1090

$108.96

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92150

BOLT

92150-1243

$10.89

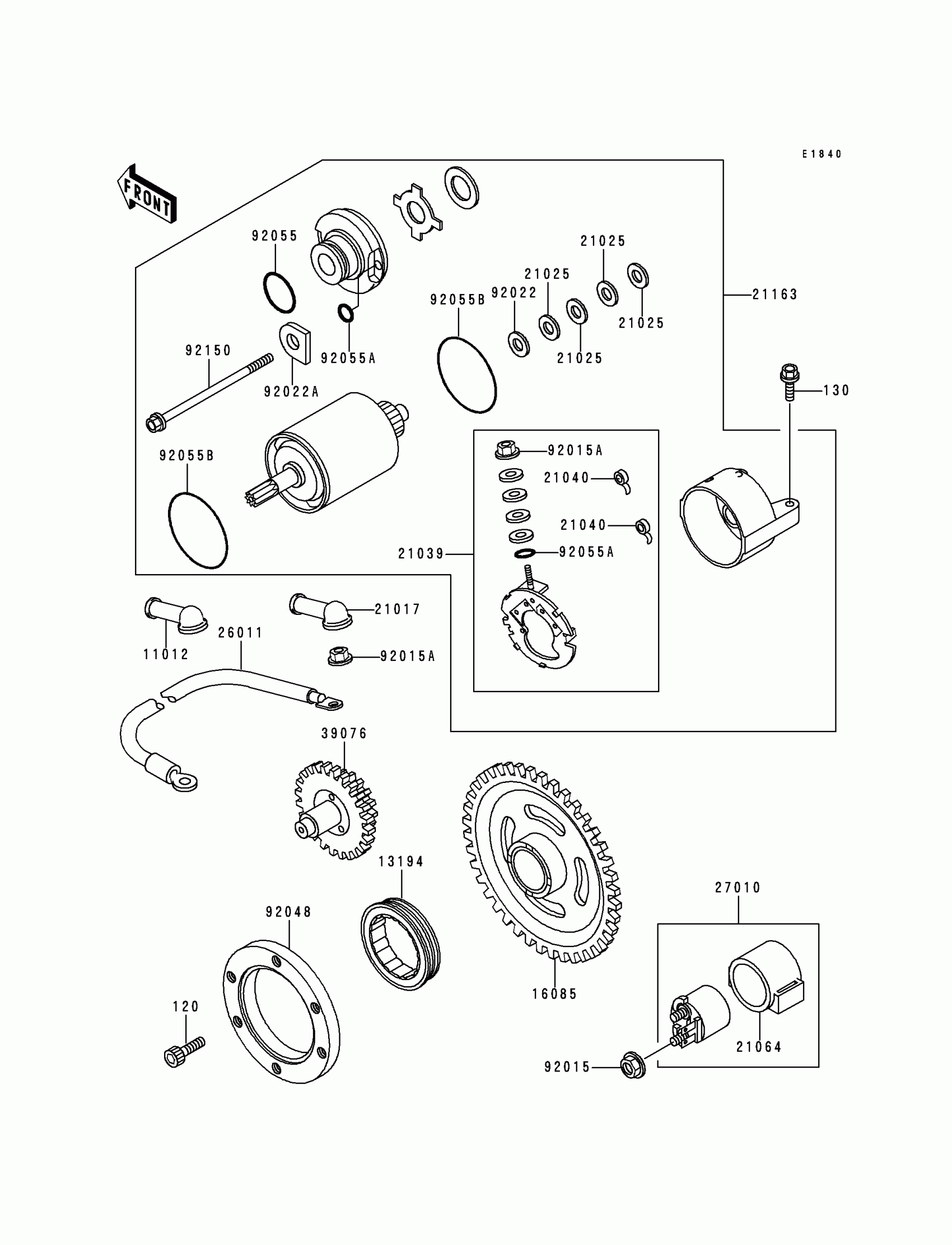

Kawasaki Prairie 400 Starter Motor Diagram

BOLT-SOCKET,8X16

BOLT,FLANGED,6X25

CAP,TERMINAL

CLUTCH-ONEWAY

GEAR,STARTER

GROMMET,STARTER TERMINAL

WASHER,9.1X18X0.2

BRUSH,CARBON

SPRING-BRUSH

DAMPER,MAGNETIC SWITCH

STARTER-ELECTRIC

WIRE-LEAD,STARTER MOTOR

SWITCH,MAGNETIC

LIMITER,STARTER

NUT,FLANGED,6MM

NUT,STARTER MOTOR

WASHER,9.1X18X0.8

WASHER,LOCK,T=2.0

RACE,ONEWAY CLUTCH

RING-O

RING-O,4.5X2.0

RING-O,STARTER MOTOR

BOLT
