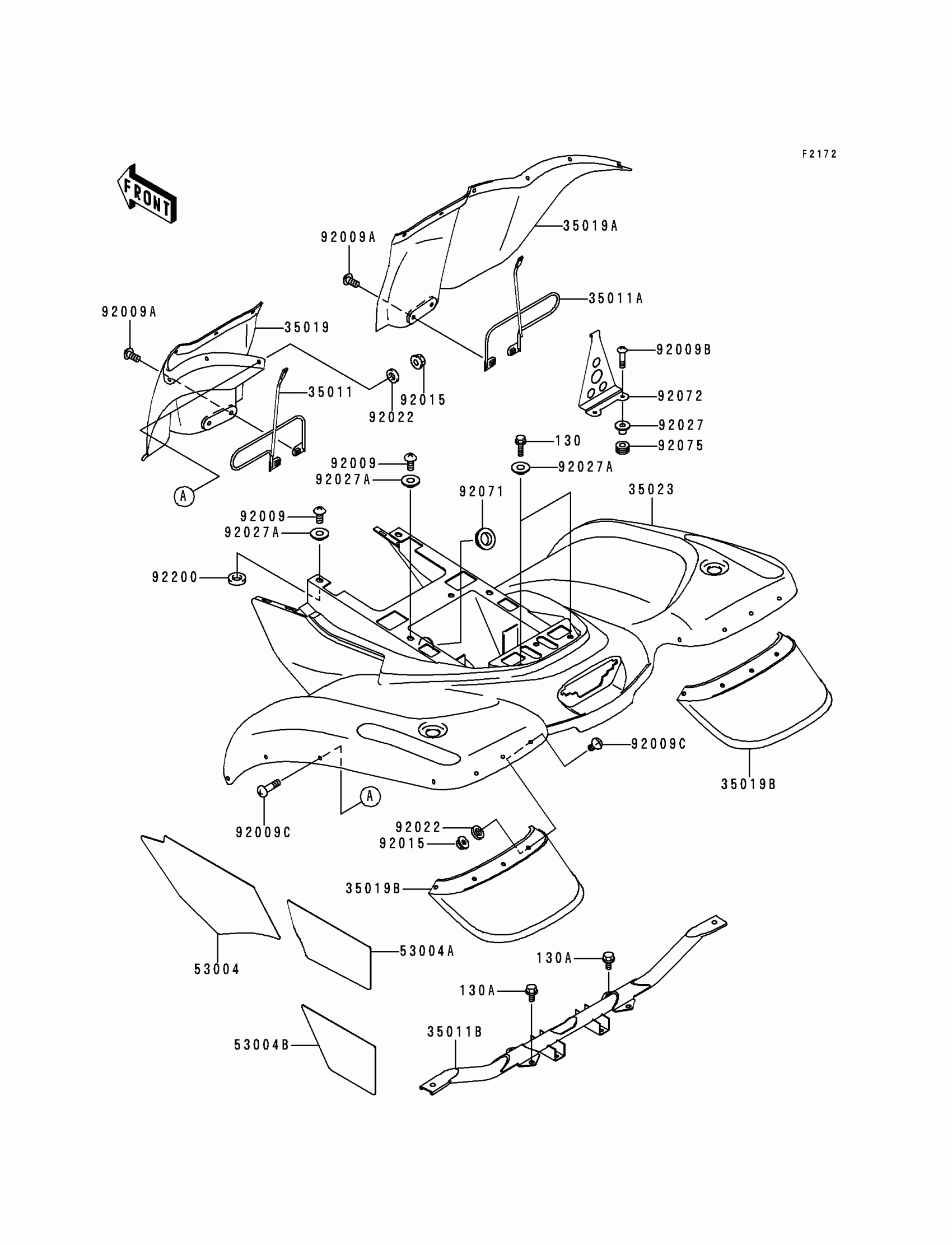

Kawasaki Prairie 400 Rear Fender(s) Diagram
#
Description
Price
130
BOLT-FLANGED,6X18
130C0618
$1.69
130A
BOLT-FLANGED,8X16
130J0816
$1.66
35011
STAY,REAR FLAP,LH
35011-1759
Unavailable
35011A
STAY,REAR FLAP,RH
35011-1760
Unavailable
35011B
STAY,REAR FENDER
35011-1782
$60.70
35019
FLAP,RR,FR,LH,F.BLACK
35019-1334-6Z
$53.31
35019A
FLAP,RR,FR,RH,F.BLACK
35019-1335-6Z
$53.31
35019B
FLAP,RR,RR,F.BLACK
35019-1336-6Z
$22.71
35023
FENDER-REAR,S.GRAY
35023-1439-RG
$239.72
53004
MAT,REAR FENDER
53004-1111
Unavailable
53004A
MAT,REAR FENDER
53004-1112
Unavailable
53004B
MAT,REAR FENDER
53004-1113
Unavailable
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X14
92009-1288
$3.92
92009B
SCREW,6X25
92009-1465
$3.92
92009C
SCREW,6X16
92009-1621
Unavailable
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92022
WASHER,6.5X16X1.0
92022-1093
$2.08
92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
$5.57
92027A
COLLAR,L=4.7
92027-1964
$7.34
92071
GROMMET
92071-1237
$7.90
92072
BAND,BATTERY CASE
92072-1328
Unavailable
92075
DAMPER,CASE
92075-222
$7.34
92200
WASHER,8.5X20X2.3
92200-1055
$3.94
