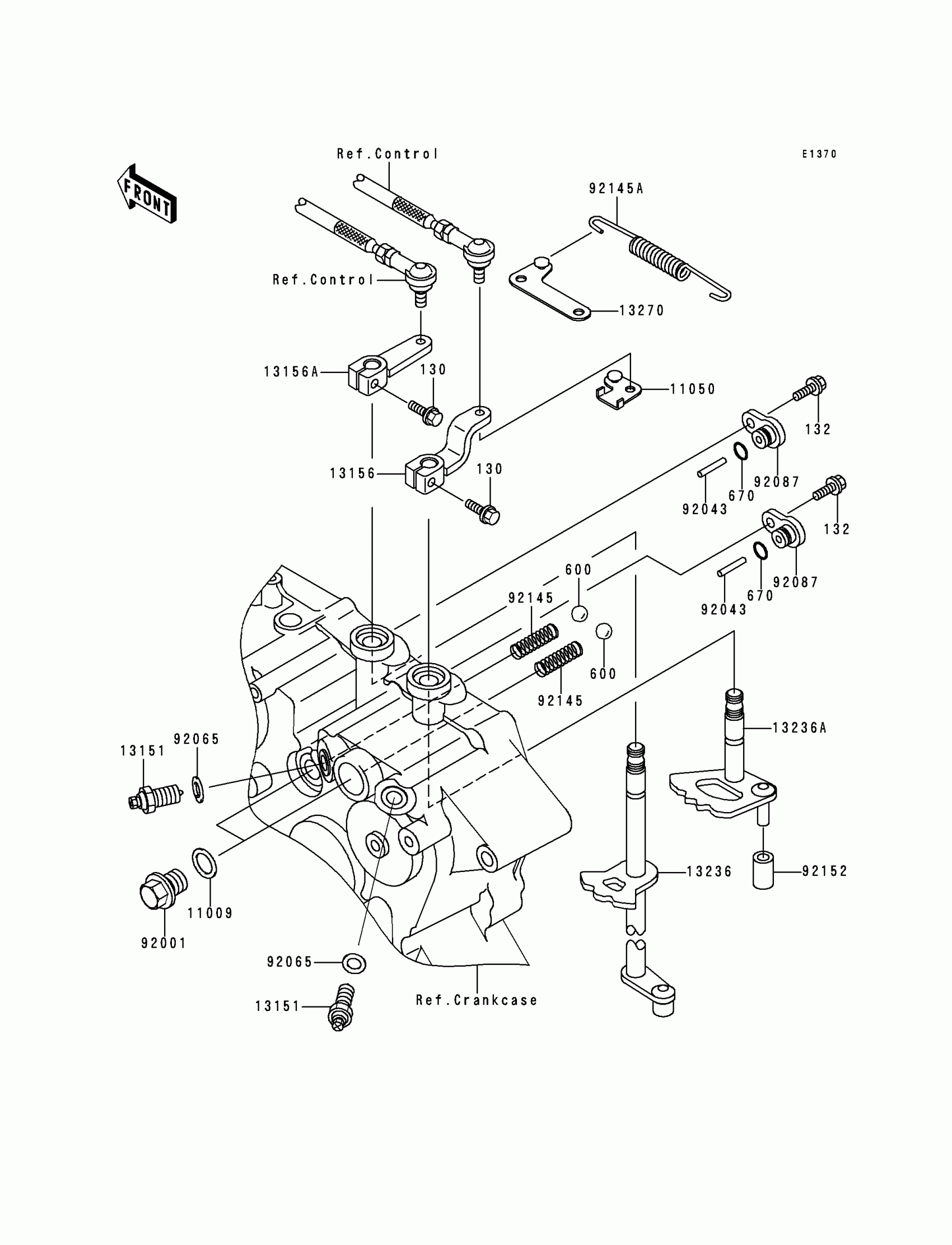

Kawasaki Prairie 400 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130P0620

$1.70

132

BOLT-FLANGED-SMALL

132J0614

$2.33

600

BALL-STEEL,13/32"

600A1300

$0.94

670

O RING,10MM

670D1510

$4.69

11009

GASKET,15.5X22X1

11009-1008

$3.63

11050

BRACKET

11050-1386

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1069

$27.37

13156

LEVER-CHANGE,FORWARD/REVERSE

13156-1394

Unavailable

13156A

LEVER-CHANGE,HI/LOW

13156-1395

$13.30

13236

LEVER-COMP,HI/LOW

13236-1292

Unavailable

13236A

LEVER-COMP,FORWARD/REVERSE

13236-1313

Unavailable

13270

PLATE

13270-1850

Unavailable

92001

BOLT,NEUTRAL POSITION

92001-1037

$13.37

92043

92043-1415

$2.59

92065

GASKET,10.5X16X1

92065-058

$3.96

92087

BUSHING-METER GEAR

92087-1058

$8.03

92145

SPRING

92145-1075

$6.26

92145A

SPRING

92145-1079

$13.55

92152

COLLAR,LEVER

92152-1073

Unavailable

Kawasaki Prairie 400 Gear Change Mechanism Diagram

BOLT-FLANGED,6X20

BOLT-FLANGED-SMALL

BALL-STEEL,13/32"

O RING,10MM

GASKET,15.5X22X1

BRACKET

SWITCH-COMP,NEUTRAL

LEVER-CHANGE,FORWARD/REVERSE

LEVER-CHANGE,HI/LOW

LEVER-COMP,HI/LOW

LEVER-COMP,FORWARD/REVERSE

PLATE

BOLT,NEUTRAL POSITION

PIN

GASKET,10.5X16X1

BUSHING-METER GEAR

SPRING

SPRING

COLLAR,LEVER
