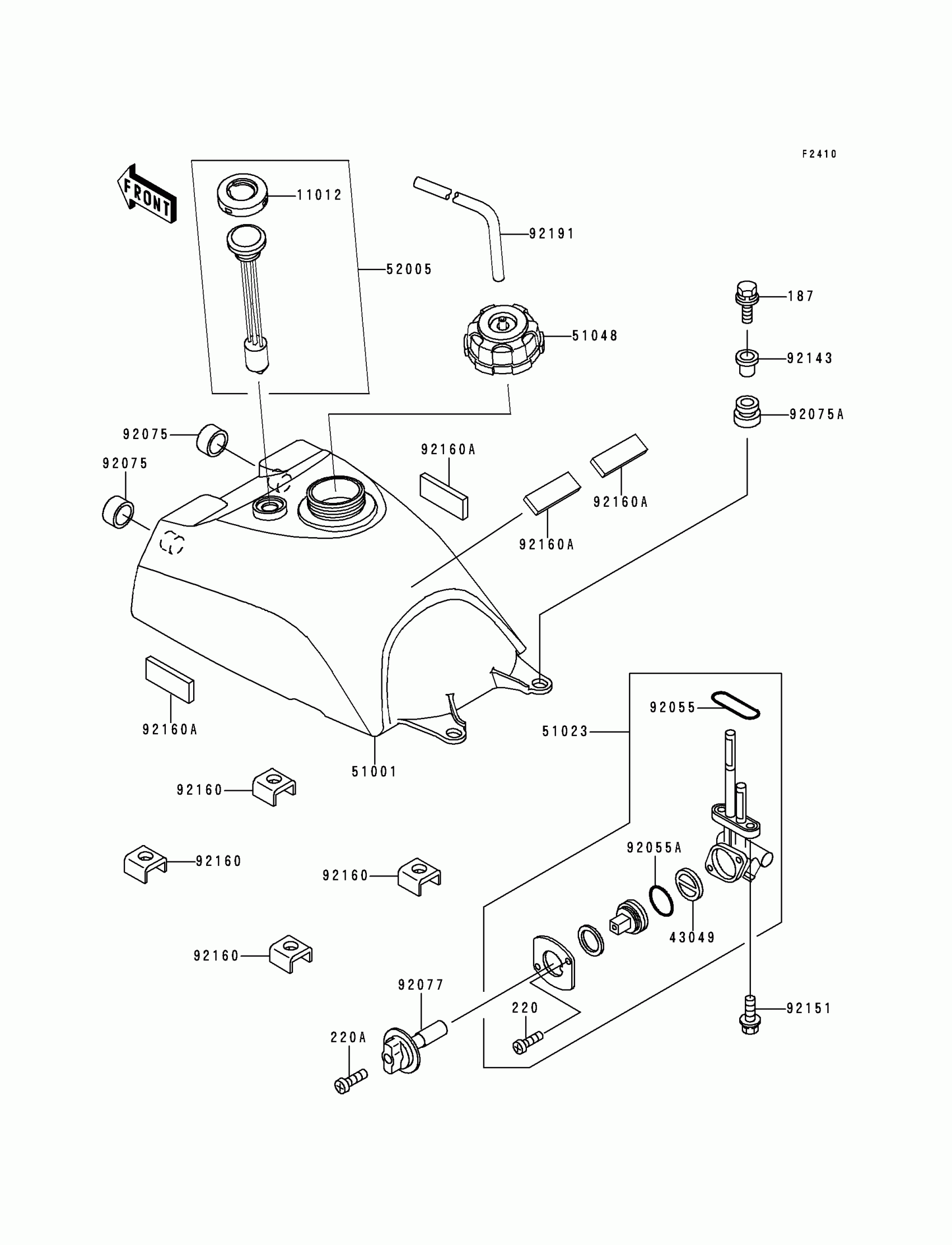

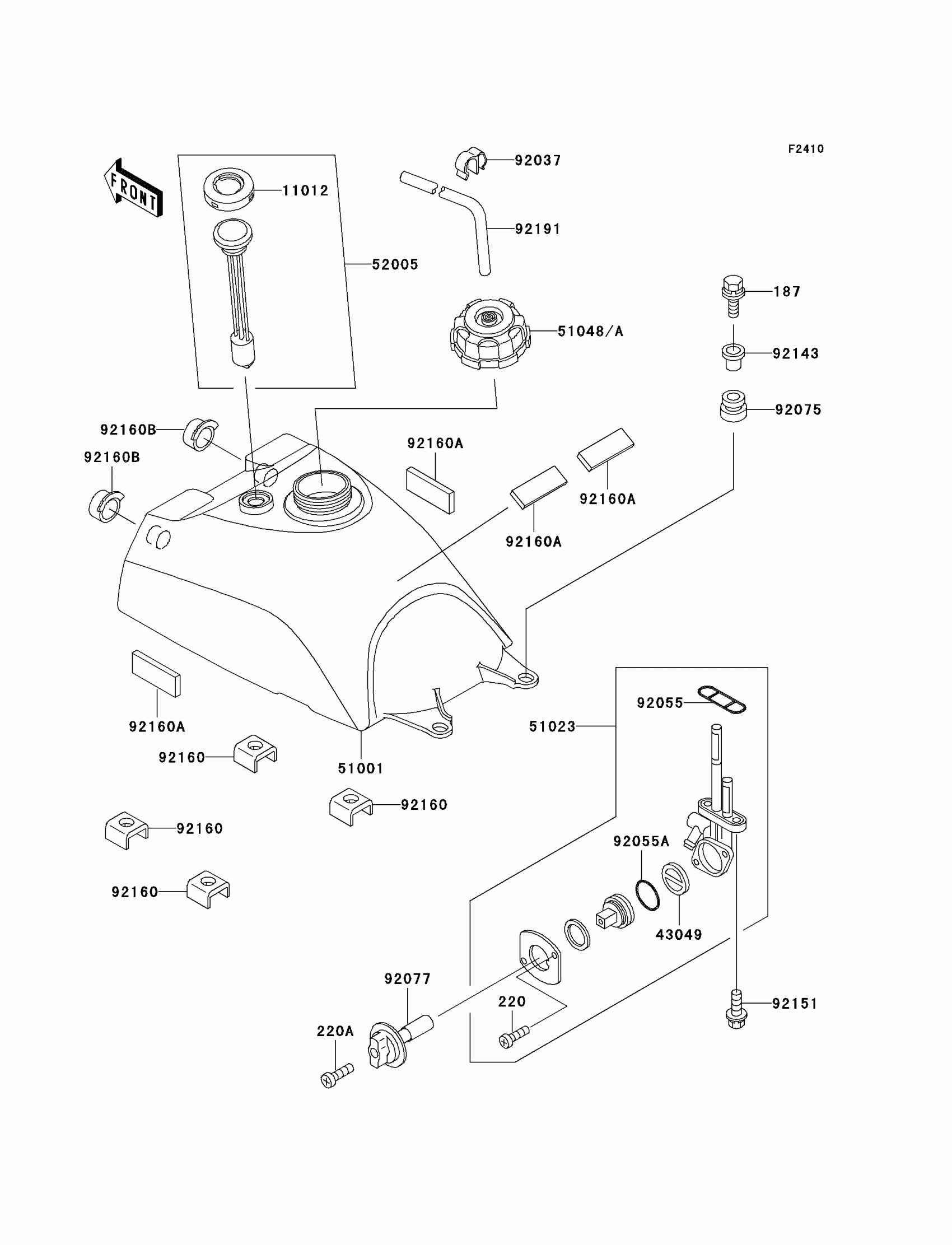

Kawasaki Prairie 400 Fuel Tank Diagram

Description

Price

187

BOLT-UPSET-WSP,6X35

187G0635

$1.18

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROS,4X25,BLACK

220C0425

$2.00

11012

CAP,FUEL GAUGE

11012-1627

$17.07

43049

PACKING,TAP VALVE

43049-1066

$7.26

51001

TANK-COMP-FUEL

51001-1500

Unavailable

51023

TAP-ASSY,FUEL

51023-1224

$147.45

51048

CAP-ASSY-TANK,FUEL

51048-1090

$63.66

52005

GAUGE,FUEL

52005-1121

Unavailable

92055

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92075

DAMPER,FUEL TANK

92075-1716

$10.68

92075A

DAMPER

92075-1787

$6.57

92077

KNOB,FUEL TAP

92077-1098

$19.63

92143

COLLAR,L=19.6

92143-1100

$7.79

92151

BOLT,6X14

92151-1198

$4.38

92160

DAMPER

92160-1773

$3.74

92160A

DAMPER

92160-1834

$5.78

92191

TUBE,5X9.4X450

92191-1107

Unavailable
