1998 Kawasaki Prairie 400 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1998 Kawasaki Prairie 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

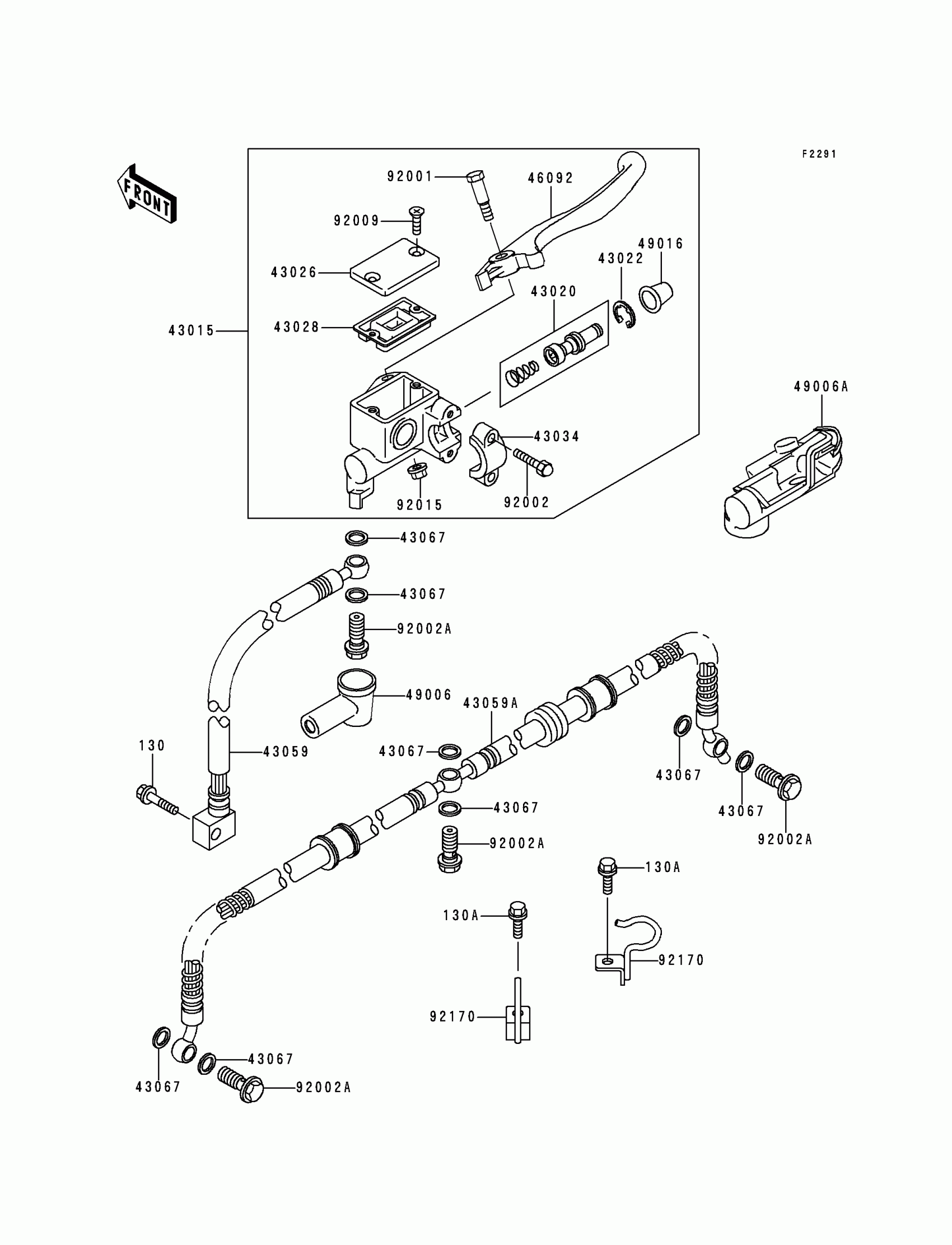

1998 Kawasaki Prairie 400 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25

130B0825

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1489

1
Out of stock

43020

PISTON-COMP-BRAKE,FR

43020-1056

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1074

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43059

HOSE-BRAKE,FR,UPP

43059-1926

1
Out of stock

43059A

HOSE-BRAKE,FR,LWR

43059-1927

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1136

1
Out of stock

49006

BOOT,DUST

49006-1040

1
Out of stock

49006A

BOOT,RH

49006-1198

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92001

BOLT,FRONT BRAKE LEVER

92001-1728

1
Out of stock

92002

BOLT

92002-1860

1
Out of stock

92002A

BOLT,OIL,L=23

92002-1888

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92170

CLAMP,HOSE

92170-1720

1
Out of stock
