1998 Kawasaki Prairie 400 Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 1998 Kawasaki Prairie 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

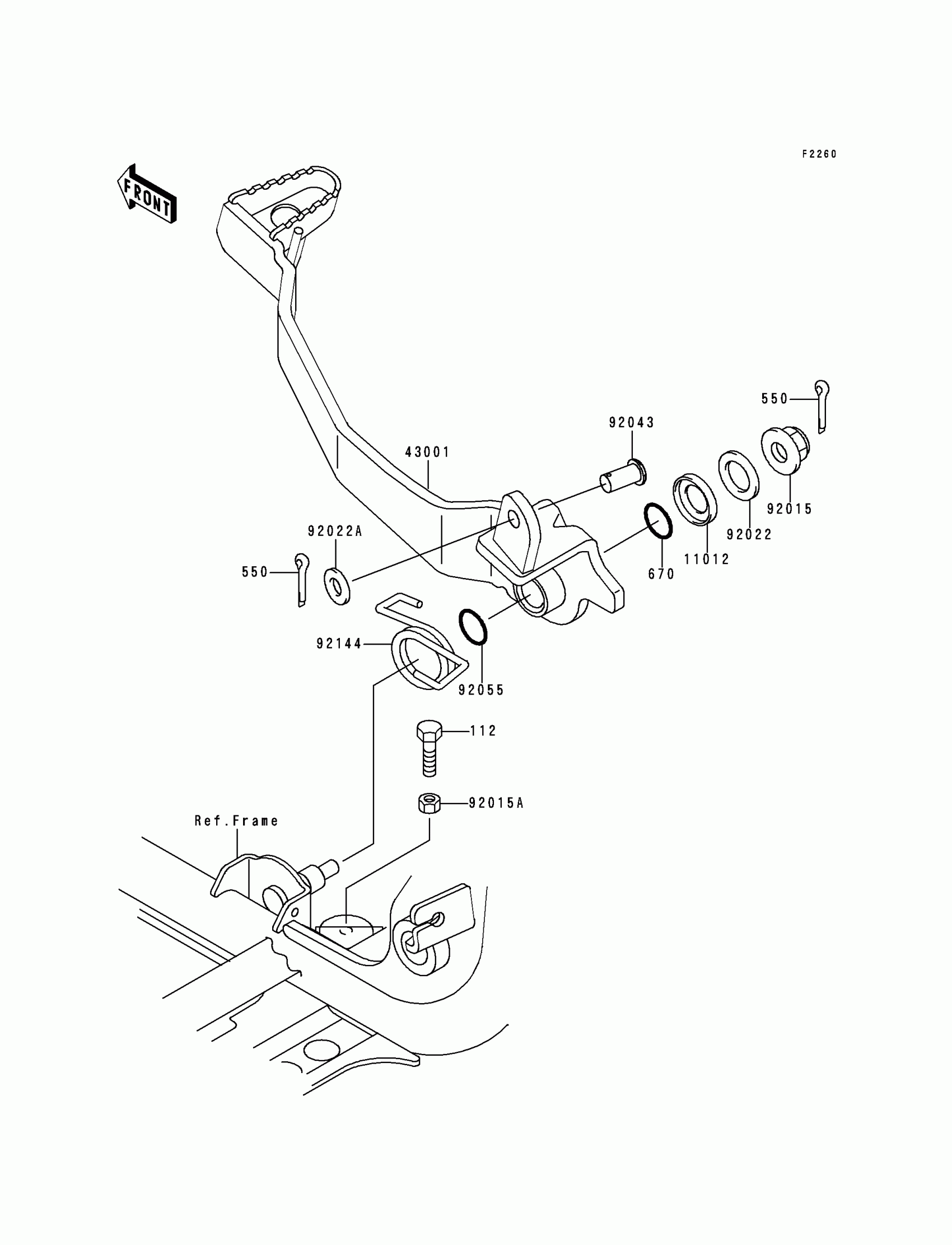

1998 Kawasaki Prairie 400 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X22

112D0622

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

670

O RING,18MM

670B2018

1
Out of stock

11012

CAP

11012-1516

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-1369

1
Out of stock

92015

NUT,LOCK,FLANGED,8MM

92015-1397

1
Out of stock

92015A

NUT,6MM

92015-1410

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92022A

WASHER,8.5X16X1.2

92022-1582

1
Out of stock

92043

PIN,8X16

92043-1013

1
Out of stock

92055

RING-O,13.5MM

92055-073

1
Out of stock

92144

SPRING,BRAKE PEDAL RETURN

92144-1928

1
Out of stock
