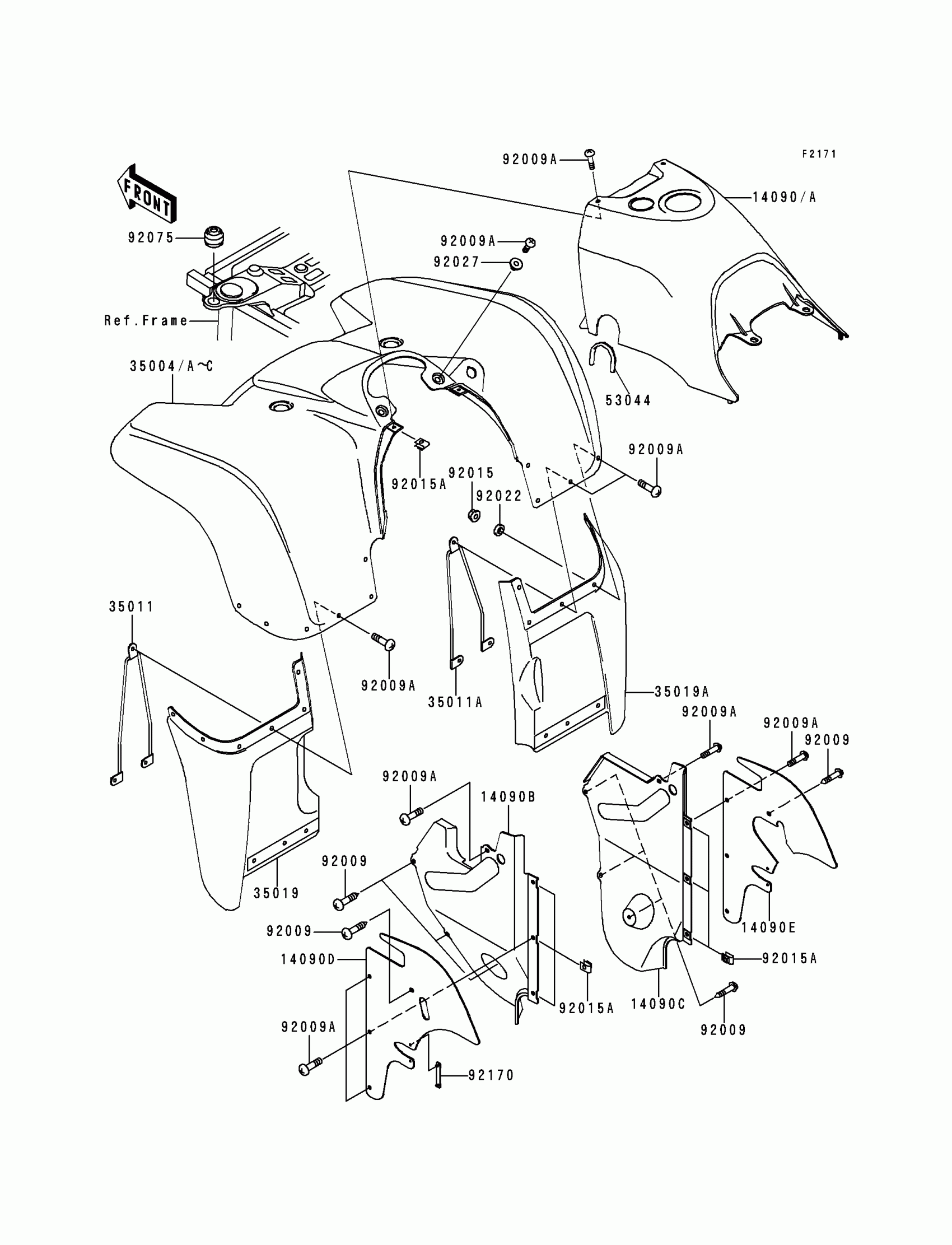

Kawasaki Prairie 400 Front Fender(s) Diagram
#
Description
Price
14090
COVER,FUEL TANK,H.GREEN
14090-1666-6A
$35.01
14090A
COVER,FUEL TANK,F.RED
14090-1666-6L
$35.01
14090B
COVER,INNER FLAP,LH
14090-1669
$111.45
14090C
COVER,INNER FLAP,RH
14090-1670
$101.11
14090D
COVER,INNER FLAP
14090-1725
$17.56
14090E
COVER,INNER FLAP
14090-1763
$21.30
35011
STAY,FRONT FLAP,LH
35011-1761
$30.25
35011A
STAY,FRONT FLAP,RH
35011-1784
$24.62
35019
FLAP,FR,LH,F.BLACK
35019-1338-6Z
$25.17
35019A
FLAP,FR,RH,F.BLACK
35019-1339-6Z
$25.17
53044
TRIM,L=150
53044-1303
$4.38
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X16
92009-1621
Unavailable
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015A
NUT,CLAMP,6MM
92015-1678
$5.52
92022
WASHER,6.5X16X1.0
92022-1093
$2.08
92027
COLLAR,L=4.7
92027-1964
$7.34
92075
DAMPER
92075-1744
$8.50
92170
CLAMP,HARNESS
92170-1015
Unavailable
35004
FENDER-FRONT,H.GREEN
35004-1336-6A
$323.32
35004A
FENDER-FRONT,F.RED
35004-1336-6L
$308.69
35004B
FENDER-FRONT,H.GREEN
35004-1344-6A
$323.32
35004C
FENDER-FRONT,F.RED
35004-1344-6L
$308.69
