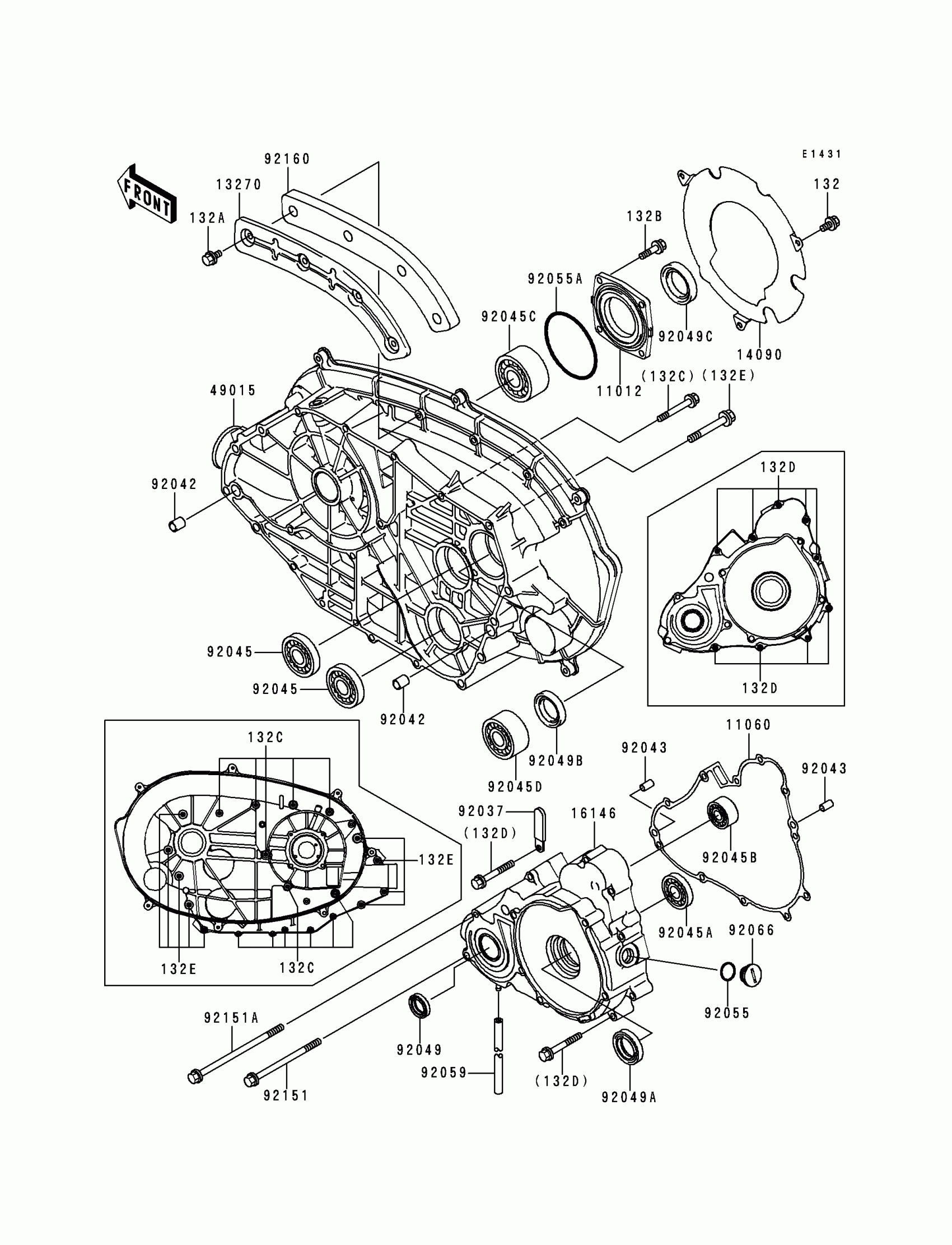

Kawasaki Prairie 400 Engine Cover(s) Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL
132G0612
$1.17
132A
BOLT-FLANGED-SMALL,6X12
132Y0612
$1.92
132B
BOLT-FLANGED-SMALL,6X20
132Y0620
$3.84
132C
BOLT-FLANGED-SMALL,6X35
132Y0635
$3.84
132D
BOLT-FLANGED-SMALL,6X40
132Y0640
$4.80
132E
BOLT-FLANGED-SMALL,8X40
132Y0840
$5.21
11012
CAP
11012-1982
Unavailable
11060
GASKET,GENERATOR COVER
11060-1729
$9.86
13270
PLATE
13270-1737
Unavailable
14090
COVER
14090-1761
Unavailable
16146
COVER-ASSY,GENERATOR
16146-1173
$159.51
49015
COVER-CRANKCASE
49015-1054
Unavailable
92037
CLAMP,L=45
92037-1539
$5.00
92042
PIN,DOWEL,12X14
92042-031
$6.57
92043
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,TMB304CCM
92045-1142
$40.43
92045A
BEARING-BALL
92045-1178
$30.43
92045B
BEARING-BALL,5201
92045-1327
Unavailable
92045C
BEARING-BALL,5207C2
92045-1328
$94.18
92045D
BEARING-BALL,5206
92045-1329
$69.61
92049
SEAL-OIL,SC12 28.555
92049-1259
$8.98
92049A
SEAL-OIL
92049-1386
$9.63
92049B
SEAL-OIL,TC30458
92049-1451
$14.60
92049C
SEAL-OIL,TC 35X50X8
92049-1452
$13.75
92055
RING-O,20X2
92055-1146
$8.58
92055A
RING-O,79.5MM
92055-1230
$8.12
92059
PIPE-FUEL
92059-080
$7.49
92066
PLUG,COVER
92066-1163
$14.76
92151
BOLT,6X85
92151-1140
$4.86
92151A
BOLT,6X110
92151-1141
$7.71
92160
DAMPER
92160-1793
Unavailable
