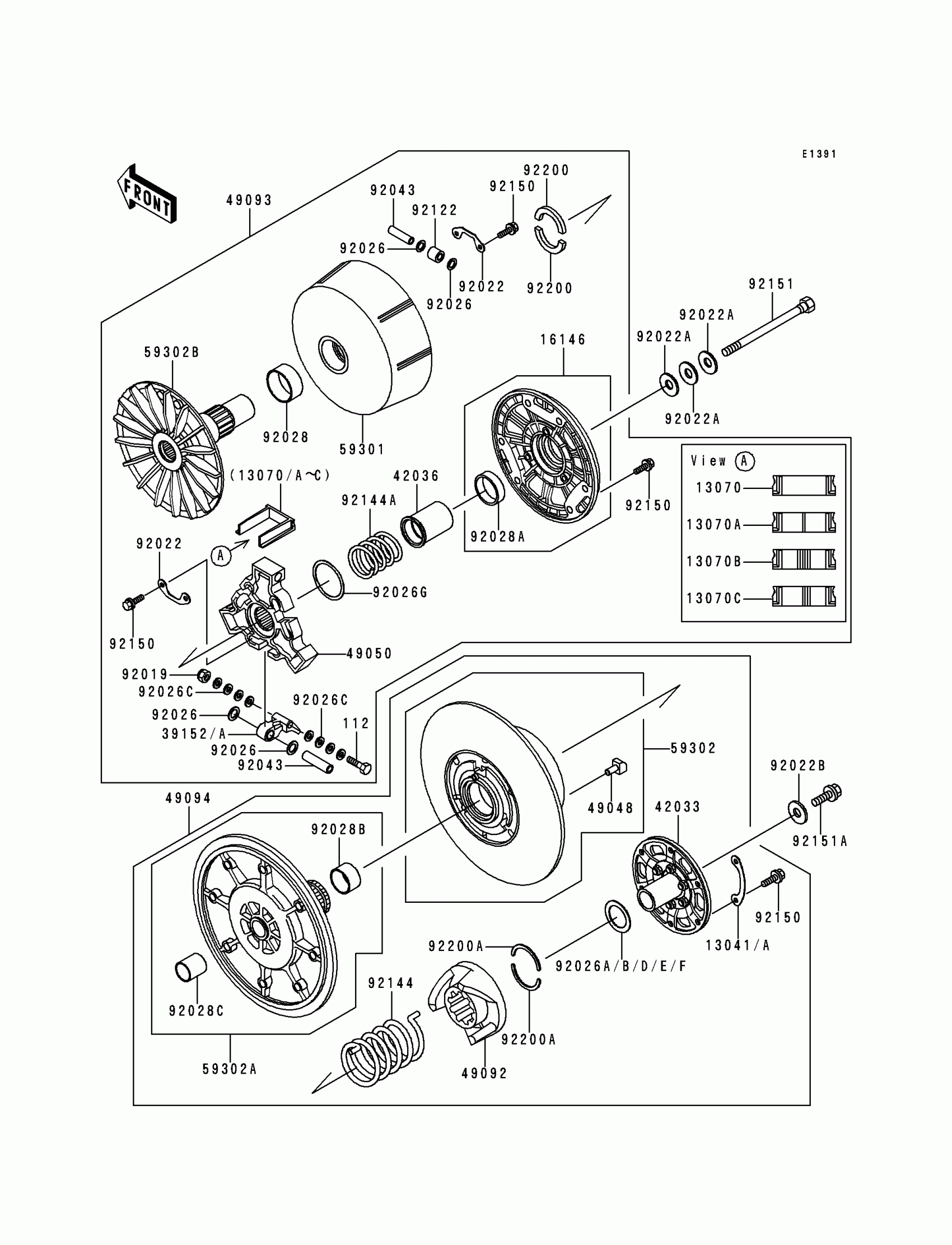

Kawasaki Prairie 400 Drive Converter Diagram
#
13041
BALANCER,T=0.8
13041-1084
Unavailable
13041A
BALANCER,T=1.0
13041-1085
Unavailable
13070
GUIDE,NONE
13070-1302
Unavailable
13070A
GUIDE,1 LINE
13070-1316
Unavailable
13070B
GUIDE,3 LINES
13070-1317
Unavailable
13070C
GUIDE,2 LINES
13070-1318
Unavailable
16146
COVER-ASSY
16146-1088
$182.15
39152
WEIGHT-RAMP
39152-1053
$65.20
39152A
WEIGHT-RAMP
39152-1060
$59.51
42033
COUPLING-ASSY
42033-1187
Unavailable
42036
SLEEVE
42036-1334
Unavailable
49048
SHOE
49048-1057
$5.86
49050
SPIDER
49050-1062
Unavailable
49092
RAMP,DRIVEN CONVERTER
49092-1058
Unavailable
49093
CONVERTER-ASSY-DRIVE
49093-1057
$1,065.58
49094
CONVERTER-ASSY-DRIVEN
49094-1059
$815.71
59301
SHEAVE-MOVABLE
59301-1058
$239.64
59302
SHEAVE-COMP,FIXED
59302-1064
Unavailable
59302A
SHEAVE-COMP,MOVABLE
59302-1065
$373.98
59302B
SHEAVE-COMP
59302-1066
Unavailable
92019
NUT,LOCK,6MM
92019-008
$4.26
92022
WASHER
92022-1899
$5.11
92022A
WASHER,SPECIAL CONICAL
92022-1901
$6.57
92022B
WASHER,12.5X32X3.2
92022-1982
$4.44
92026
SPACER,10X16X0.8
92026-1304
$4.31
92026A
SPACER,32.3X46X1.0
92026-1485
Unavailable
92026B
SPACER,32.3X46X1.6
92026-1486
Unavailable
92026C
SPACER
92026-1491
$3.07
92026D
SPACER,32.3X46X1.2
92026-1492
Unavailable
92026E
SPACER,32.3X46X0.8
92026-1494
Unavailable
92026F
SPACER,32.3X46X0.6
92026-1495
Unavailable
92026G
SPACER,48.7X57.5X1.0
92026-1498
Unavailable
92028
BUSHING,43X47X20
92028-1508
$15.50
92028A
BUSHING,40X44X12
92028-1511
$12.12
92028B
BUSHING,32X36X20
92028-1513
$14.63
92028C
BUSHING,25X28X30
92028-1514
$15.82
92043
PIN,6.5X10X38
92043-1370
$10.53
92122
ROLLER
92122-1152
$32.94
112
BOLT-UPSET
112G0630
$1.36
92144
SPRING,DRIVEN CONVERTER
92144-1977
Unavailable
92144A
SPRING,DRIVE CONVERTER
92144-1978
Unavailable
92150
BOLT,6X20
92150-1014
$4.11
92151
BOLT,CONVERTER,DRIVE
92151-1119
Unavailable
92151A
BOLT,CONVERTER,DRIVE
92151-1120
Unavailable
92200
WASHER
92200-1295
Unavailable
92200A
WASHER
92200-1342
$4.21
