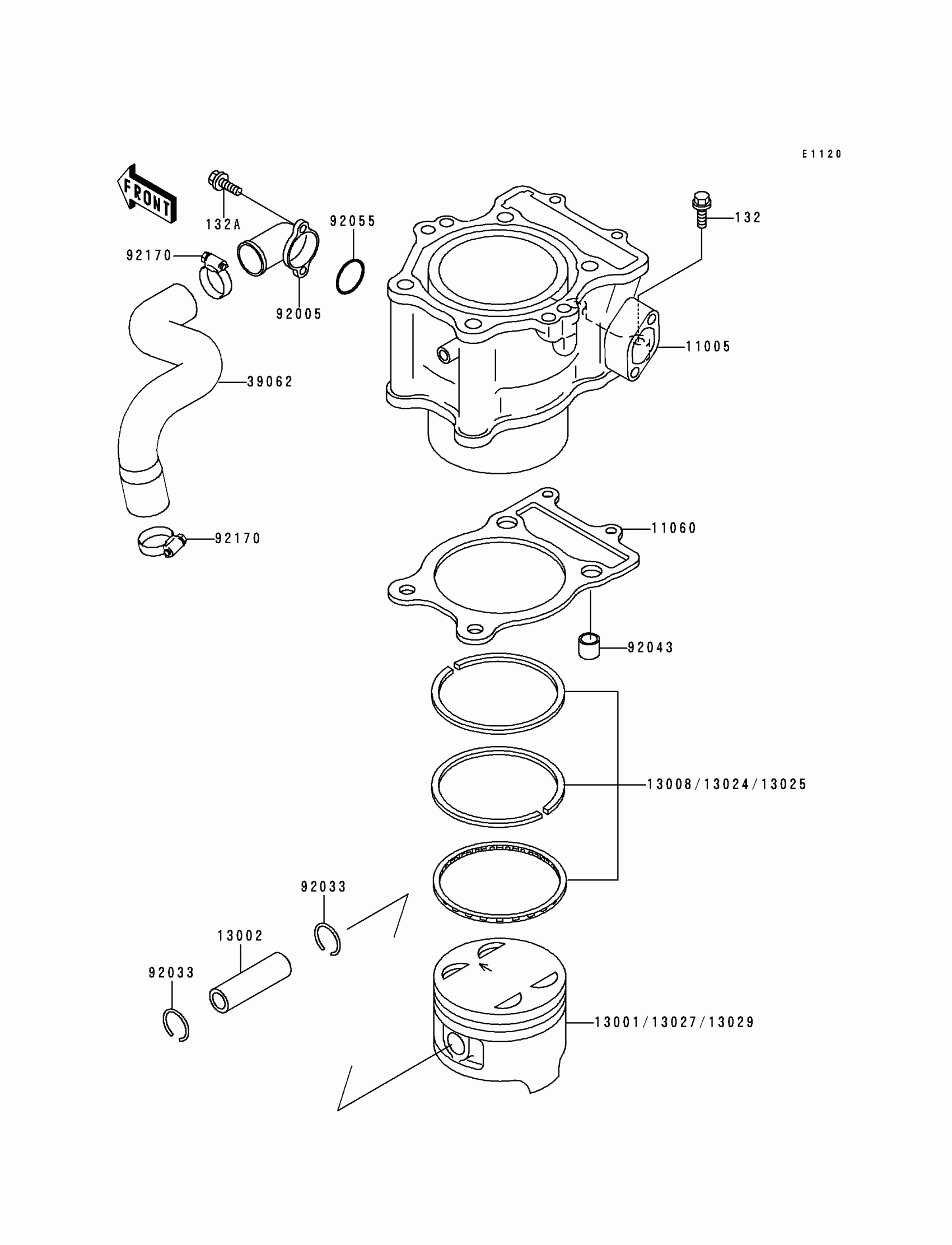

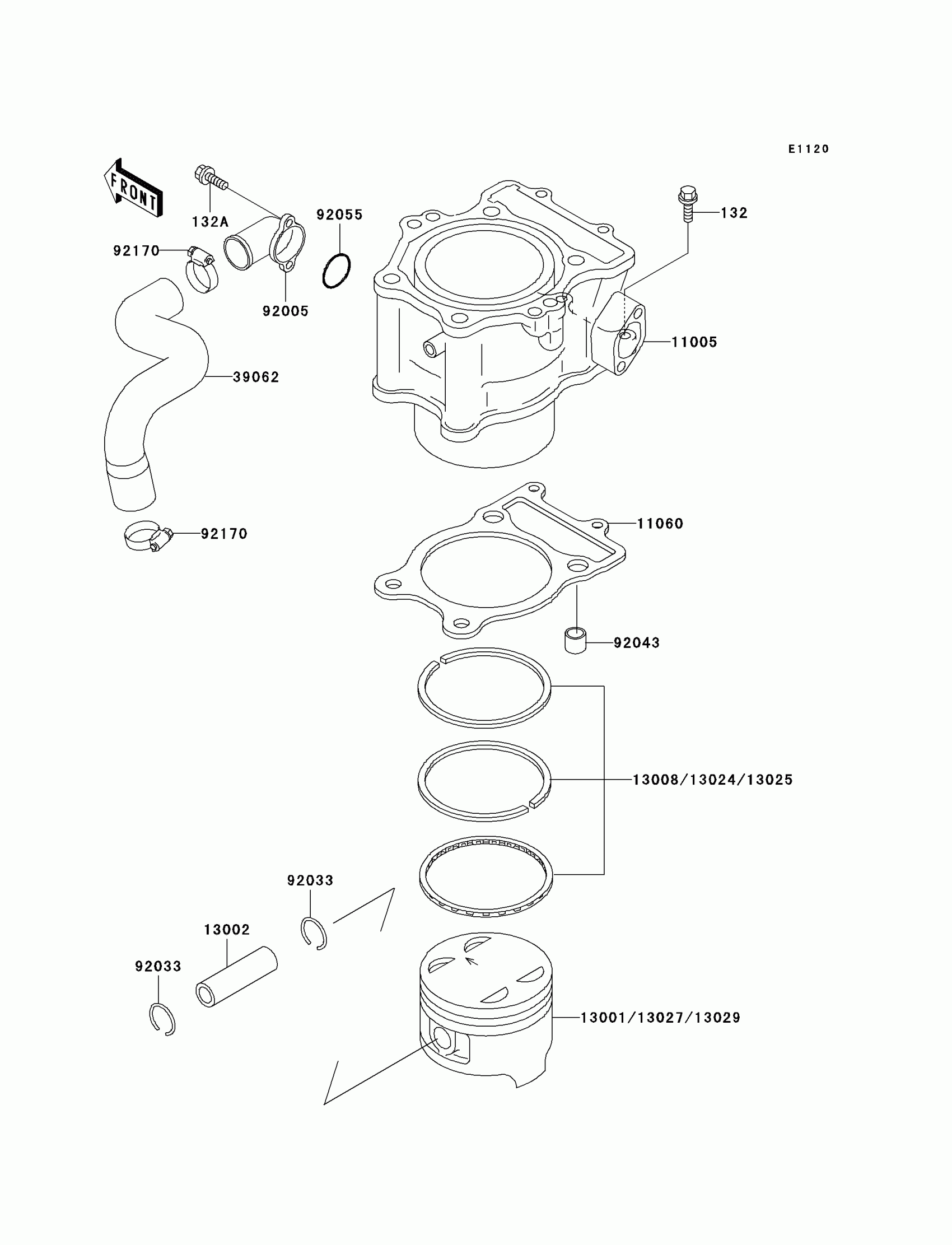

Kawasaki Prairie 400 Cylinder/Piston(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X16

132J0616

$2.33

11005

CYLINDER-ENGINE

11005-1673

$620.37

11060

GASKET,CYLINDER BASE

11060-1205

$18.05

13001

PISTON-ENGINE,STD

13001-1456

Unavailable

13002

PIN-PISTON

13002-1056

$28.79

13008

RING-SET-PISTON,STD

13008-1142

$89.45

13024

RING-SET-PISTON LL,O/S 1.00

13024-1090

$87.41

13025

RING-SET-PISTON L,O/S 0.50

13025-1114

$89.45

13027

PISTON-ENGINE LL,O/S 1.00

13027-1185

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1232

Unavailable

39062

HOSE-COOLING

39062-1674

Unavailable

92005

FITTING,CYLINDER

92005-1145

$32.95

92033

RING-SNAP

92033-1188

$3.89

92043

PIN,11X14X12.3

92043-1266

$1.08

92055

RING-O,27.7X2.4

92055-091

$6.22

92170

CLAMP

92170-1497

$16.83
