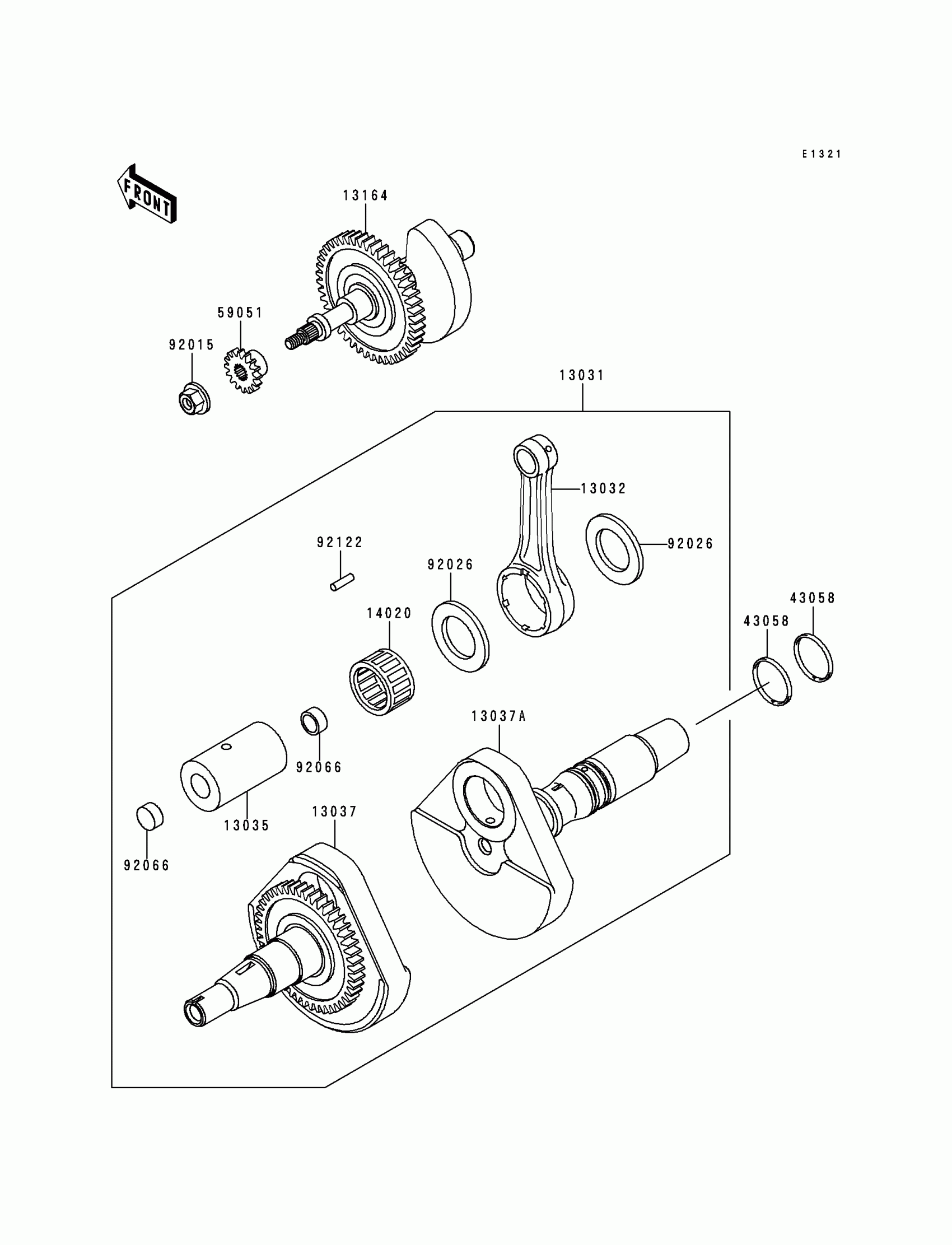

Kawasaki Prairie 400 Crankshaft Diagram

Description

Price

13031

CRANKSHAFT-COMP

13031-1418

Unavailable

13032

ROD-CONNECTING

13032-1180

$122.72

13035

PIN-CRANK

13035-1078

$93.64

13037

CRANKSHAFT,LH

13037-1554

Unavailable

13037A

CRANKSHAFT,RH

13037-1555

Unavailable

13164

BALANCER-COMP

13164-1009

Unavailable

14020

RETAINER

14020-1094

$56.23

43058

RING

43058-1086

$32.11

59051

GEAR-SPUR,16T

59051-1344

Unavailable

92015

NUT,FLANGED,LOCK,8MM

92015-1696

$4.67

92026

SPACER,38X58X1.5

92026-1204

$17.09

92066

PLUG

92066-1154

$4.65

92122

ROLLER,B6

92122-1163

$3.09
