2002 Kawasaki Prairie 400 Converter Cover Diagram

← All diagrams

Find the part on the Converter Cover diagram for your 2002 Kawasaki Prairie 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

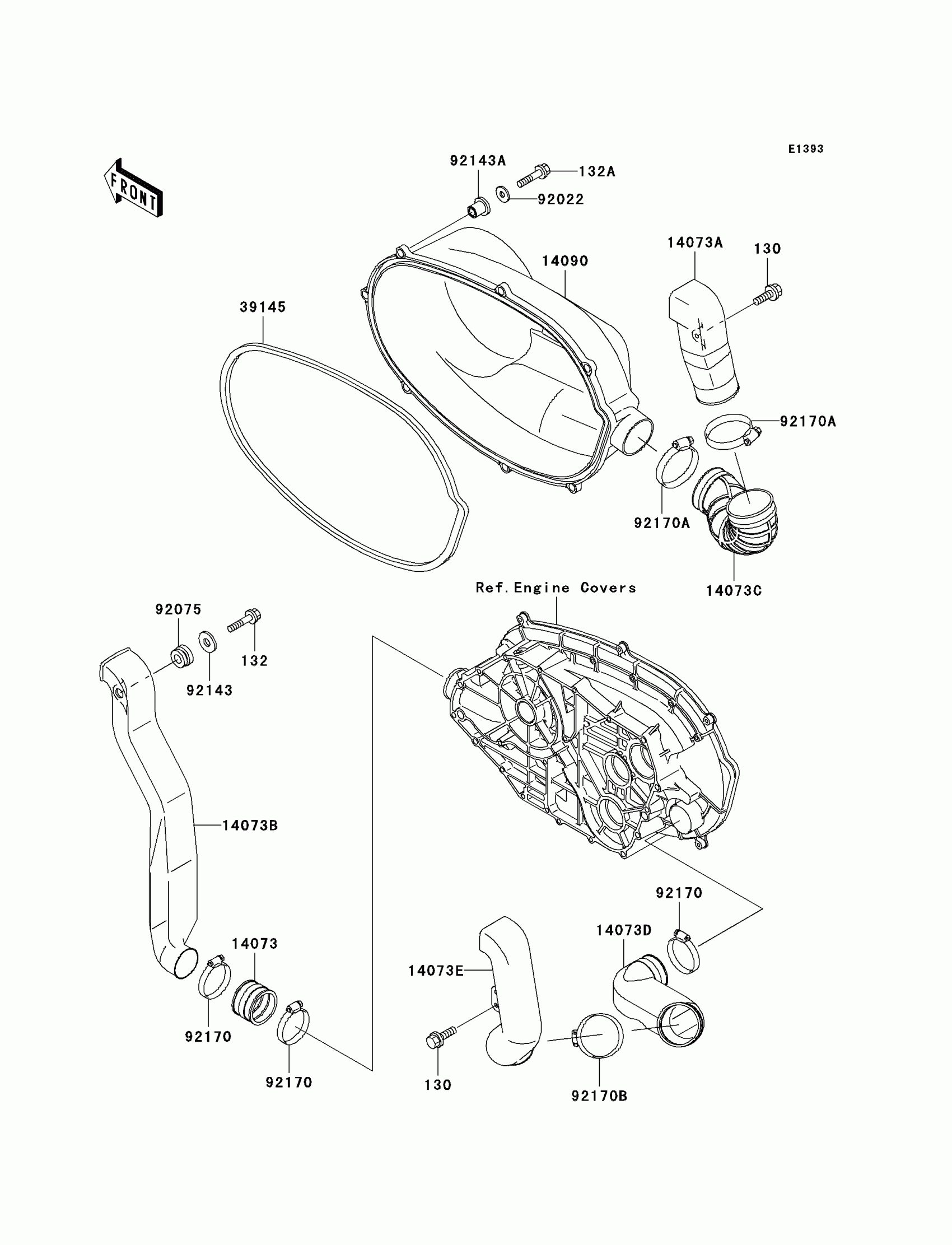

2002 Kawasaki Prairie 400 Converter Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

14073

DUCT

14073-1324

1

$8.45

In stock

14073A

DUCT,SNORKEL,EX

14073-1678

1

$13.36

In stock

14073B

DUCT,SNORKEL,IN

14073-1679

1

$23.95

In stock

14073C

DUCT,SNORKEL,EX

14073-1680

1

$24.97

In stock

14073D

DUCT,SNORKEL,EX

14073-1683

1

$48.91

In stock

14073E

DUCT,SNORKEL,EX

14073-1684

1

$21.88

In stock

14090

COVER,BELT CONVERTER

14090-1961

1
Out of stock

39145

1

$10.73

In stock

92022

WASHER,7X18X1.2

92022-1545

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92143A

COLLAR

92143-1888

1
Out of stock

92170

CLAMP

92170-1674

1

$9.32

In stock

92170A

CLAMP

92170-1763

1

$4.51

In stock

92170B

CLAMP

92170-1764

1

$9.09

In stock
