1998 Kawasaki Prairie 400 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1998 Kawasaki Prairie 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

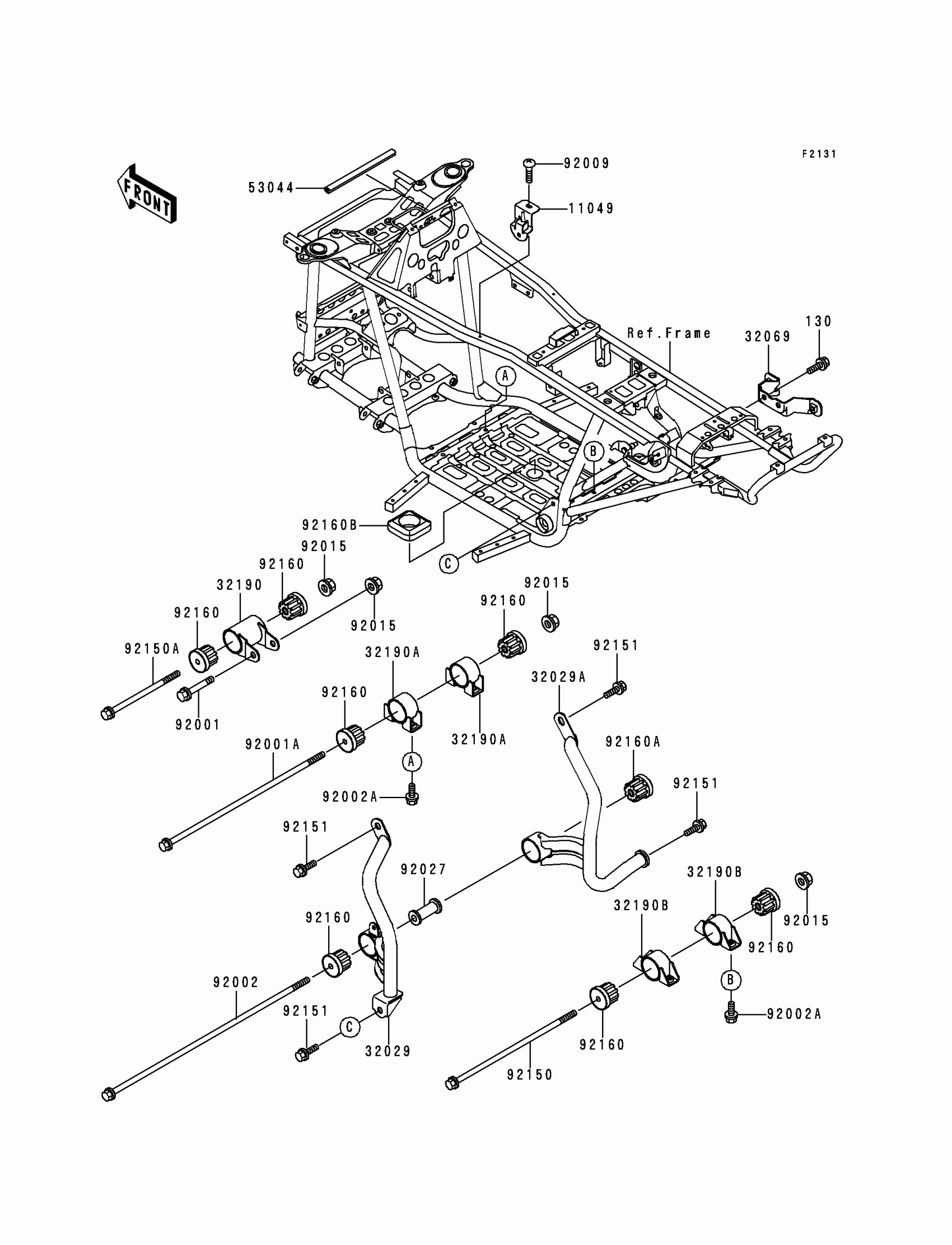

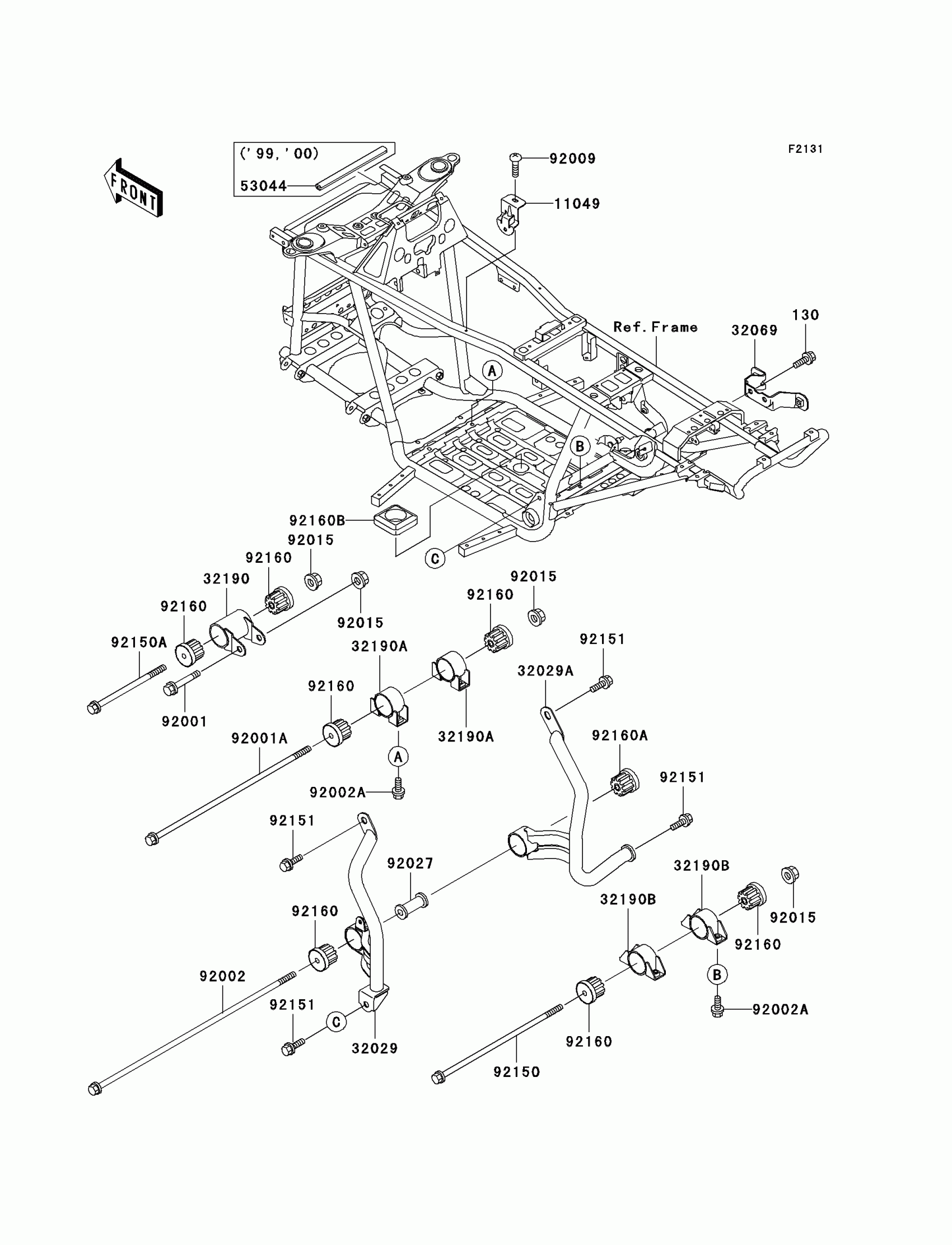

1998 Kawasaki Prairie 400 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X14

130J0814

1
Out of stock

11049

BRACKET

11049-1738

1

$4.95

In stock

32029

BRACKET-ENGINE,RR,UPP,LH

32029-1970

1
Out of stock

32029A

BRACKET-ENGINE,RR,UPP,RH

32029-1971

1
Out of stock

32069

BRACKET-MUFFLER

32069-1485

1
Out of stock

32190

BRACKET-ENGINE,HEAD

32190-1078

1
Out of stock

32190A

1

$38.64

In stock

32190B

1

$38.64

In stock

53044

TRIM,L=160

53044-1306

1
Out of stock

92001

BOLT,FLANGED,10X70

92001-1600

1

$8.23

In stock

92001A

1

$22.63

In stock

92002

BOLT,FLANGED,10X230

92002-1531

1

$19.69

In stock

92002A

BOLT,FLANGED,8X16

92002-1645

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1727

1

$3.85

In stock

92027

COLLAR,L=54

92027-275

1

$17.20

In stock

92150

1

$15.85

In stock

92150A

BOLT,FLANGED,10X100

92150-1731

1

$16.98

In stock

92151

BOLT,FLANGED,10X16

92151-1137

1

$2.58

In stock

92160

DAMPER,ENGINE MOUNT

92160-1692

1

$36.55

In stock

92160A

DAMPER,ENGINE MOUNT

92160-1759

1

$34.36

In stock

92160B

DAMPER

92160-1772

1

$10.41

In stock
